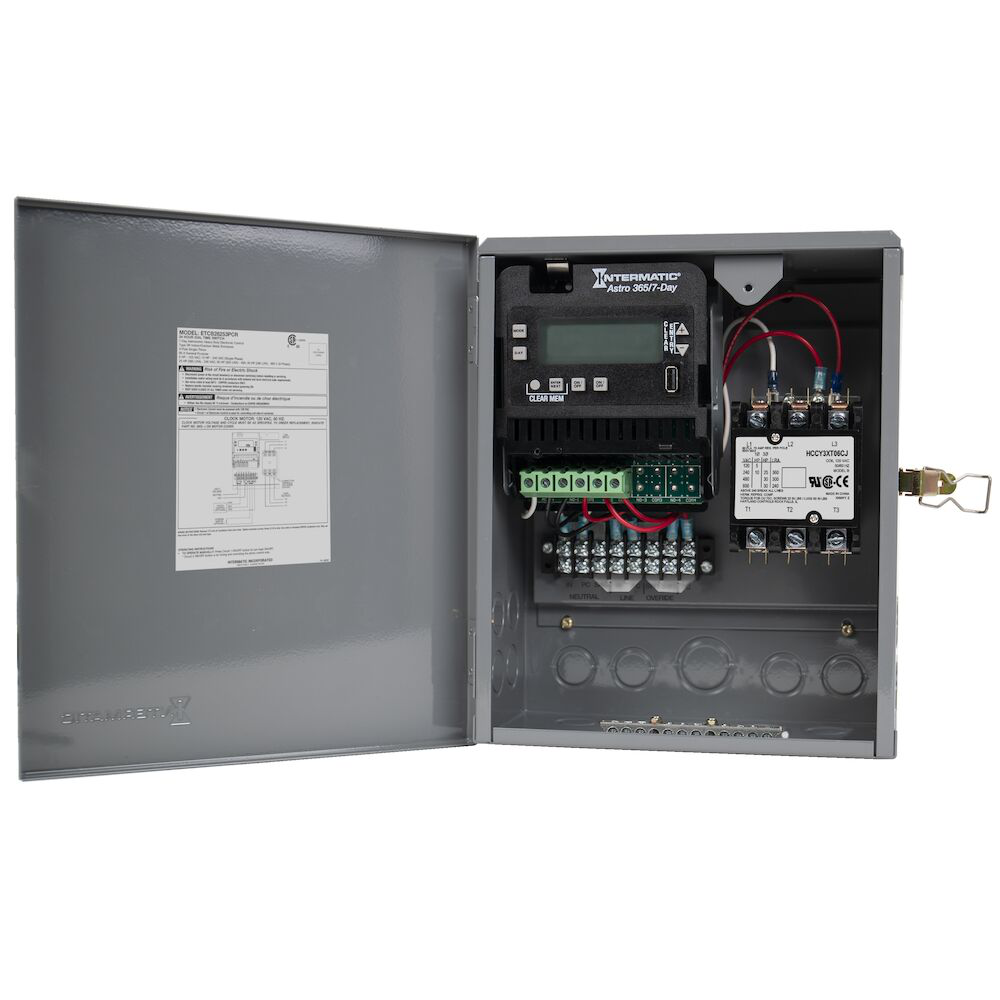

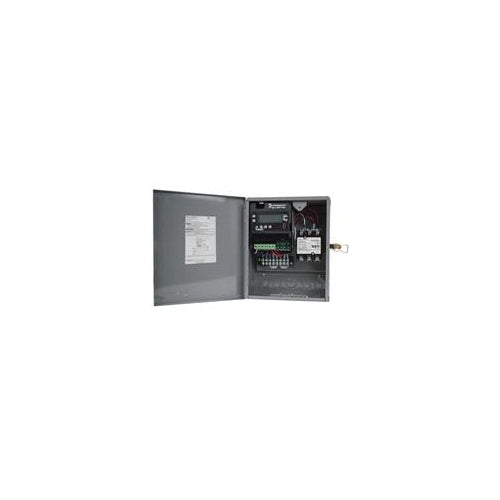

Intermatic ETCB28253PCR Electronic All-Purpose Contractor Box 1 min to Indefinite Setting 120 to 480 VAC

Product Description

The Intermatic ETCB28253PCR Electronic All-Purpose Contractor Box provides a versatile solution for various applications. This product operates with a voltage range from 120 to 480 VAC and features a built-in 60 A contactor suitable for robust loads. It includes an astronomic timer that supports 7-day scheduling along with holiday exceptions.

• Supports 1 minute to indefinite timing settings.
• Offers USB connectivity for schedule transfers and backups.
• Includes multiple input options for overrides and surge protection devices.

Product Highlights

Designed for easy installation, the ETCB28253PCR is suitable for various applications such as lighting control and motor management. Its robust construction includes a NEMA 3 enclosure, making it fit for outdoor use.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: ETCB28253PCR

Technical Specifications

• Voltage Rating: 120 to 480 VAC
• Horsepower: 30 hp
• Contact Form: SPST
• Enclosure Type: NEMA 3
• Dimensions: 10 in W x 4-3/4 in D x 11-3/4 in H
• Operating Temperature: -40 to 104 degrees F
• Time Setting: 1 min to Indefinite
• Action: 3 x SPST
