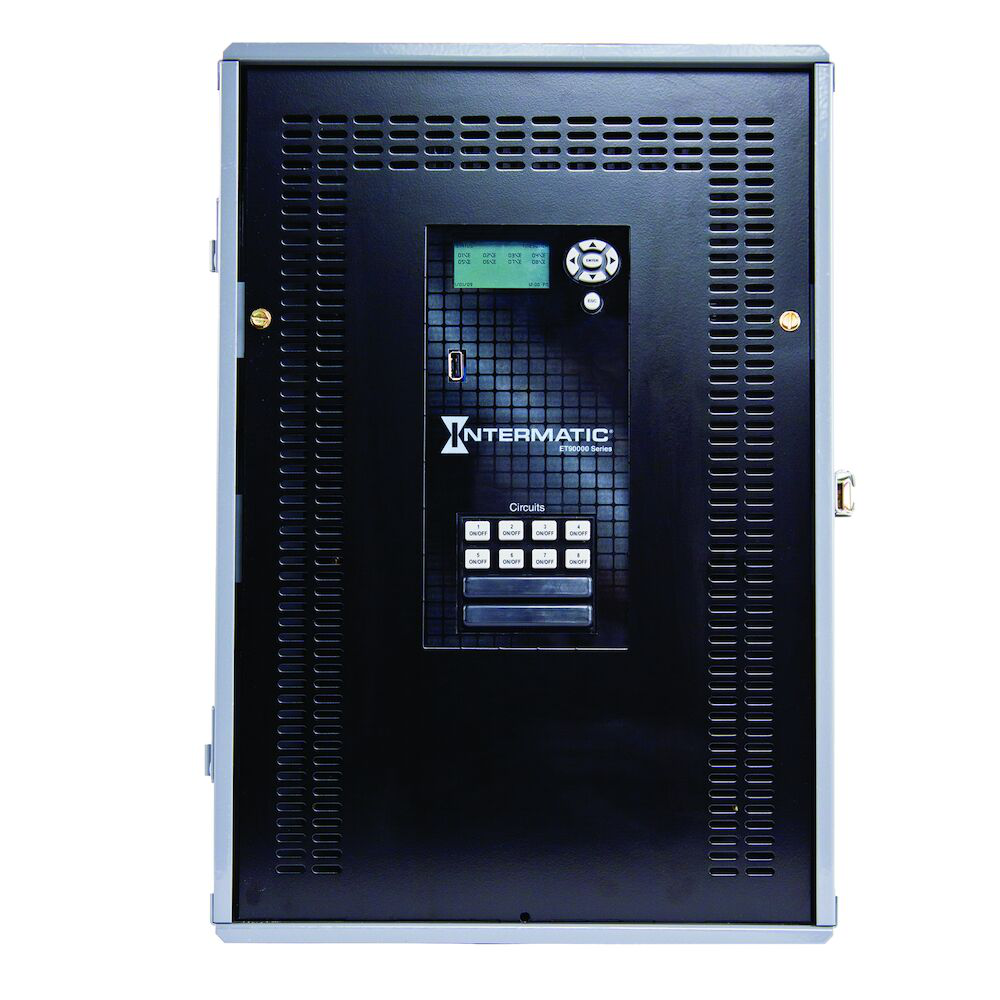

Intermatic ET90815CR NEMA 3R Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp SPDT Astronomic Time Switch with Ethernet

Product Description

Intermatic ET90815CR is a NEMA 3R steel case time switch designed for applications requiring energy control over an entire year. It operates at input voltages between one hundred twenty to two hundred seventy-seven VAC and supports an operational frequency of fifty to sixty Hertz. This model can handle loads up to thirty amps. It is equipped with both USB and Ethernet capabilities for remote updates. The device is ideal for controlling lighting, HVACR, and general-purpose applications.

• Automated input voltage selection across a wide range
• Capable of over two thousand programmable events
• Uses a supercapacitor to maintain time without replacement batteries

Product Highlights

This timer features an intuitive scheduling system and real-time control via PC and mobile applications. It meets California Title 24 requirements and allows for manual overrides and holiday schedules.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: ET90815CR

Technical Specifications

• Height: 17.9 inches
• Width: 12.7 inches
• Depth: 5.4 inches
• Enclosure Type: NEMA 3R Steel
• Voltage Input: 120-277 VAC
• Amperage Rating: 30 A
• Operating Temperature: -40 to 120 degrees F
• Connections: Wire Lead
• Number of Circuits: 8
