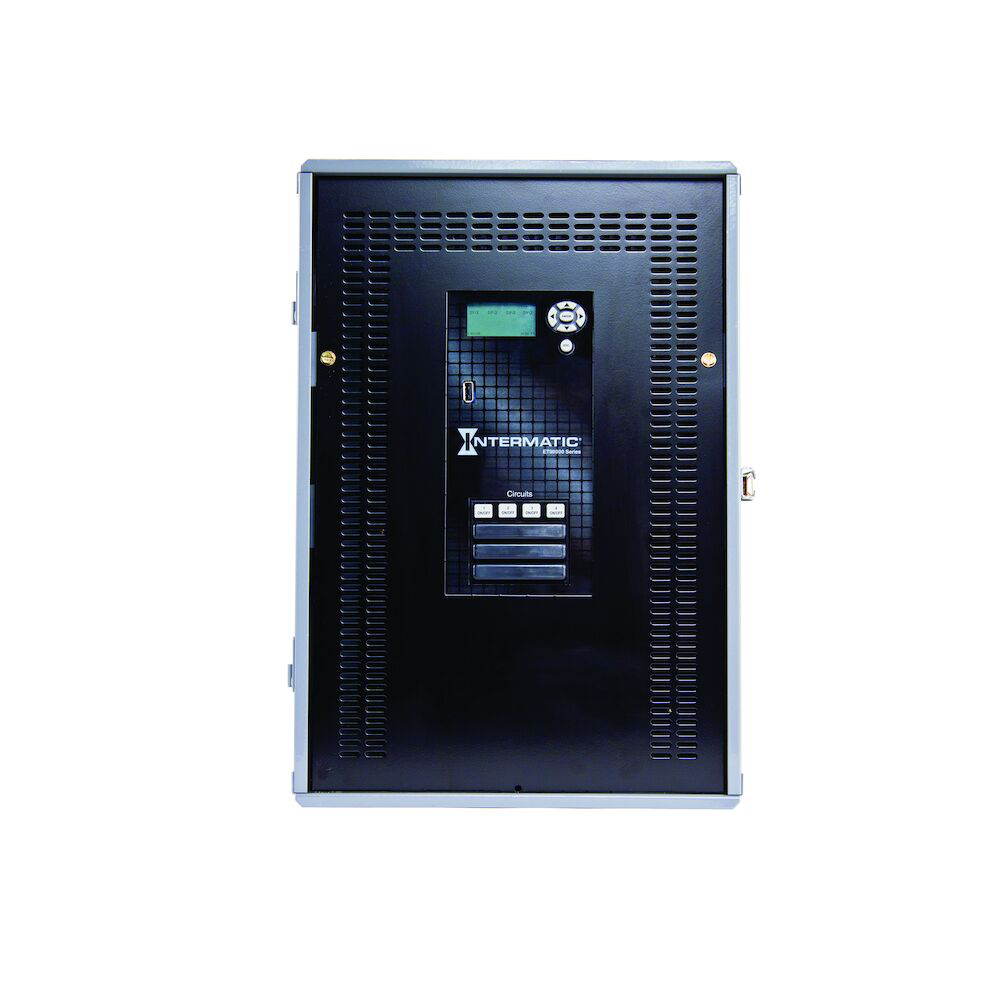

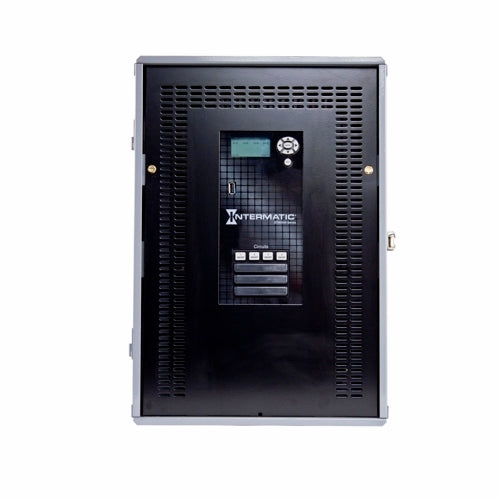

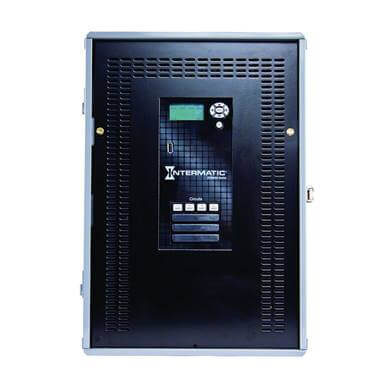

Intermatic ET90415CR NEMA 3R Steel Case 365 Day 120 to 277 VAC 60 Hz 30 Amp SPDT Astronomic Time Switch with Ethernet

INTERMATIC
Brand: INTERMATIC
SKU: ET90415CR
Availability: In Stock

Ships same day if ordered by 12 pm
$1,797.27
$1,797.27
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Intermatic ET90415CR is an astronomic time switch designed for high-performance scheduling. This product operates at a voltage range of 120 to 277 VAC, making it suitable for various applications including lighting and HVAC control. It features 365-day programming, allowing for flexibility in holiday and seasonal scheduling.

  • Compatible with 120 to 277 VAC input voltage
  • Supports up to 4000 events and holiday schedules
  • 100-hour supercapacitor maintains programming during power outages

Product Highlights

This time switch provides reliable automatic operation with real-time scheduling capabilities. The intuitive interface simplifies programming and management of your time settings, ensuring exact timing control.

Product Information

Standard Information

  • Manufacturer: Intermatic
  • Specifications: NEMA 3R Steel Enclosure
Technical Specifications
Voltage Rating:
120 - 277 Volts
Amperage:
30 Amps
Contact Type:
SPDT
Size:
Seventeen point nine inches height, twelve point seven inches width, five point four inches depth
Environmental Rating:
Type 3R
Operating Temperature:
-40 to 120 degrees Fahrenheit
Country of Origin:
Mexico
