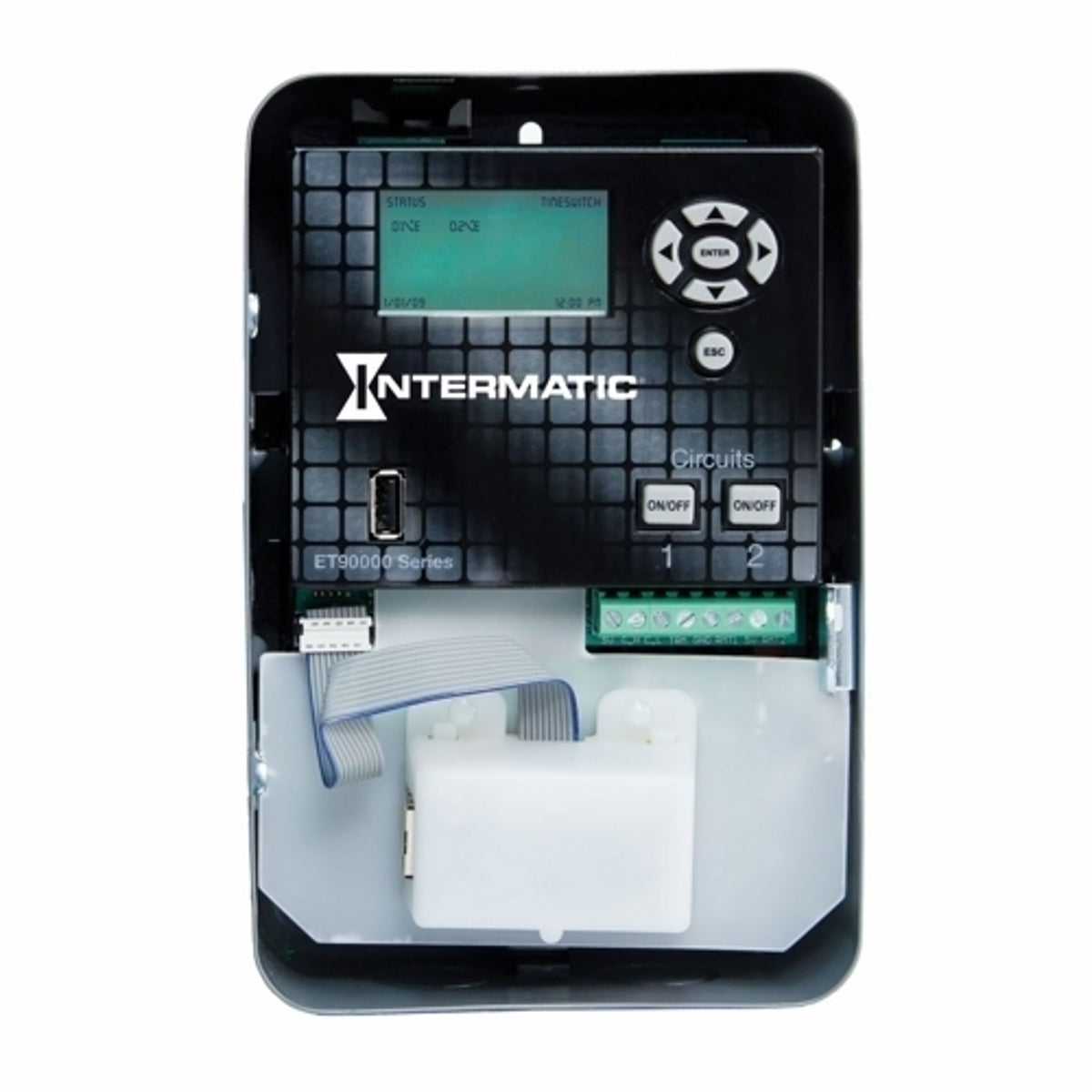

Intermatic ET90215CE 2 CKT Time SW/Indoor W/Eth

Product Description

The Intermatic ET90215CE combines powerful and intuitive scheduling with maintenance-free convenience. The PC App and Mobile App provide real-time remote control. USB connection and Ethernet capabilities enable in-field updates. It features automatic input voltage selection from 120 to 277 VAC, 50/60 Hz.

• Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
• Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
• 30 A rated contacts

Product Highlights

This electronic timer is designed for indoor lighting, machinery, pump, and outdoor lighting control, offering timing and on/off scheduling.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: ET90215CE
• Country of Origin: Mexico

Technical Specifications

• Type: Astronomic Electronic
• Brand: Intermatic
• Depth: 3 Inch
• Width: 5.1 in
• Action: SPDT
• Height: 7.8 Inch
• Voltage: 120-277 VAC
• Amperage: 20 Amp
• Standard: CCSAus Certified,CULus Listed,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
• Enclosure: Type 1 Steel
• Frequency: 50/60 Hz
• Switch Type: 2xSPDT
• Applications: Indoor Lighting Control,Machinery & Pump Controls,Outdoor Lighting Control,Timing/Scheduling ON/OFF
• Input Voltage: 208-277 V
• Mounting Type: Wall Mount
• TC Connection: Wire Lead
• Contact Rating: 30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General Purpose and Resistive NC), 20 AMP @ 120 - 277 VAC (Ballast NO), 3 AMP @ 120 - 277 VAC (Ballast NC), 5 AMP @ 12 - 240 VAC (Tungsten NO Only)
• Connection Type: Wire Lead
• Number of Poles: 1 Pole
• Power Consumption: 16 W
• Number of Circuits: 2
• Contact Configuration: 1 NO/1 NC
• Operating Temperature: 120 degrees F
• Max Operating Temperature: 104 degrees F
• Min Operating Temperature: -40 degrees C
• Catalog Number: ET90215CE
• Manufacturer: Intermatic
• Amperage Rating: 20 A
• Application: General Purpose, Lighting, HVACR
• Mounting: Wall
• Special Features: Features: Automatically Detects Input Voltages between 120 and 277 VAC, Up to 4000 Events Plus Holidays Scheduling, Ethernet Capable for Upgrading Firmware and Networking Time Switches and PC Tools, Easy-to-Follow on-Screen Menu, Password Protection, Firmware Upgradeable, Schedule Review Mode, Saved Activity Log, 3 Year Warranty
• Item Type: Astronomic Electronic
• Timing Range: 1 S - 365 DAYS
• Voltage Rating: 120 - 277
• Horsepower: 1, 2 hp
• Pulse Duration: 1 s to 23 hr 59 min
• Series: ET90000
• Temperature Rating: -40 to 120 deg F
• Time Setting: 1 sec to 365 days
• Electrical Connections: Wire Lead
• Enclosure Type: Indoor type 1 metal
• Number of Pulse Events: 4000
• Operation Mode: 365 days
• Clock Motor Voltage: 120 - 277
• Frequency Rating: 50/60
• Timer Switch Type: Astronomic Electronic
