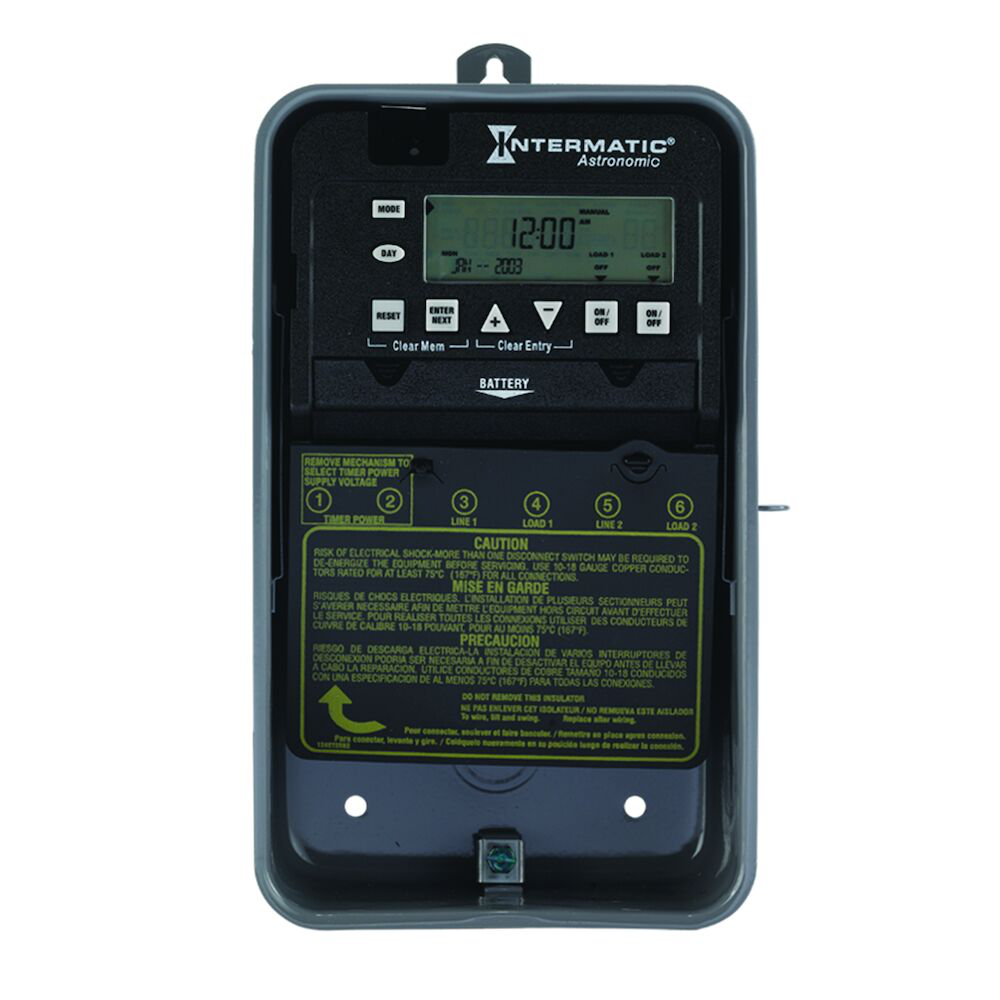

Intermatic ET8215C 24/7 Electronic Astronomic Time Switch, 2-Circuit, SPST, 120-277V 30A

Product Description

The Intermatic ET8215C is a 24/7 electronic astronomic time switch designed to replace basic mechanical time switches. This timer allows up-to-the-minute programming with battery backup for power loss. It supports up to fourteen ON and OFF events per circuit and corrects for daylight saving time automatically without user intervention. The switch supports 120 to 277 volts with two circuits and an SPST action, making it versatile for indoor lighting, HVAC systems, and electric motor control.

• Supports 14 ON/OFF events per circuit
• Automatic daylight saving time adjustment
• Battery backup for reliable operation

Product Highlights

This time switch is suitable for various applications, including interior and exterior lighting, electric pumps, and industrial control.

Product Information

Standard Information

• Catalog Number: ET8215C
• Manufacturer: Intermatic

Technical Specifications

• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 30 A
• Enclosure Type: NEMA 1 Steel
• Height: 7.875 inches
• Width: 5.125 inches
• Depth: 3.437 inches
• Contact Configuration: 1 NO
• Operating Temperature: -40 to 155 degrees F
• Number of Poles: 1
• Frequency: 50/60 Hz
