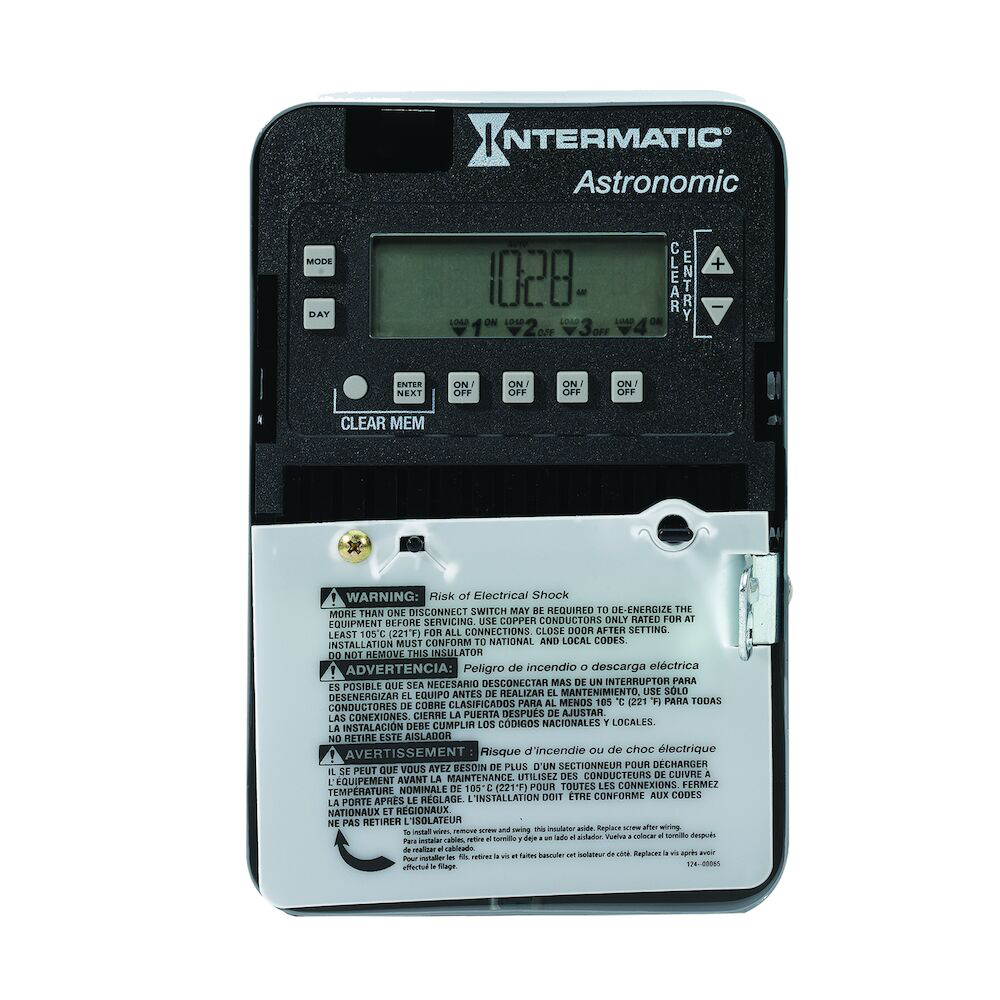

Intermatic ET2845C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp DPST Astronomic Electronic Control

Product Description

The Intermatic ET2845C is a NEMA 1 steel case electronic time switch designed for 120 to 277 VAC power sources. This unit is ideal for managing schedules in various applications, including lighting control, machinery, and pump operations. The ET2000 series offers a user-friendly interface allowing for precise scheduling with up to ninety-six ON/OFF events and fifty holiday blocks for tailored operation.

• Easy interface with minute-by-minute scheduling
• Includes a 100-hour backup through a supercapacitor
• Configurable outputs to manage different voltage applications

Product Highlights

This electronic control is suitable for both industrial and commercial applications, seamlessly managing power loads while ensuring operational reliability.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ET2845C
• Voltage: 120 to 277 VAC
• Amperage Rating: 30 Amps
• Type: Astronomic Electronic Control
• Number of Poles: 1
• Enclosure: Type 1 Steel
• Dimensions: 7-7/8 inches H x 5-1/8 inches W x 3-7/16 inches D
• Temperature Rating: -40 degrees C to 155 degrees F
• Standards: UL Rating, Title 20/24 Compliance
• Operating Frequency: 50/60 Hz
