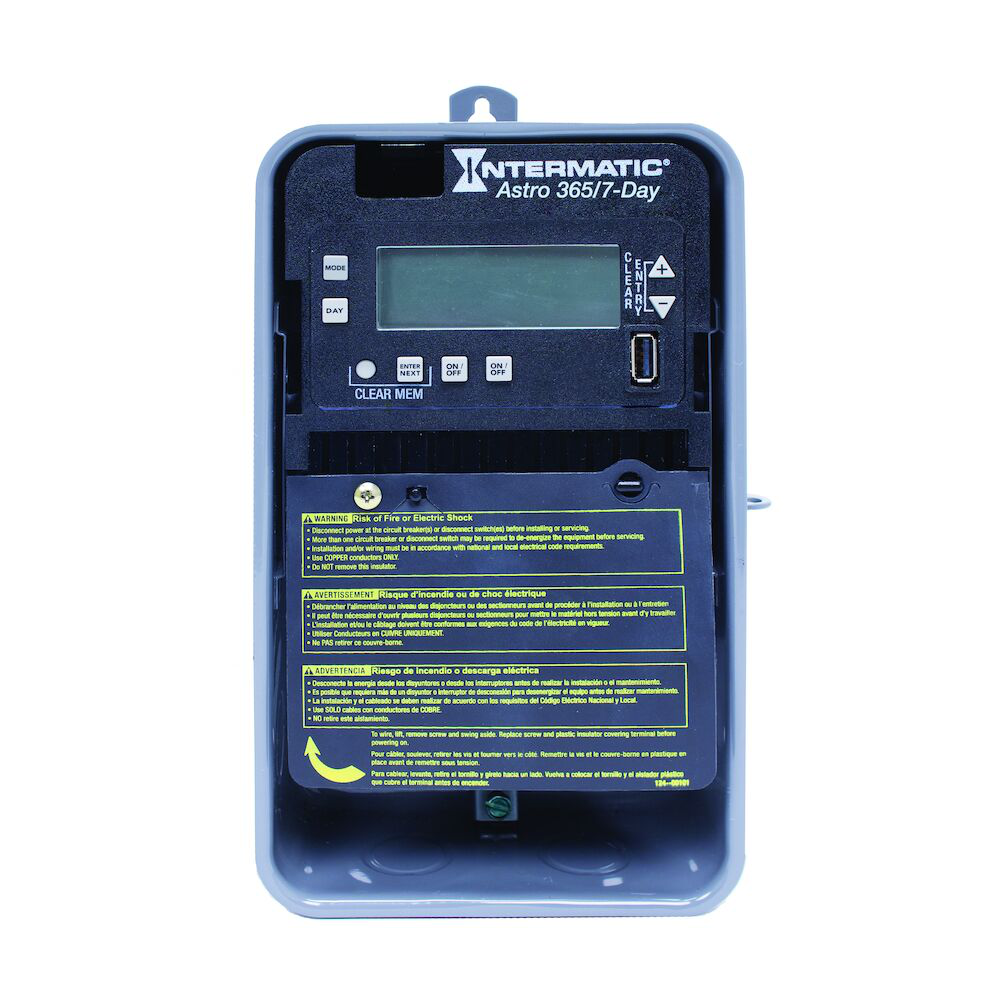

Intermatic ET2825CR T/S-ELEC,2CH,3R STEEL ENCL

Product Description

The Intermatic ET2825CR is an electronic time switch designed for various applications. This series allows for precise scheduling up to six days and twenty-three hours, integrating up to ninety-six ON/OFF events. The unit supports dual channels and operates on a voltage range of one hundred twenty to two hundred seventy-seven volts AC.

• Supports up to fifty holiday blocks for easy scheduling.
• Equipped with a hundred-hour supercapacitor to provide backup functionality without batteries.
• Features a user-friendly interface for quick setup and operation.

Product Highlights

The Intermatic ET2825CR is designed for both interior and exterior uses, making it ideal for lighting control in various environments.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: ET2825CR

Technical Specifications

• Input Voltage: 120 to 277 VAC
• Amperage Rating: 30 A
• Number of Poles: 1
• Dimensions: 10-1/8 inches H x 6-1/2 inches W x 3-5/8 inches D
• Enclosure Type: NEMA 3R Steel
• Temperature Rating: -40 to 155 degrees F
• Power Consumption: 5 W
• Warranty Length: 2 years
