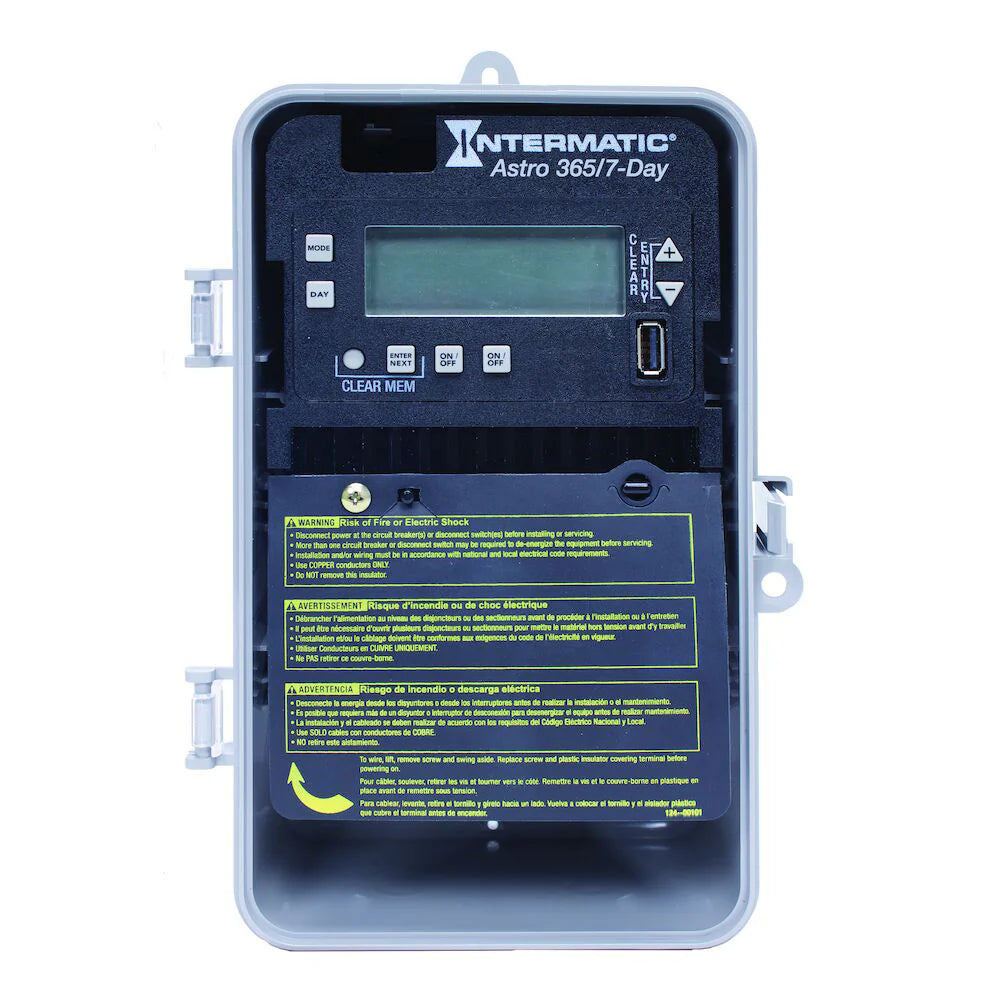

Intermatic ET2825CP T/S-ELEC,2CH,3R PLASTIC ENCL

Product Description

The Intermatic ET2825CP is an electronic time switch designed for efficient scheduling in various applications. This time switch operates on voltage from one hundred twenty to two hundred seventy-seven volts alternating current and supports amperage of up to thirty amps. It features a plastic enclosure rated NEMA 3R, making it suitable for both indoor and outdoor use.

• Operates on 120-277 VAC
• Configurable outputs and a 100-hour backup
• Supports up to 96 ON/OFF events

Product Highlights

The ET2825CP allows precise scheduling with 50 holiday blocks and helps manage lighting, motors, and pumps.

Product Information

Standard Information

• Brand: Intermatic
• MPN: ET2825CP

Technical Specifications

• Voltage: 120-277 VAC
• Amperage: 30 Amp
• Contact Configuration: 1 NO
• Dimensions: 10 in H x 6.5 in W x 4 in D
• Enclosure Type: NEMA 3R Plastic
• Operating Temperature: -40 to 155 degrees F
• Number of Circuits: 2
• Number of Poles: 1
• Frequency: 50/60 Hz
