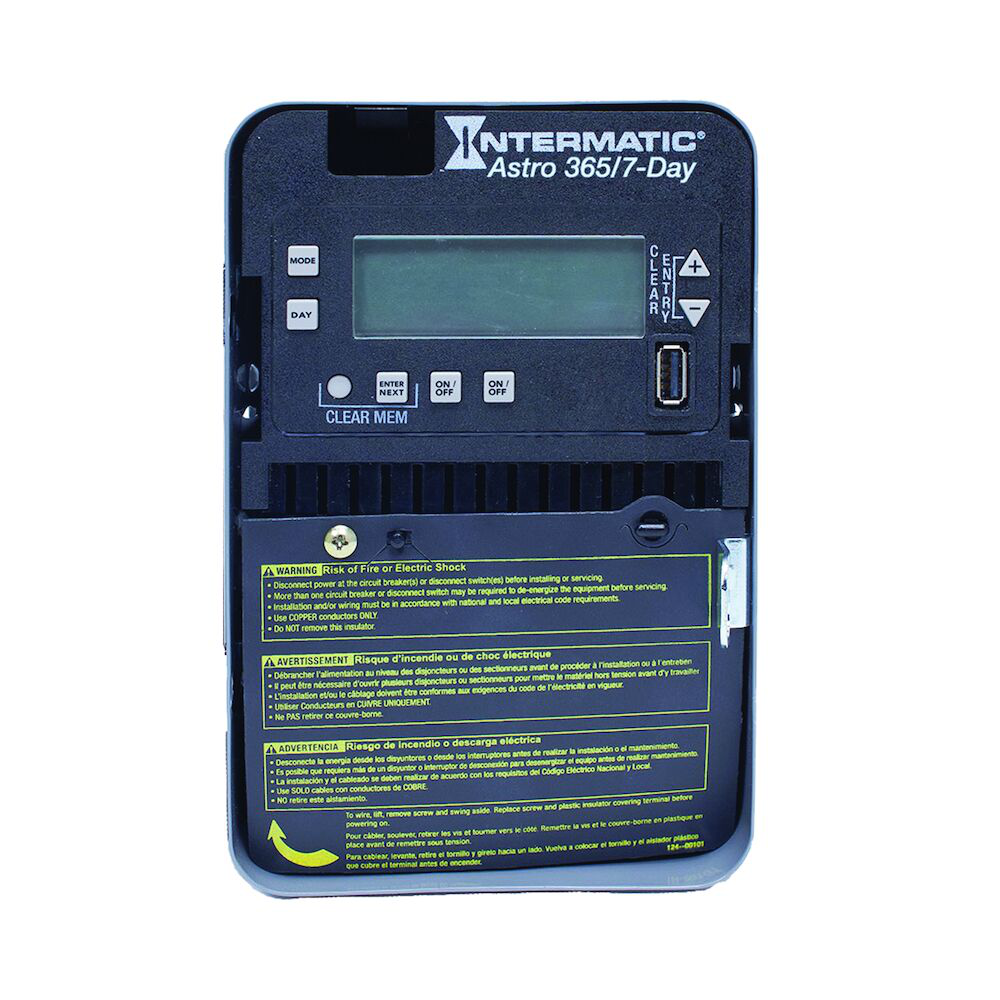

Intermatic ET2825C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp DPST Astronomic Electronic Control

Product Description

The Intermatic ET2825C is a NEMA 1 electronic time switch designed for controlling electrical loads efficiently. This device functions at voltages from one hundred twenty to two hundred seventy-seven VAC and is capable of managing up to thirty amps of current. The ET2825C series includes multiple scheduling features suited for various applications.

• Supports up to ninety-six on/off events.
• Includes fifty holiday blocks for flexible scheduling.
• Offers added functionality with a USB port for easy schedule transfers.

Product Highlights

The ET2825C is ideal for a range of applications, including outdoor and indoor lighting control, security lighting, and machinery controls. It incorporates advanced scheduling capabilities with a backup that functions for one hundred hours, eliminating the need for batteries.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ET2825C
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 30 Amp
• Mounting Type: Wall Mount
• Enclosure Type: NEMA 1 Steel
• Operation Mode: 6 days 23 hr 59 min
• Dimensions: 7-7/8 in H x 5-1/8 in W x 3-7/16 in D
• Frequency: 50/60 Hz
• Number of Circuits: 2
