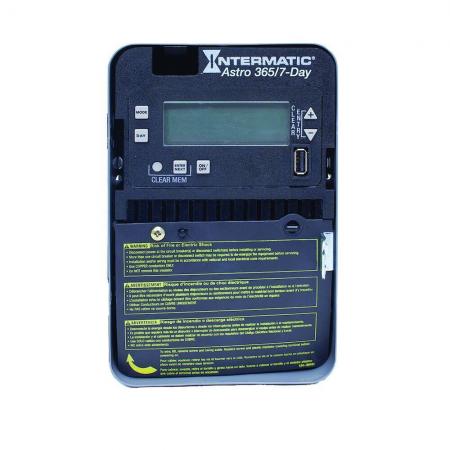

Intermatic ET2815C Electronic Timer SPDT 120-277VAC Astro 7/365 Days 20A

Product Description

The Intermatic ET2815C Electronic Timer, designed for precise time management, supports a broad voltage range from 120 to 277 VAC, operates with a 20 Amp switching capacity, and offers programmable control for 7/365 days, specifically tailored for mechanically demanding environments. It features SPDT contacts with a single pole and includes an astrological timing function.

• Programmable for every day of the year, accommodating custom schedules with ease.
• Switches supports up to 20 Amps with a power range from 120 to 277VAC.
• Flexible installation options with durable, indoor type 1 metal enclosure.

Product Highlights

Equipped with a 100-hour backup supercapacitor, eliminating the need for batteries, the ET2815C is prepared for continuous operation without interruption. It's also capable of handling up to 96 on/off events daily, making it exceptionally versatile for scheduling. Applications include outdoor lighting controls, security systems, and general electrical timing.

Product Information

Standard Information

• Brand: Intermatic
• MPN: ET2815C

Technical Specifications

• Operating Temperature: -40 to 155 degrees Fahrenheit
• Power Configuration: Single pole, double throw (SPDT)
• Voltage Rating: 120 to 277 VAC
• Contact Capacity: 20 Amp at 120/240 VAC
• Enclosure Type: Indoor type 1 metal
• Wire Size: Suitable for 18 to 10 AWG
• Mounting Type: Wall
• Dimensions: 7-7/8 inches height by 5-1/8 inches width by 3.437 inches depth
