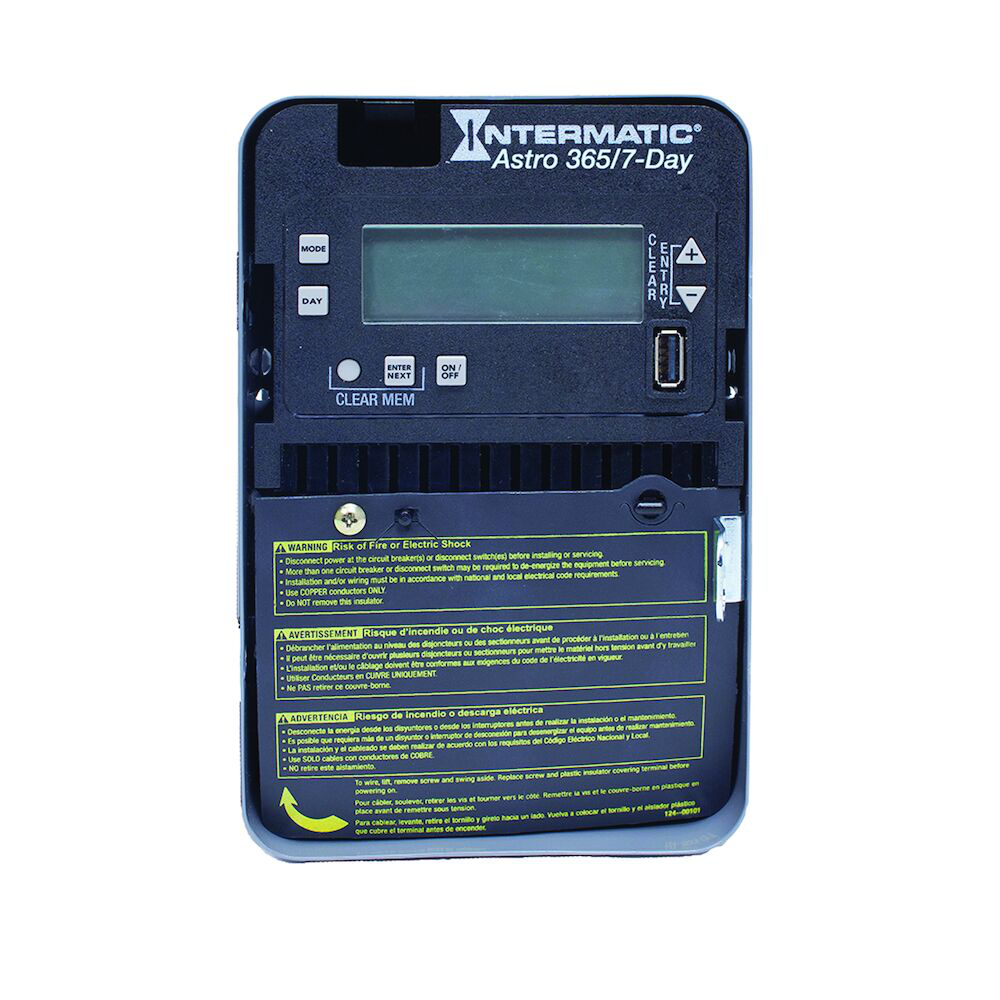

Intermatic ET2805C NEMA 1 Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp SPST Astronomic Electronic Control

Product Description

The Intermatic ET2805C is a NEMA 1 electronic control designed for efficient scheduling. This device operates within a voltage range of one hundred twenty to two hundred seventy-seven AC, accommodating various applications including outdoor security and interior lighting. The unit supports up to ninety-six ON/OFF events and features provisions for fifty holiday blocks. This makes it suitable for both standard and demanding usage requirements.

• Supports automatic voltage selection from 120 to 277 VAC, 60 Hz.
• Features a 100-hour supercapacitor eliminating battery reliance.
• Includes USB port for easy schedule management and transfer.

Product Highlights

The ET2805C allows for versatile scheduling options and is compliant with UL standards. Its construction from durable steel ensures longevity in various environments.

Product Information

Standard Information

• Catalog Number: ET2805C
• Manufacturer: Intermatic

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 30 A
• Contact Configuration: 1 NO
• Operation Mode: 6 days 23 hr 59 min
• Dimensions: 7-7/8 in H x 5-1/8 in W x 3-7/16 in D
• Enclosure Type: NEMA 1
• Temperature Rating: -40 to 155 deg F
• Wire Connections: 18 to 10 AWG
• Special Features: Zero-crossing technology, non-volatile EEPROM memory
• Warranty Length: 2 yr
