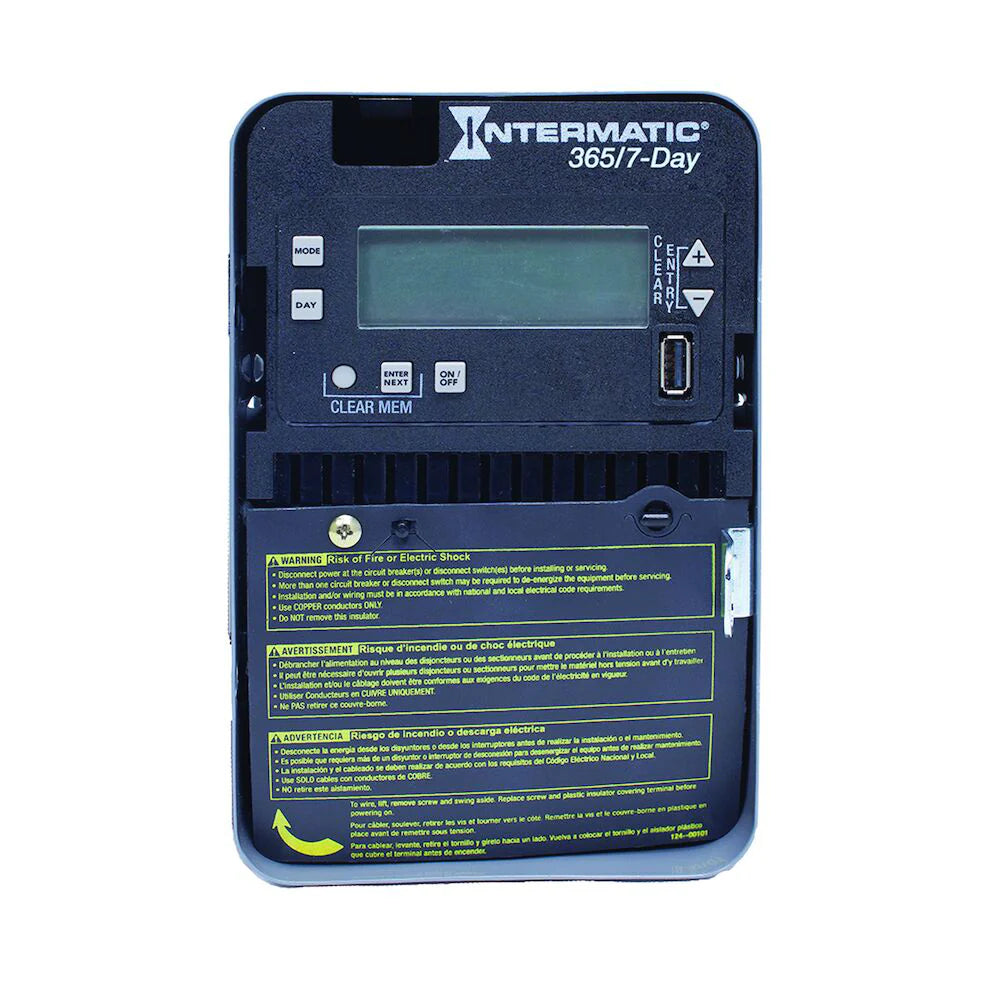

Intermatic ET2715C NEMA 1 Steel Case 24 Hour 120 to 277 VAC 60 Hz 20 Amp SPDT Electronic Control

Product Description

The Intermatic ET2715C is a 24-hour electronic control that operates on 120 to 277 VAC. This model integrates various features suitable for multiple applications such as industrial lighting and HVAC control. It includes a user-friendly interface and allows precise scheduling with up to 96 ON/OFF events and 50 holiday blocks for effective load management. The unit is designed with a durable NEMA 1 steel enclosure allowing both indoor and outdoor installation.

• Automatic voltage selection from 120 to 277 VAC.
• 100-hour supercapacitor backup eliminating the need for batteries.
• Configurable outputs for various voltages and applications.

Product Highlights

This timer switch is ideal for managing both interior and exterior lighting systems efficiently. It incorporates a backup system that ensures continuous functionality during outages, thus maintaining operational reliability.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Voltage: 120-277 VAC
• Amperage: 30 AMP
• Switch Type: SPDT
• Operating Temperature: -40 to 155 degrees F
• Enclosure: NEMA 1 Steel
• Dimensions: 7-7/8 inches H x 5-1/8 inches W x 3-7/16 inches D
• Number of Poles: 1
• Warranty: 2 years
