Intermatic ET2145C INT-MAT ET2145C 24-Hour/365 Day 4-C

Product Description

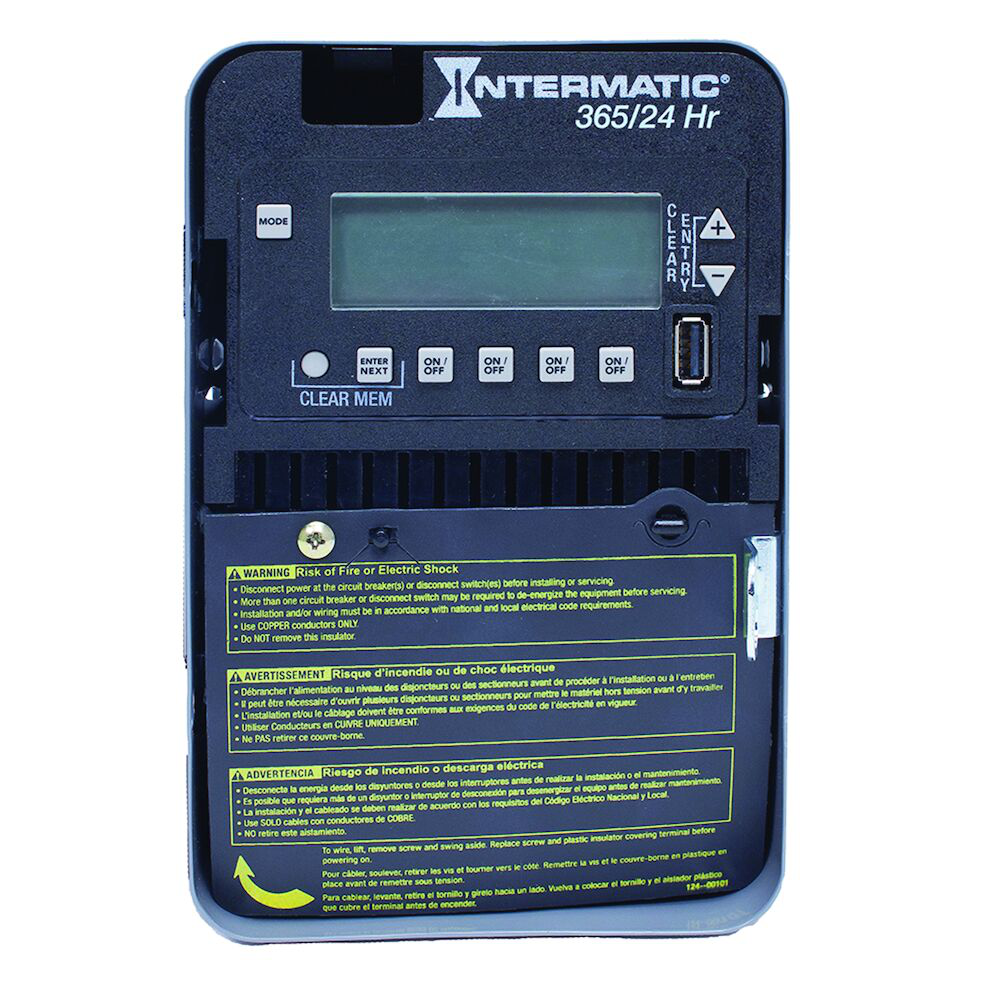

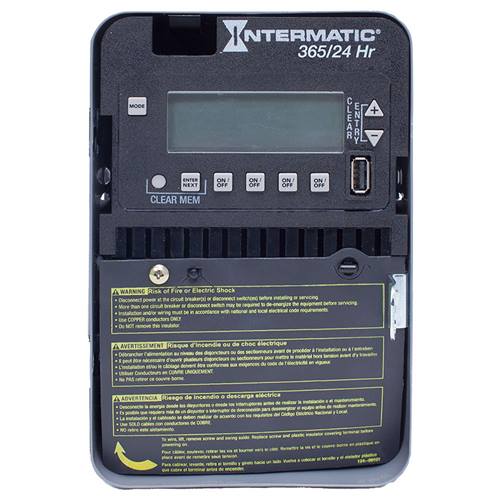

The Intermatic ET2145C is a digital timer designed for precise scheduling in various applications. This electronic time switch operates at a voltage range of one hundred twenty to two hundred seventy-seven volts AC and supports the control of multiple circuits simultaneously. It offers multiple daily and weekly programming options, making it suitable for outdoor and indoor lighting control, HVAC systems, and other electrical equipment.

• Up to ninety-six programmable events for daily or weekly settings.
• Includes fifty holiday blocks for independent scheduling.
• Configurable outputs facilitate various voltage applications.

Product Highlights

This timer is ideal for maintenance professionals and control equipment requiring reliable timing operations.

Product Information

Standard Information

• Manufacturer: Intermatic
• Product ID: ET2145C

Technical Specifications

• Voltage: 120-277 VAC
• Amperage: 30 Amp
• Switch Type: 4 SPST
• Height: 7-7/8 inches
• Width: 5-1/8 inches
• Depth: 3-7/16 inches
• Operating Temperature: -40 to 155 degrees F
• Contact Rating: 30 AMP @ 120/240 VAC
