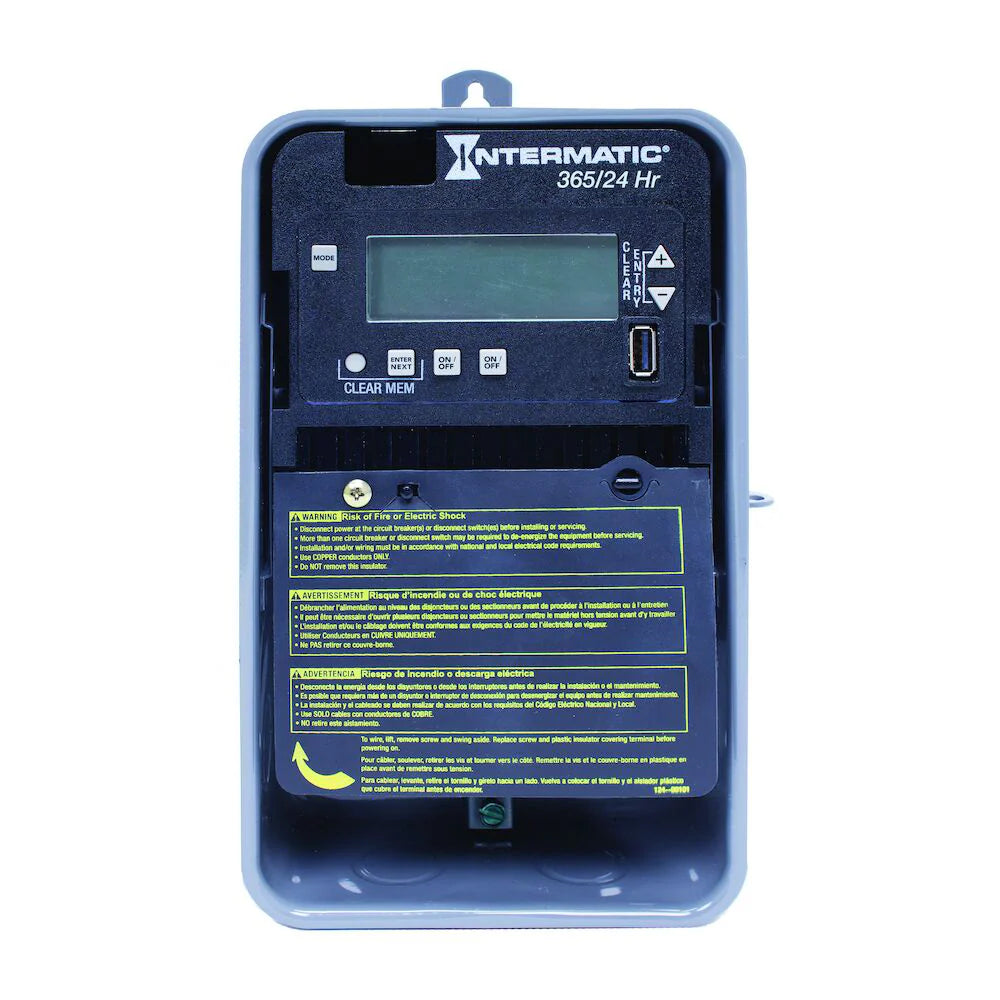

Intermatic ET2125CR T/S-ELEC,2CH,24HR,3R STL ENCL

Product Description

The Intermatic ET2125CR is a reliable electronic timer switch designed for various applications, functioning at a voltage of one hundred twenty to two hundred seventy-seven VAC. Its robust features allow for precision scheduling, making it ideal for automatic control of lights and equipment.

• Offers up to ninety-six ON/OFF events.
• Includes fifty holiday blocks for scheduling flexibility.
• Equipped with a 100-hour backup system, eliminating the need for batteries.

Product Highlights

This device is engineered for efficiency in managing circuits, capable of handling loads with a maximum rating of thirty amps. The design supports both SPST and DPST configurations, suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: ET2125CR
• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 30 A
• Enclosure Type: Type 3R Steel
• Mounting Type: Wall Mount
• Operating Temperature: -40 to 155 degrees F
• Number of Channels: 2
• Contact Configuration: 1 NO
• Warranty Length: 2 years
