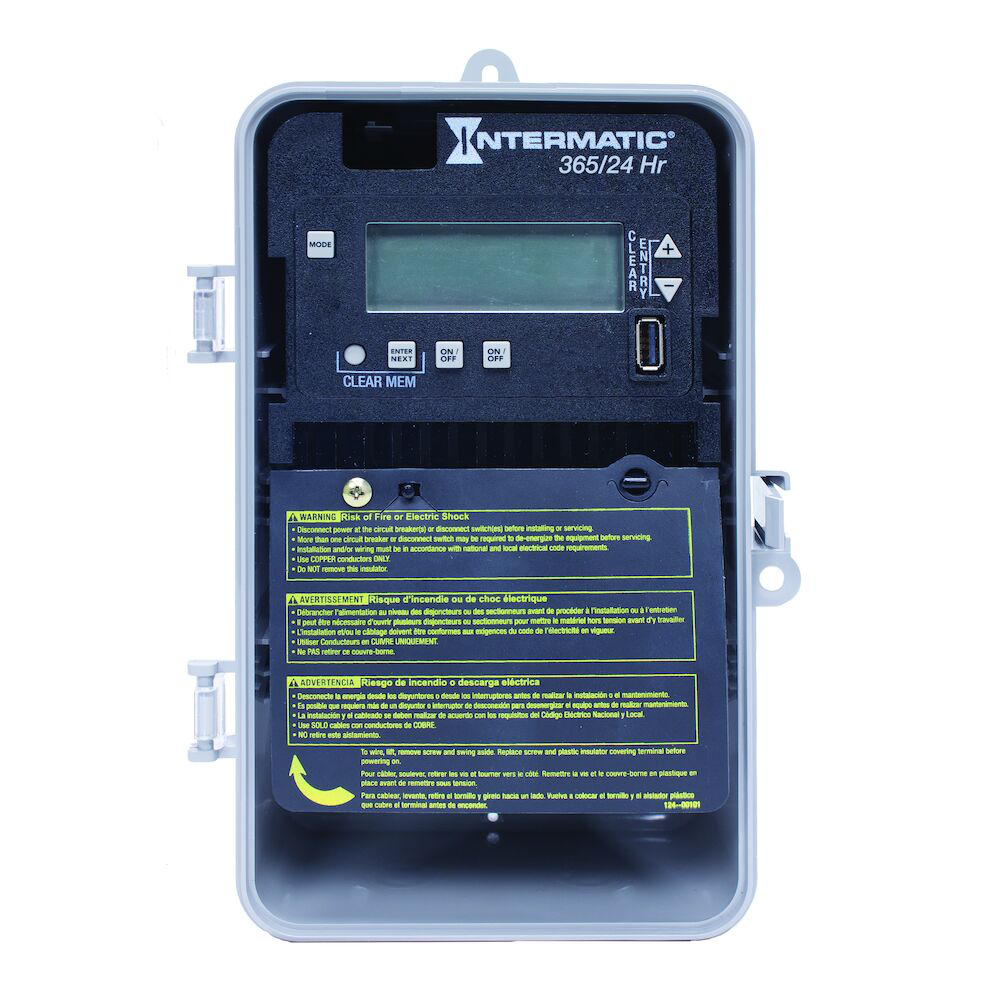

Intermatic ET2125CP 24-Hour/365 Day 2-Circuit Electronic Control 120-277 VAC

Product Description

The Intermatic ET2125CP is a reliable electronic time switch designed for efficient control of two circuits. This model offers a versatile scheduling system, allowing you to set up to ninety-six ON/OFF events and manage loads effectively. With the ability to customize settings across fifty holiday blocks, this time switch provides robust control in varied applications. Plus, the supercapacitor ensures operation for up to one hundred hours without requiring batteries, making it suitable for both indoor and outdoor applications.

• Spacious settings for up to one hundred holiday blocks.
• Supports multiple voltage inputs ranging from one hundred twenty to two hundred seventy-seven VAC.
• Easy installation with wall mounting capabilities.

Product Highlights

This time switch is ideal for users looking for a dependable solution in lighting control and equipment scheduling.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc.

Technical Specifications

• Model Number: ET2125CP
• Voltage Range: 120-277 VAC
• Amperage Rating: 30 Amp
• Contact Configuration: 1 NO
• Operating Temperature: -40 to 155 degrees F
• Enclosure Type: Type 3R Plastic
• Mounting Type: Wall Mount
• Number of Channels: 2
• Number of Poles: 1
• Power Consumption: 5 W
