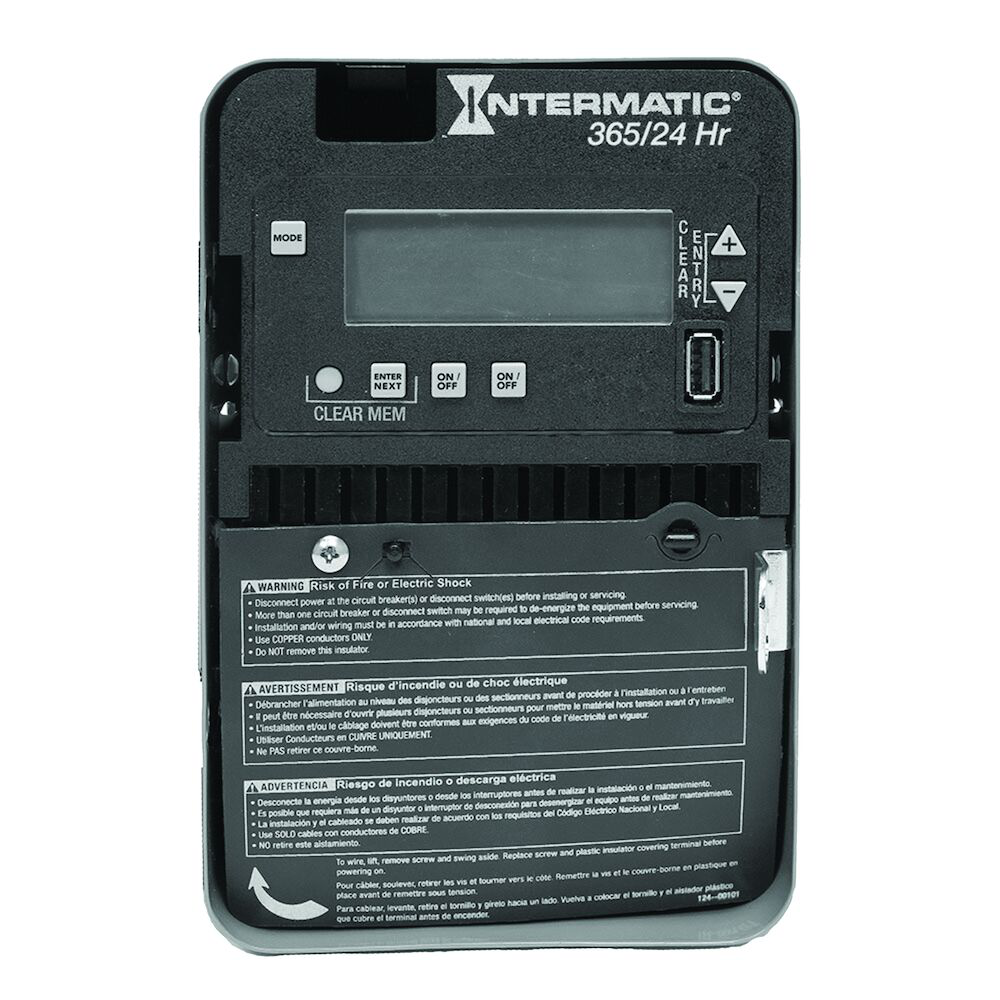

Intermatic ET2125C Electronic Time Switch 120-277 VAC 2-Circuit Indoor Metal Enclosure

Product Description

The Intermatic ET2125C is a digital time switch designed for various timing applications. This model operates on input voltages ranging from 120 to 277 VAC and handles up to thirty amps. It provides the ability to program up to ninety-six ON/OFF events to accommodate extensive scheduling needs.

• Two circuits allowing flexible control.
• Configurable outputs for various applications.
• Comes with a 100-hour backup system without battery reliance.

Product Highlights

The ET2125C allows for easy set-up with an intuitive interface and is ideal for indoor lighting control, machinery control, and automation solutions.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ET2125C
• Voltage: 120-277 VAC
• Amperage Rating: 30 A
• Contact Configuration: 1 NO
• Operating Temperature Range: -40 to +155 degrees F
• Enclosure Type: Type 1 Steel
• Frequency: 50/60 Hz
• Mounting Type: Wall Mount
• Special Features: Automatic voltage detection, non-volatile EEPROM memory
• Wire Size: 18-10 AWG
