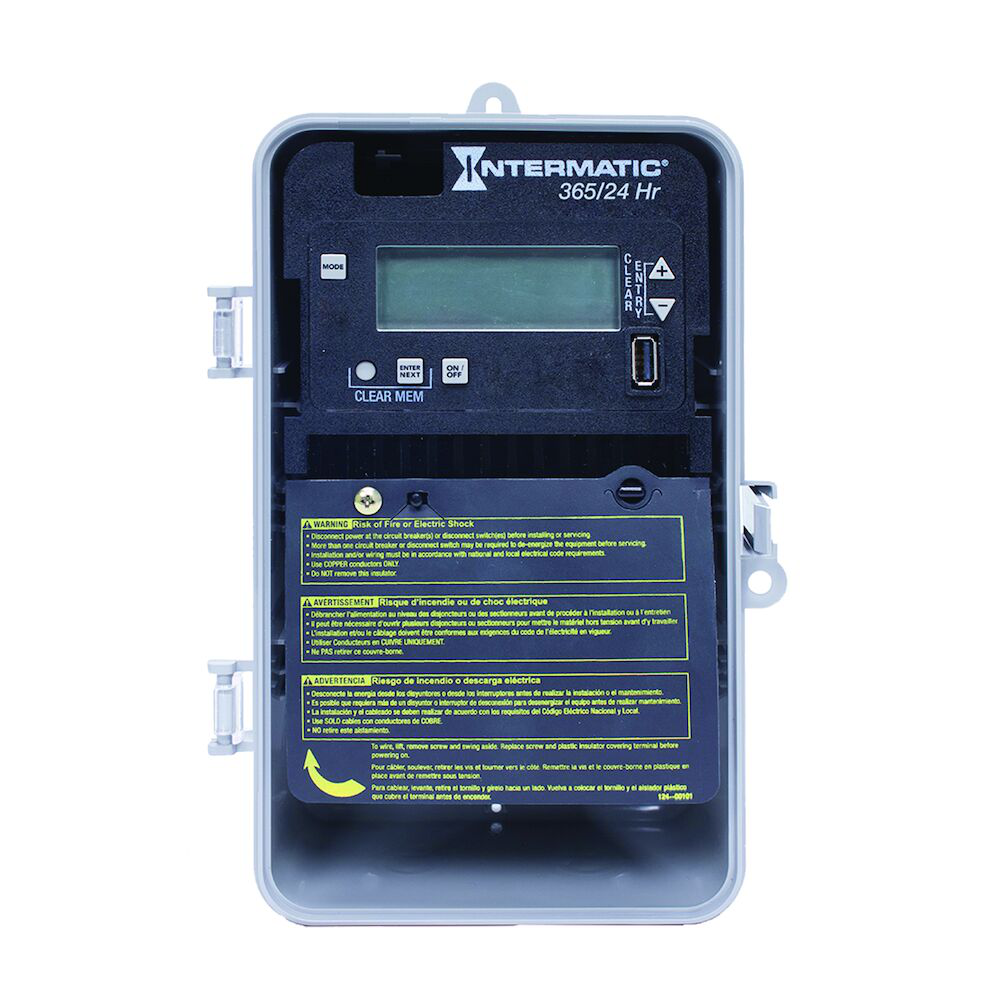

Intermatic ET2115CP 24-Hour/365 Day 1-Circuit Electronic Control 120-277 VAC SPDT

Product Description

The Intermatic ET2115CP is a 24-hour electronic control designed to manage various lighting systems and equipment. Operating at 120 to 277 VAC, this control can support significant loads such as interior and exterior lighting, electric motors, and pumps. It features a user-friendly interface with precise scheduling capabilities, making it suitable for a range of applications. With up to 96 programmable events and 50 holiday blocks, it ensures timely operation of connected devices.

• 100-hour supercapacitor eliminates the need for batteries
• Up to 96 set points or events
• Configurable outputs for various voltages and applications

Product Highlights

This timer includes an automatic voltage selection feature, ensuring compatibility with different power sources. It also has a durable enclosure suitable for indoor and outdoor applications.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ET2115CP
• Voltage Rating: 120-277 VAC
• Amperage Rating: 30 A
• Contact Configuration: 1 NO/1 NC
• Contact Rating: 20 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive)
• Enclosure Type: NEMA 3R Plastic
• Mounting Type: Wall Mount
• Operating Temperature: -40 to 155 °F
