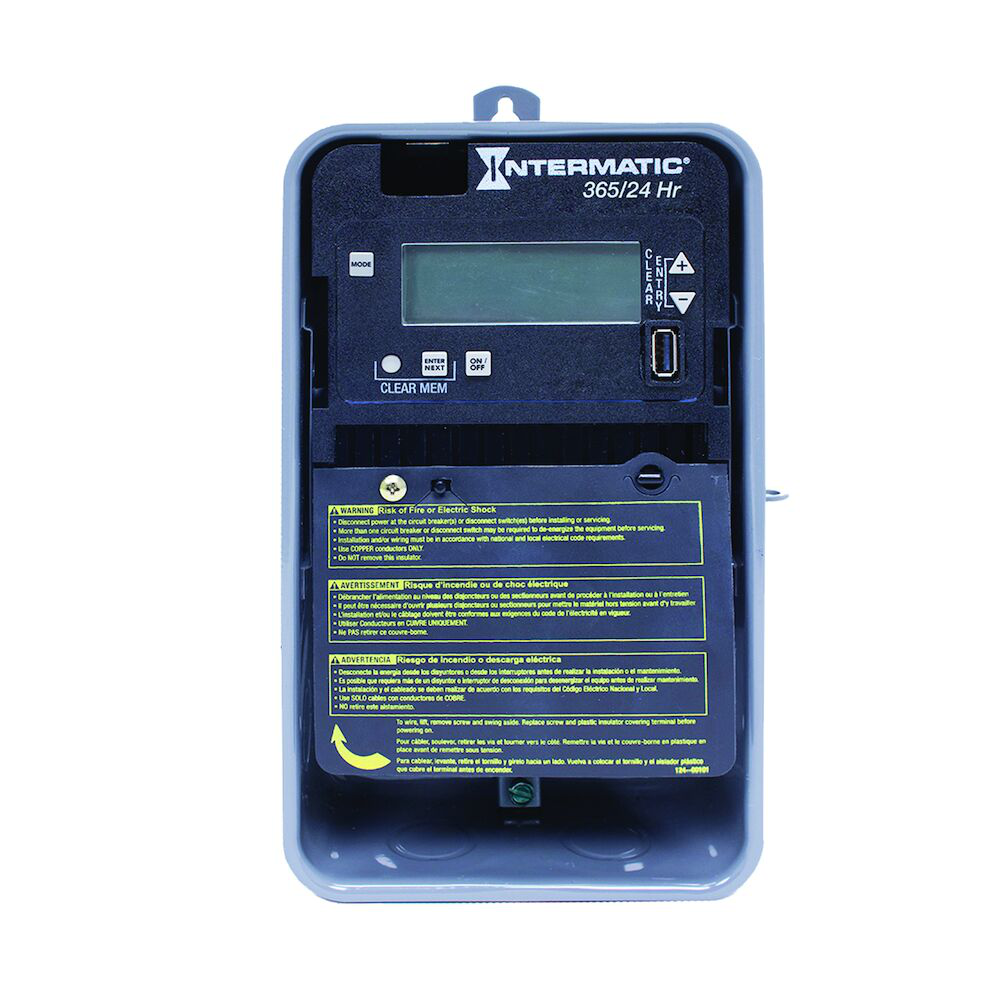

Intermatic ET2105CR 24-Hour/365 Day 1-Circuit Electronic Control 120-277 VAC SPST Outdoor Metal Enclosure

Product Description

The Intermatic ET2105CR is a 24-hour and 365-day electronic control designed for various applications. This control operates on a voltage range of 120 to 277 VAC and features a single pole single throw (SPST) configuration. The outdoor metal enclosure ensures durability in external environments.

• 100-hour backup feature without battery
• 96 on/off events available
• 50 holiday blocks for scheduling

Product Highlights

The ET2000 Series provides a user-friendly interface with detailed scheduling capabilities suitable for multiple applications.

Product Information

Standard Information

• Catalog Number: ET2105CR
• Manufacturer: Intermatic

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120-277 VAC
• Timing Range: 1 min to 23 hr 59 min
• Operating Temperature: -40 to +155 degrees F
• Contact Configuration: 1 NO
• Enclosure Type: NEMA 3R Steel
• Applications: Exterior Lighting, Interior Lighting, Security Lighting, Electric Motors, Electric Pump
• Mounting Type: Wall
