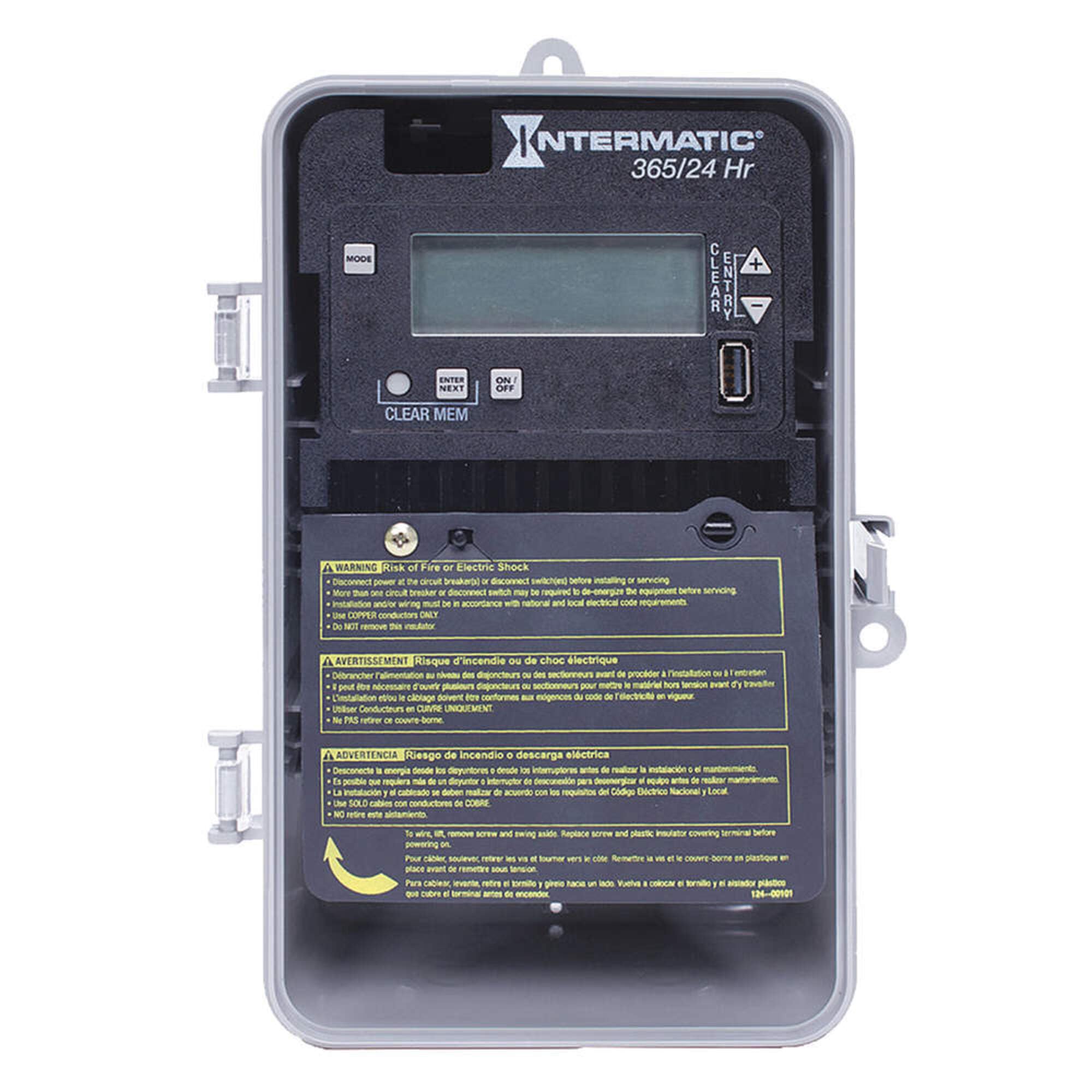

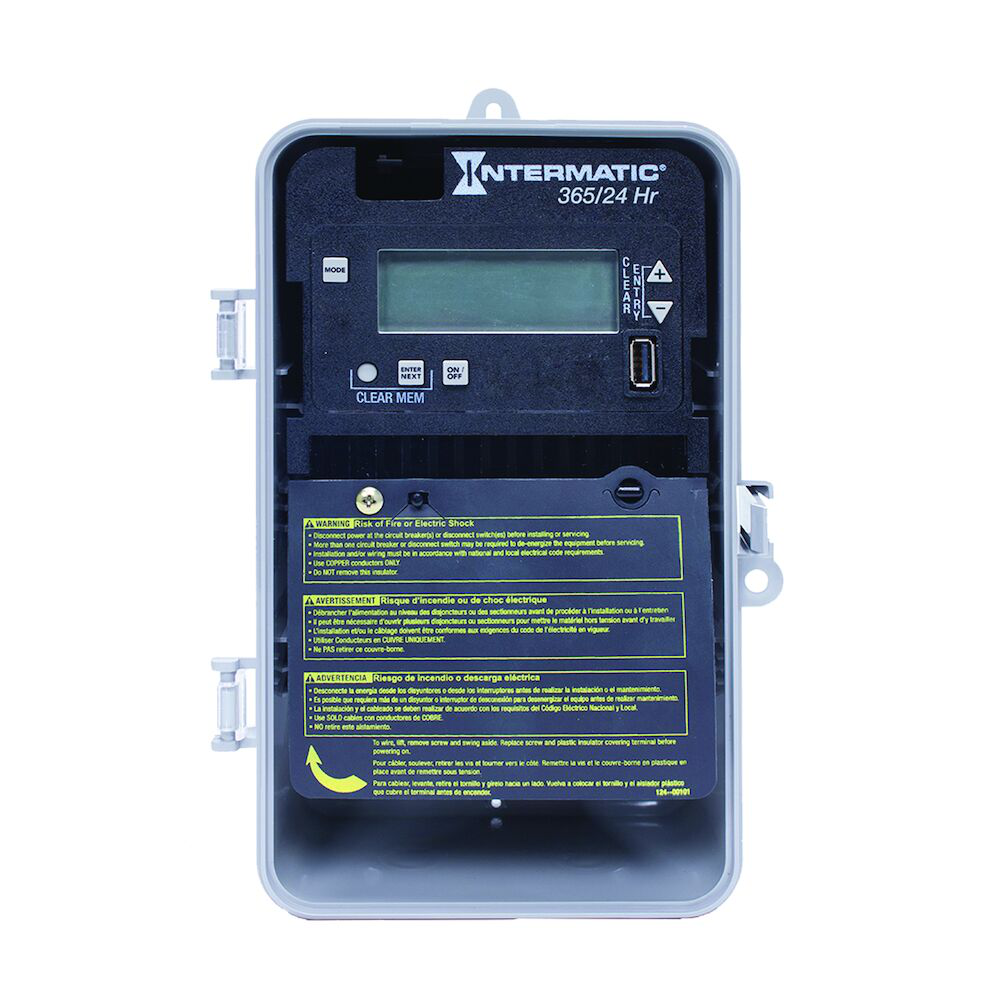

Intermatic ET2105CP 24-hour/365 day 1-circuit electronic control 30 amp

Product Description

The INTERMATIC ET2105CP is an electronic timer designed for various applications. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. It includes 96 ON/OFF events for demanding schedules. Configurable outputs and a 100-hour backup without batteries make it ideal for many uses.

• 100-hour supercapacitor eliminates the need for batteries
• Up to 96 set points or events
• Up to 50 holiday blocks with schedule capabilities

Product Highlights

Offers to-the-minute scheduling capabilities, configurable outputs, and a 100-hour backup without batteries. Ideal for indoor and outdoor applications.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: ET2105CP
• Country of Origin: Mexico

Technical Specifications

• Type: Electronic
• Brand: Intermatic
• Action: SPST
• Voltage: 120-277 VAC
• Amperage: 30 Amp
• Standard: UL Rating, Meet Title 20/24 Compliance
• Enclosure: Type 3R Plastic
• Frequency: 50/60 Hz
• Wire Size: 18-10 AWG
• Switch Type: SPST
• Applications: Indoor Lighting Control,Machinery & Pump Controls,Timing/Scheduling ON/OFF, Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor/Outdoor
• Mounting Type: Wall Mount
• TC Connection: Wire Lead
• Conductor Size: 14-8 AWG
• Contact Rating: 30 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC, 10 AMP @ 120/277 VAC (Ballast)
• Connection Type: Wire Lead
• Number of Poles: 1 Pole
• Power Consumption: 3 W
• Number of Circuits: 1
• Contact Configuration: 1 NO
• Operating Temperature: -40 to +155 DEG F
• Catalog Number: ET2105CP
• Manufacturer: INTERMATIC
• Timing Range: 1 MIN - 23 HR 59 MIN
• Voltage Rating: 120 to 277Vac
• Horsepower: 1, 2 hp
• Display Type: Digital
• Electrical Connections: 18 to 10 AWG Wire Lead
• Enclosure Type: NEMA 3R
• Number of Channels: 1
• Number of Pulse Events: 96
• Operation Mode: 23 hr 59 min
• Series: ET2000
• Time Setting: 1 min to 23 hr 59 min
• Amps: 30 A
• HP @ 120V: 1
• HP @ 240V: 2
• Nema Rating: 3R
• Backup Device: Capacitor
• Backup Time: 100 Hr.
• Display Height: 1"
• Display Width: 3"
• Standards: Ul Listed, California Title 20 Listed, Led Listed
• Max. On/Off Cycles: 96
• Description/Special Features: Outdoor
• Hz - Electrical: 60 Hz
• Max. Ballast Amps: 10 A, 120/277 VAC
• Max. Time Setting: 24 hr
• Min. Time Setting: 1 min
• Event Allocation - Electronic Timer: 1 On/Off Action = 2 Events
• Events Available - Electronic Timer: 96
• Available Actions - Electronic Timer: On/Off
• ECCN: EAR99
• UNSPSC: 39122208
• Clock Motor Voltage: 120 - 277
• Frequency Rating: 50/60
• Load Rating: 30A
• Time Cycle: 23 HR 59 MIN
• Timer Range: 1 MIN - 23 HR 59 MIN
• Timer Switch Type: Electronic
