Intermatic ET2105C 365/24HR 1XSPST ELECTRTYPE 1 STL ENCL

Product Description

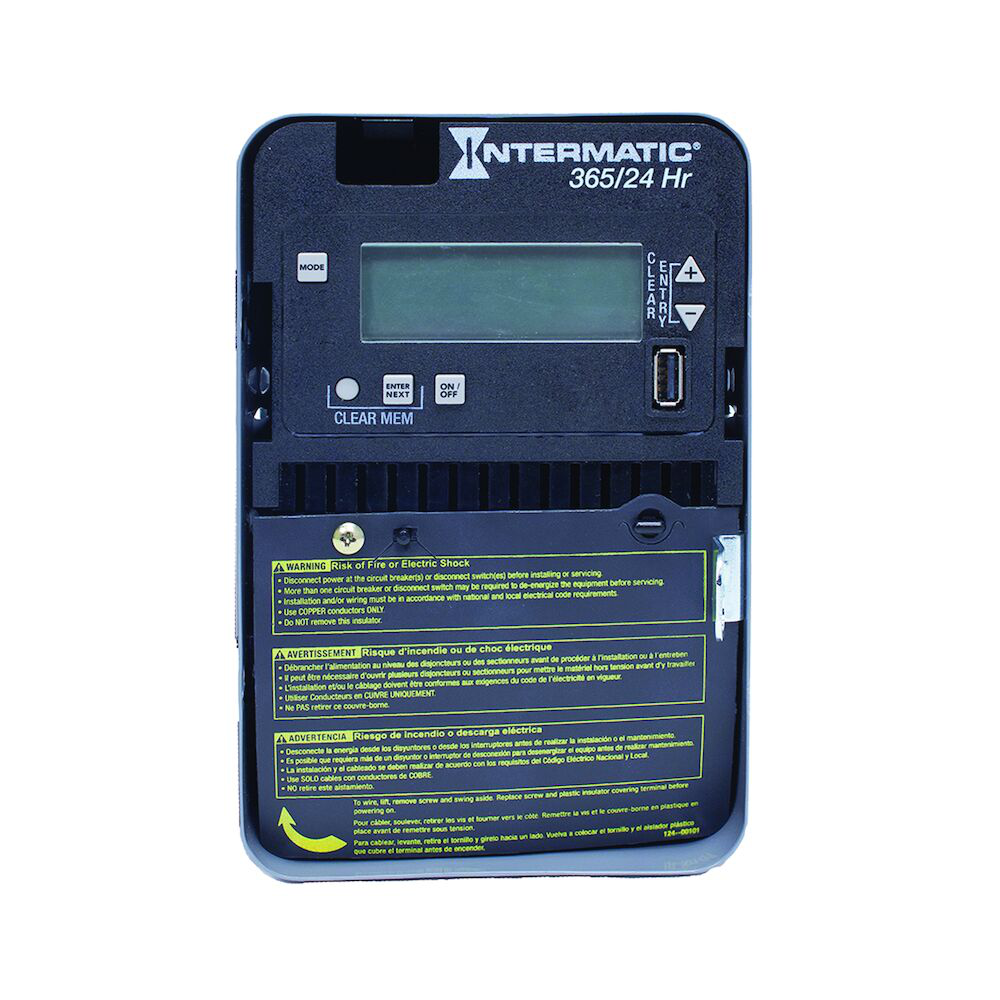

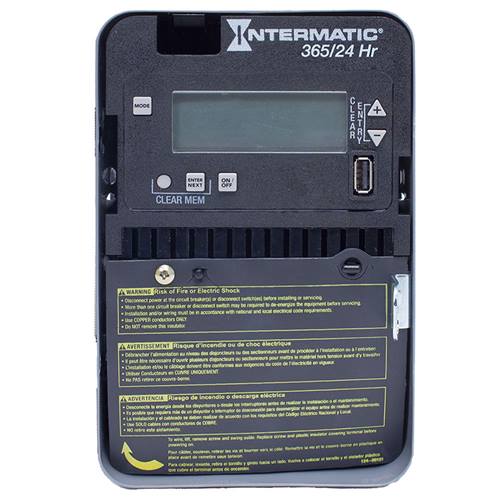

The Intermatic ET2105C is a 365/24-hour electronic timer control with a single SPST switch configuration. This device allows for up to 96 ON/OFF events, making it suitable for a variety of applications, including lighting control and machinery management. It has a user-friendly interface and offers holiday scheduling with 50 blocks for more flexible timing options.

• 100-hour supercapacitor ensures no battery requirement
• Compatible with voltages ranging from 120 to 277 VAC
• Wall mountable and features a NEMA type 1 metal enclosure

Product Highlights

This timer is designed for ease of installation and dependable performance. It supports automatic voltage selection and is equipped with features to extend the life of the control. Ideal for indoor lighting control, it is built to meet UL ratings and Title 20/24 compliance.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• MPN: ET2105C
• Voltage Rating: 120-277 VAC
• Amperage Rating: 30 A
• Operating Temperature: -40 to 155 degrees F
• Contact Configuration: 1 NO
• Dimensions: 7.875 inches height, 5.125 inches width, 3.437 inches depth
• Mounting Type: Wall Mount
• Enclosure Type: Type 1 Steel
