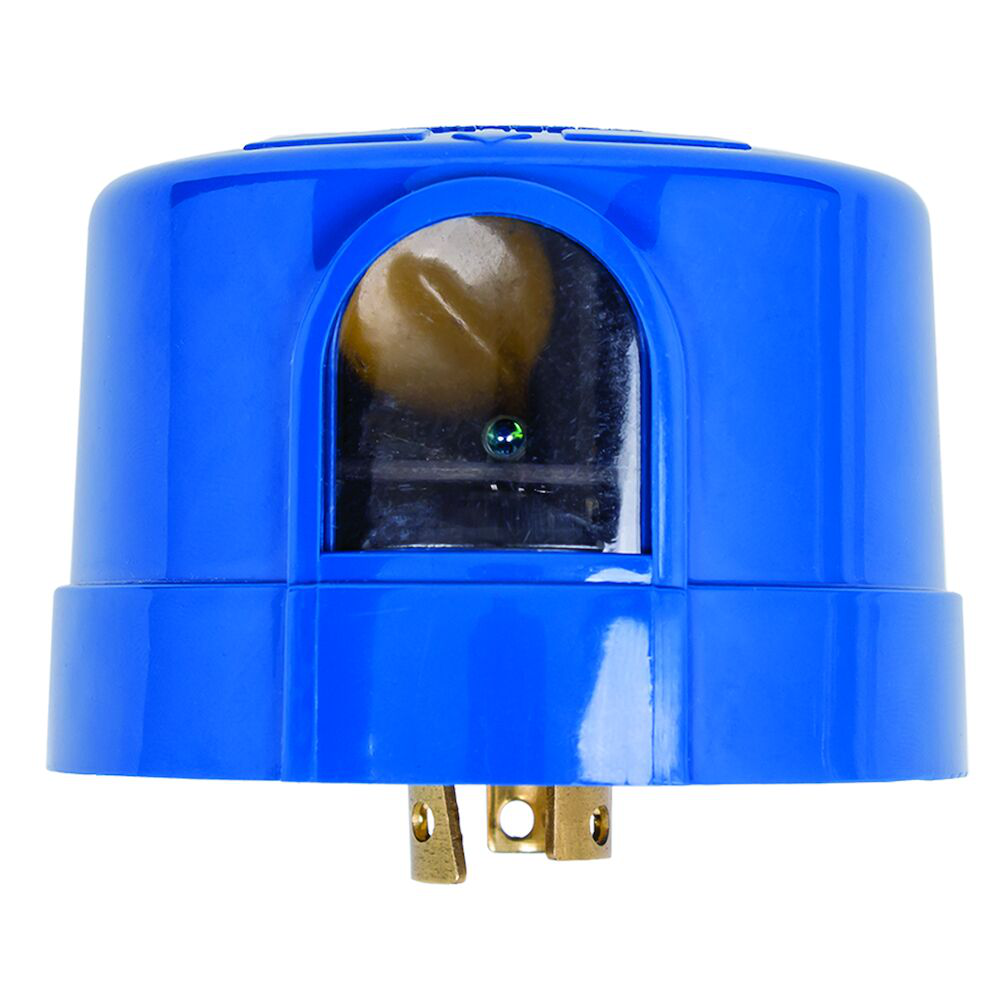

Intermatic ELC4536 Electronic Photocontrol 105 to 305 VAC

Product Description

The Intermatic Electronic Photocontrol, model ELC4536, operates at a voltage range of 105 to 305 VAC. This locking-type photocontrol is designed for outdoor lighting control, making it suitable for both LED and HID fixtures. It has a long lifespan of ten years and can handle a load of up to 1000 watts for tungsten and 1800 VA for ballast applications.

• Power consumption is less than 0.5 watts at 277 VAC
• Features a durable NEMA 410 enclosure
• Built-in surge protection ensures reliability

Product Highlights

The product includes a non-drift silicon light sensor with an infrared filter, enabling precise light detection. It exceeds 5,000 on/off switching cycles and features a power-up ON delay of 45 to 60 seconds for easy installation and troubleshooting.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Input Voltage: 105 to 305 VAC
• Frequency Rating: 50/60 Hz
• Operating Temperature: -40 to 158 degrees F
• Operating Cycles: 3650
• Mounting Type: Twistlock Mount
• Amperage: 2 A
• Dimensions: 3.18 diameter x 2.204 height inches
• Weight: 0.25 lb
