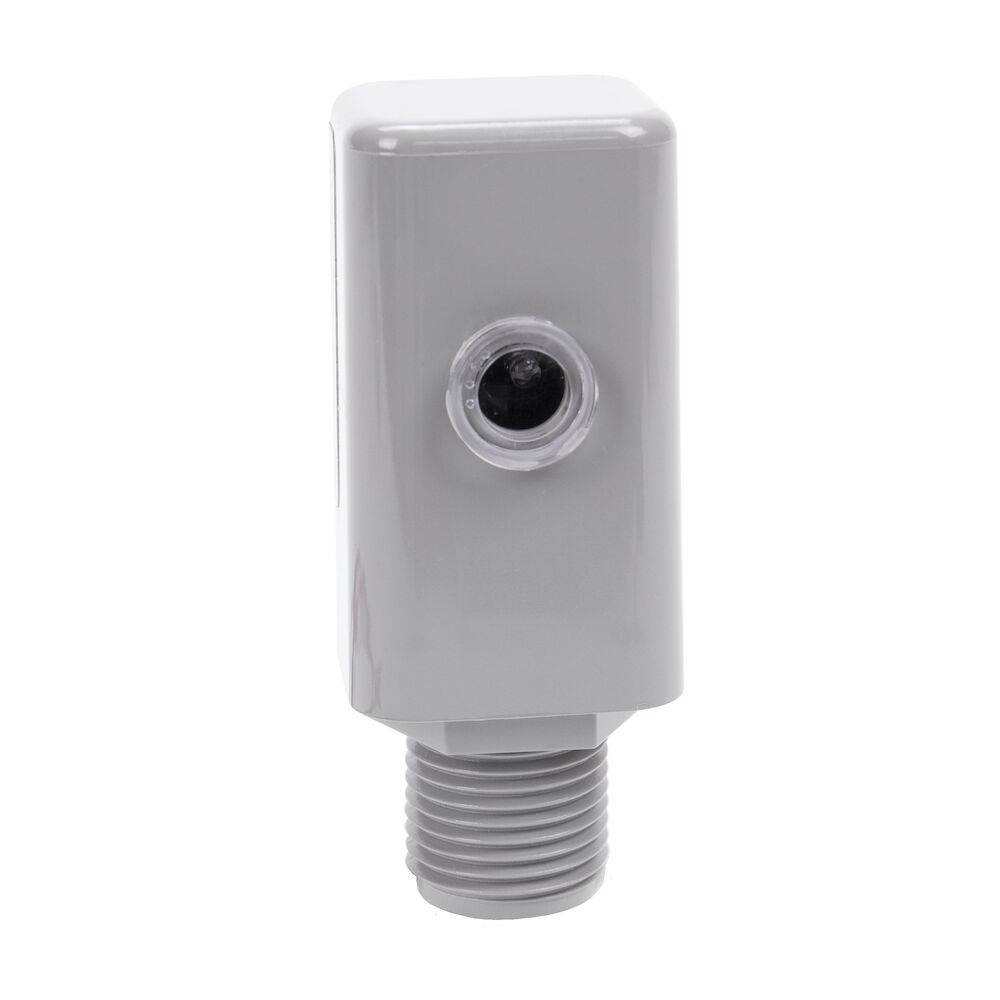

Intermatic EK4135S NightFox Stem Mount 480V Photocontrol

Product Description

The Intermatic EK4135S NightFox electronic photocontrol is designed for permanent installation on outdoor electrical boxes or lighting fixtures. This device suits LED fixtures requiring extended life, making it ideal for various applications. The unit features a one-half inch to fourteen NPSM threaded stem, compatible with standard outlet boxes and wall packs, necessitating a minimum installation hole size of seven-eighths inch. It comes equipped with nine wire leads for easy connection.

• Non-drift silicon light sensor with IR filter.
• DC relay with zero-crossing circuitry for extended lifespan.
• Conformal coated PCB enhances durability.

Product Highlights

Designed for outdoor lighting control, this photocontrol maintains a high-performance standard while providing significant energy savings.

Product Information

Standard Information

• Manufacturer: Intermatic
• Product Type: Stem Mount Electronic Photocell

Technical Specifications

• Catalog Number: EK4135S
• Voltage Rating: 480 VAC
• Operating Temperature: -40 to 158 degrees Fahrenheit
• Dimensions: 1 5/16 inches wide x 1 1/4 inches deep x 2 1/4 inches high
• Application: Outdoor Lighting Control
• Operating Cycles: 10,000
• Enclosure Material: Polycarbonate
• Weight: 0.22 lbs
