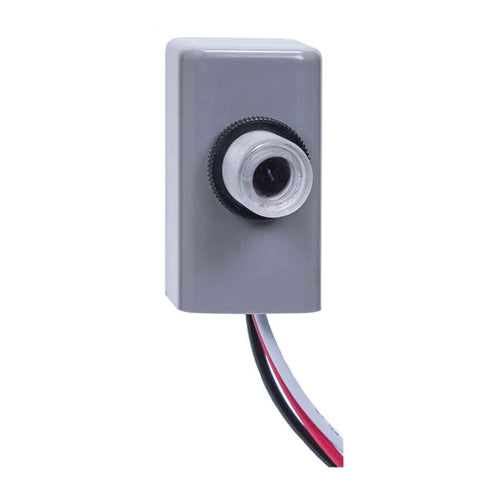

Intermatic EK4036S Electronic Photocontrol Button 105/305 VAC 50/60 Hz 18 AWG Gray

Product Description

Discover the efficiency of the Intermatic EK4036S, a robust electronic photocontrol with a button, optimized for fixed mounting. It operates on a 105 to 315 VAC and is designed to handle up to 1000 W tungsten and 1800 VA ballast loads, making it ideal for extensive industrial and residential lighting systems.

• Robust polycarbonate housing ensures durability against environmental factors.
• Integrated surge protection up to 255 joules to safeguard against voltage spikes.
• Efficient silicon sensor with IR filter minimizes drifting and delivers accurate light readings.

Product Highlights

This photocontrol unit is geared for a long service life of over 10,000 cycles, made possible by its solid state photo/silicon IR filtered sensor and zero-crossing circuit technology that enhances longevity.

Product Information

Standard Information

• Sensitivity: 1.5 FC On/2.25 FC Off
• Environmental Conditions: Operating temperatures from -40 to 158 degrees F

Technical Specifications

• Enclosure Type: NEMA 4/10
• Supply Voltage: 105 to 305 VAC
• Amperage Rating: 6 A
• Frequency Rating: 50/60 Hz
• Material: Polycarbonate
• Mounting Type: Button Fixed
• Dimensions: 2.25 in H x 1.3 in W x 1.24 in D
