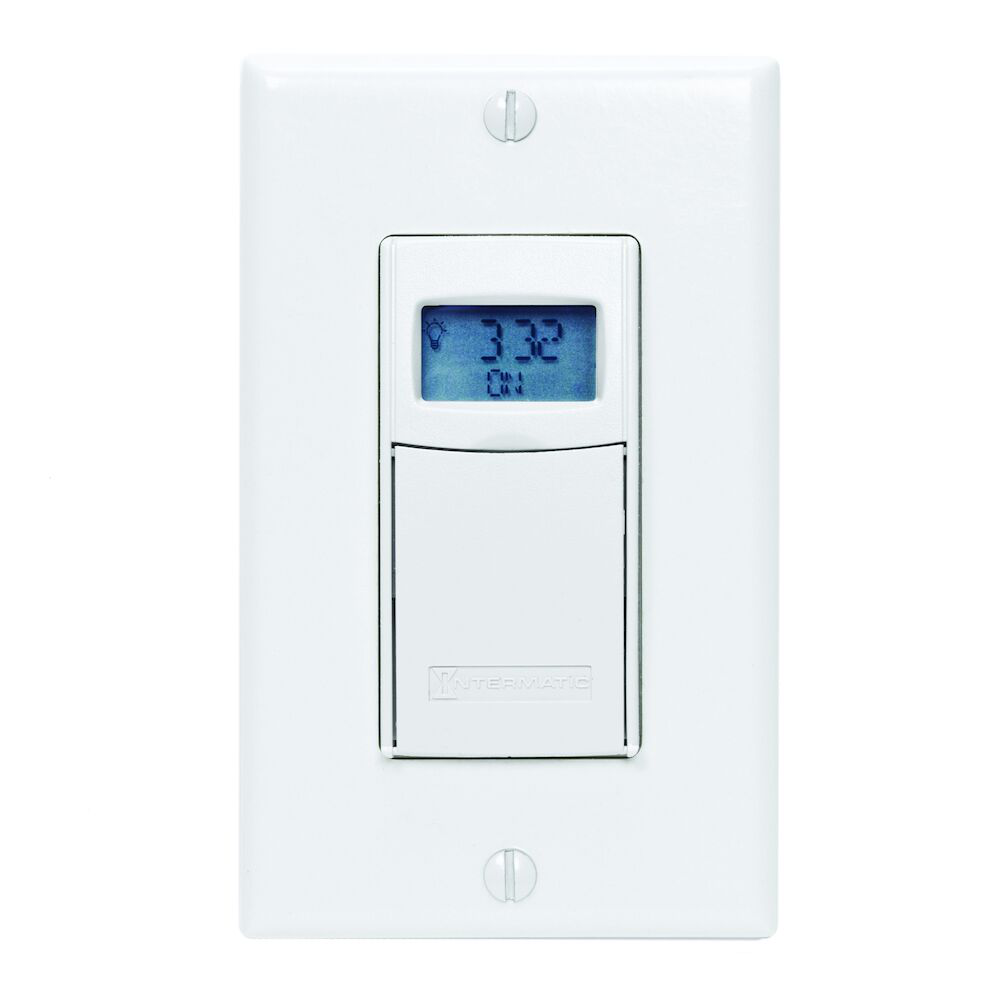

Intermatic EI400WC Digital Auto-Off Timer 120 to 277 VAC 20 Amp 1-Pole

Product Description

The Intermatic EI400WC is a digital auto-off timer designed for various applications. This timer operates on 120 to 277 VAC and provides a countdown time ranging from one second to twenty-four hours. It is suitable for controlling lighting systems, HVAC equipment, and other applications without the need for a neutral wire connection.

• Programmable countdown time from one second to twenty-four hours
• No neutral connection required for easy installation
• Compatible with incandescent, fluorescent, CFL, and LED loads

Product Highlights

The EI400WC timer allows for easy programming with its digital interface, enhancing time management in both residential and industrial settings.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: EI400WC

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 Amp
• Dimensions: 2.75 inches height x 1.75 inches width x 1.36 inches depth
• Weight: 0.399 lb
• Contact Rating: 20 A at 120 - 277 VAC (Resistive Heater)
• Operating Temperature: 32 to 122 degrees F
• Material: Thermoplastic
• Mounting Type: Wall Mount
• Frequency: 50/60 Hz
