Intermatic EI230 timer 1800-watt 2/4/8/12

Product Description

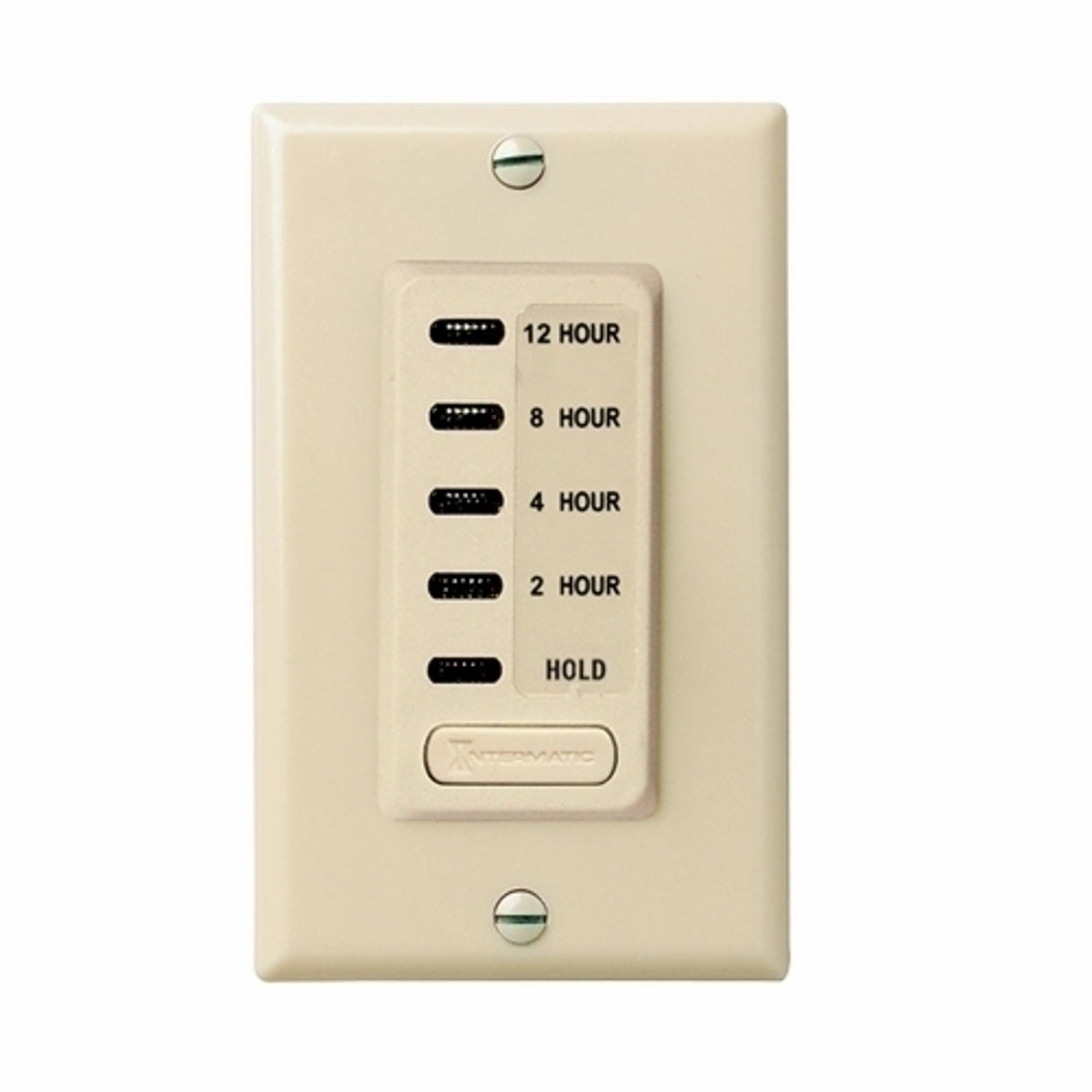

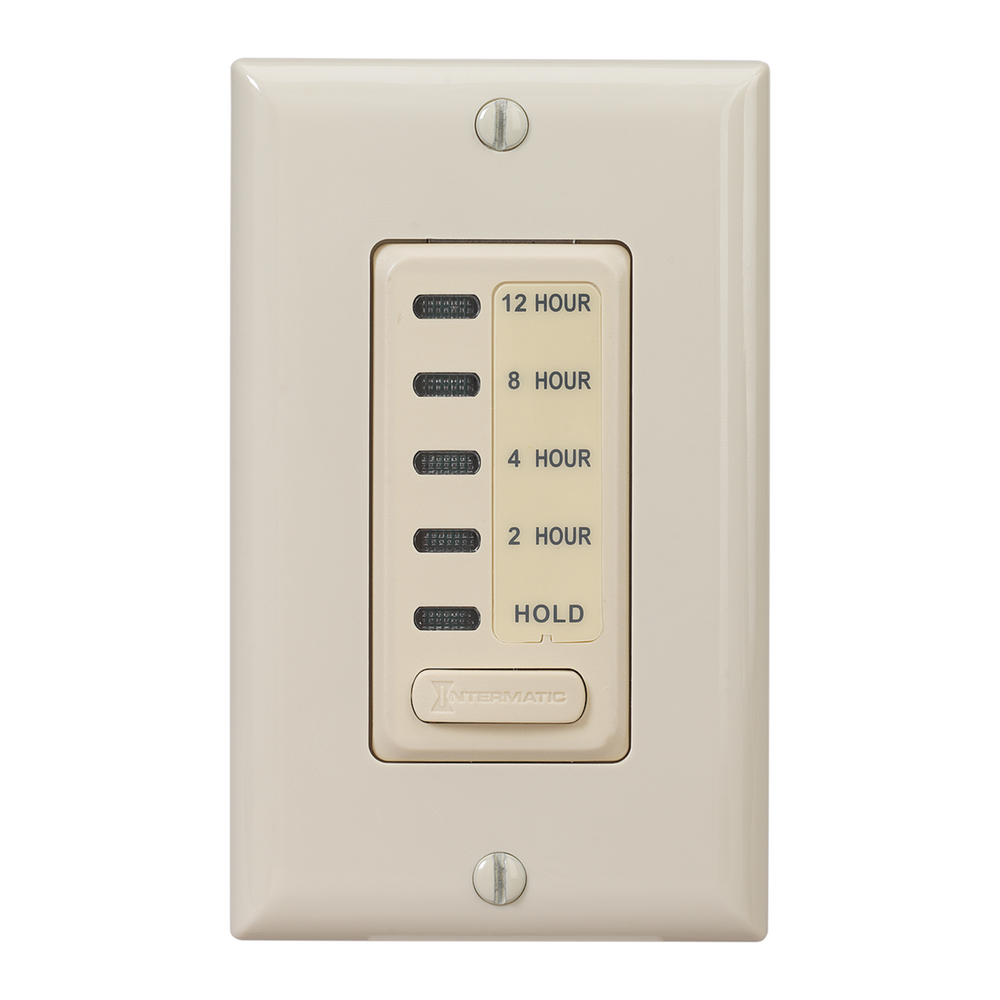

The Intermatic EI230 is an electronic in-wall countdown timer designed for various applications. This SPST timer features automatic shut-off and provides preset time ranges of 2, 4, 8, or 12 hours, activated by a single button. It operates silently on 120 VAC, 60 Hz, and can handle up to 1800 watts. The timer is UL approved for both Canada and the US, ensuring compliance for electrical installations.

• Provides 2/4/8/12 hour time ranges for flexible control.
• Replaces single-pole switches in various electrical applications.
• CFL, fluorescent, incandescent, and LED compatible.

Product Highlights

This electronic in-wall countdown timer offers silent operation and simple single-button time selection for automated control of lighting and other loads.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: EI230
• Country of Origin: CHINA

Technical Specifications

• MPN: EI230
• Manufacturer: Intermatic
• Brand: Intermatic
• UPC: 078275095281
• GTIN: 00078275095281
• Product Type: TIMER
• Product Group: Home Improvement
• Switch Type: SPST
• Power Rating: 1800 W
• Installation: In-Wall
• Certifications: UL (Canada and US)
• Color: Ivory
• Material: Plastic
• Number of Settings: 4
• Model Number: EI230
• Hold Mode Included: Yes
• Wiring Configurations: Single
• Time Presets: 2, 4, 8, 12 hours
• Neutral Connection Required: Yes
• Input Voltage: 120 VAC
• Frequency: 60 Hz
• Load Compatibility: CFL, Fluorescent, Incandescent, LED
• Maximum Countdown Time: 12 hours
• Country of Origin: China
• Electronic Ballast/LED Rating: 4 A, 500 VA
• Magnetic Ballast Rating: 8 A, 1000 VA
• Mechanism Type: Digital/Electrical
• Motor Load Rating: 1/4 HP
• On Events: 1
• Operation Mode: Countdown
• Resistive Load Rating: 15 A, 1800 W
• Total Events: 1
• Incandescent Load Rating: 1000 W
• Wall Plate Configurations: Single-Gang
• Operating Temperature Max (°C): 40
• Operating Temperature Max (°F): 104
• Operating Temperature Min (°C): 0
• Operating Temperature Min (°F): 32
• Product Depth (in): 1.438
• Product Height (in): 4.125
• Product Width (in): 1.688
