Product Description

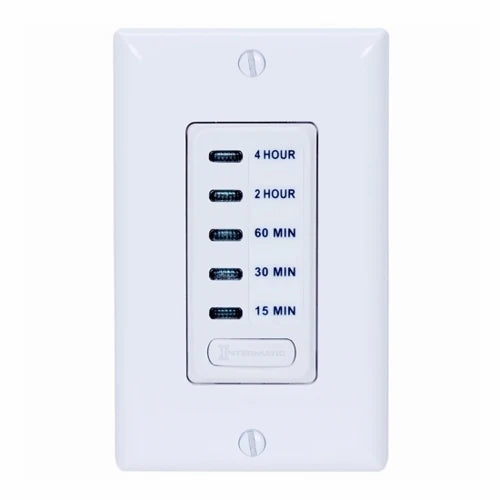

The Intermatic EI215W is an electronic countdown timer designed for in-wall installation. This timer operates on one hundred twenty volts alternating current and supports applications up to one-half horsepower. It allows for time settings from fifteen minutes to four hours. The timer can manage a variety of indoor lighting and fan applications, ensuring efficient use of energy.
- No programming required
- Silent operation from fifteen minutes to four hours
- Single-button selection for timer settings
Product Highlights
The EI215W is ideal for replacing standard switches and provides flexibility for time-sensitive operations in residential and commercial settings.
Product Information
Standard Information
-
Manufacturer: Intermatic
-
Model Number: EI215W
Technical Specifications
-
Voltage Rating: 120 VAC
-
Amperage Rating: 15 A
-
Horsepower: 1/2 hp
-
Time Setting: 15/30/60 min to 2/4 hr
-
Contact Form: 1NO/SPST
-
Mounting Type: Wall
-
Temperature Rating: 32 to 122 degrees F
-
Dimensions: 2.79 in H x 1.75 in W x 1.44 in D
