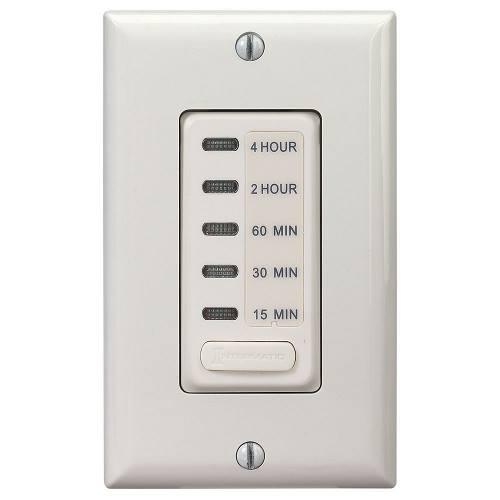

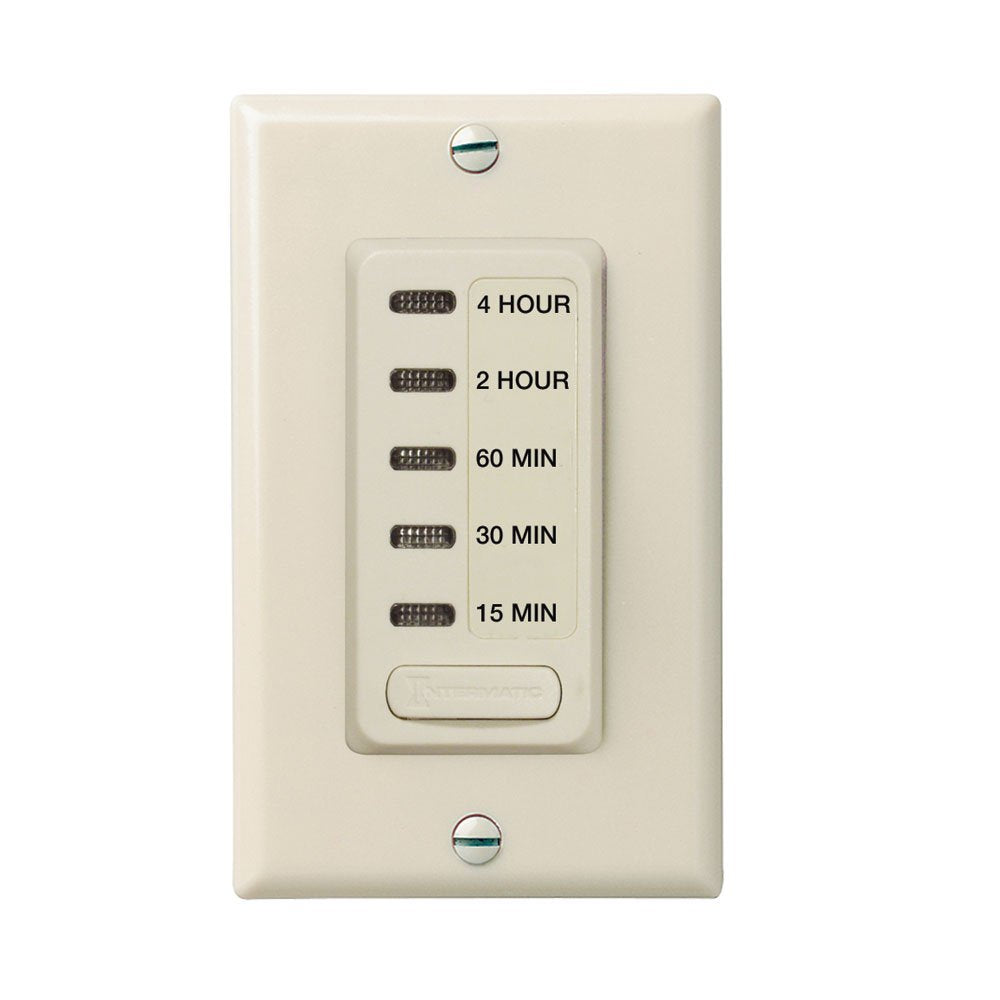

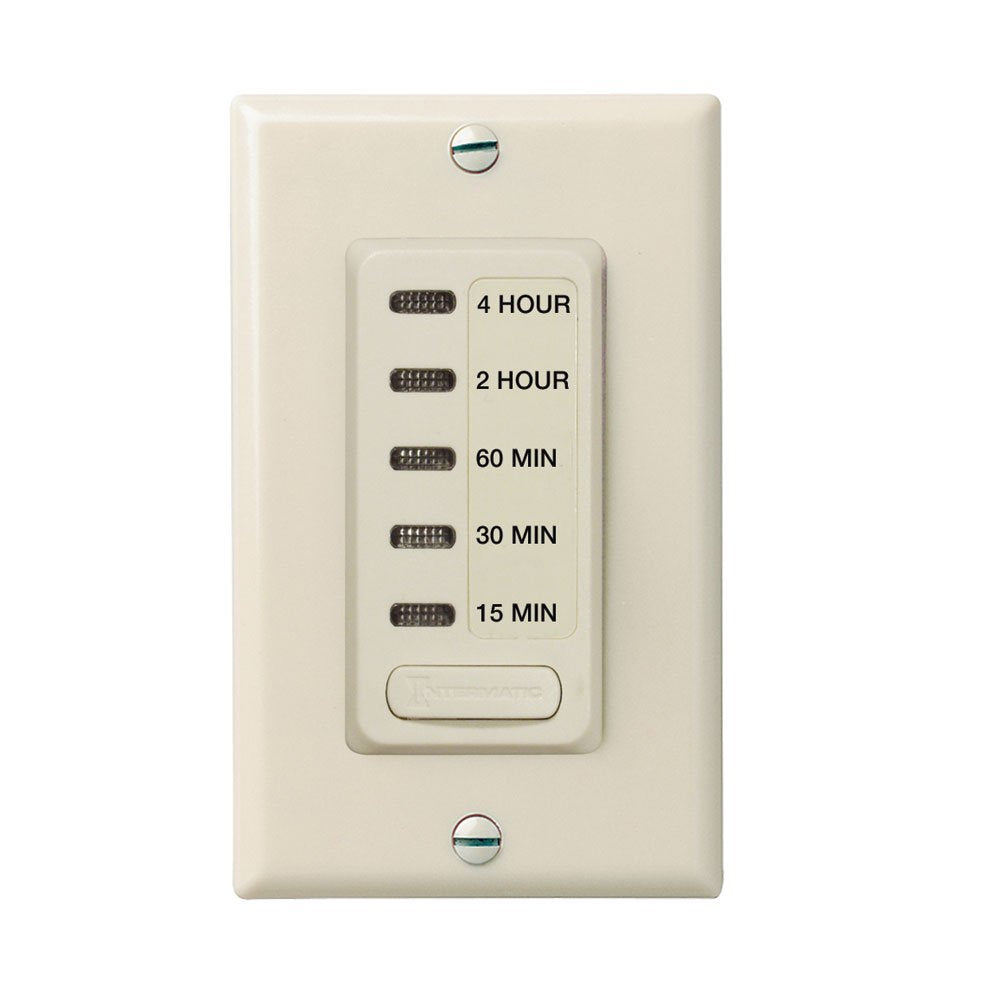

Intermatic EI215LA Timer 1800-Watt 15/30/60 Minute, 2/4 Hour

Product Description

The Intermatic EI215LA is an Electronic Countdown Auto Shut-Off In-Wall Timer. It requires no programming, with preset countdown times activated by a single button. This 120 VAC, 15 Amp, 1800 Watt timer provides silent operation, making it suitable for applications where mechanical timer noise is a concern. It is designed for wall mount installation and is compatible with CFL, LED lighting, fans, and HVACR systems.

• Provides silent operation in time ranges from five minutes to 12 hours
• Single button time selection for activating preset countdown times
• Replaces single-pole switches in a variety of applications

Product Highlights

This electronic countdown timer offers silent operation and single-button time selection for various indoor applications, including lighting and fans.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: EI215LA
• Country of Origin: CHINA

Technical Specifications

• Type: Electronic Countdown Auto Shut-Off In-Wall Timer
• Action: SPST
• Input Voltage: 120 VAC
• Frequency: 50/60 Hz
• Amperage: 15 Amp
• Wattage: 1800 Watt
• Number of Poles: 1 Pole
• Contact Configuration: 1 NO
• Wiring Configuration: Single
• Neutral Connection Required: Yes
• Shut-off Type: Automatic
• Hold Mode Included: No
• Countdown Time Presets: 15 min, 30 min, 1 hr, 2 hrs, 4 hrs
• Max Countdown Time: 4 hrs
• Operation Mode: Countdown
• Mounting Type: Wall Mount
• Mechanism Type: Digital/Electrical
• Wall Plate Configuration: Single-Gang
• Operating Temperature (Min): 0 degrees C
• Operating Temperature (Max): 122 degrees F
• Certifications: cULus Listed, California TITLE 24 Compliant
• Applications: Indoor, CFL, Fluorescent, Incandescent, LED Lighting, Fans, HVACR
• Tungsten Incandescent Load Rating: 8.3 AMP @ 120 VAC
• Magnetic Ballast Load Rating: 8 AMP @ 120 VAC
• Resistive Load Rating: 15 AMP @ 120 VAC
• Electronic Ballast LED Rating: 4 A, 500 VA
• Motor Load Rating: 1/4 HP
