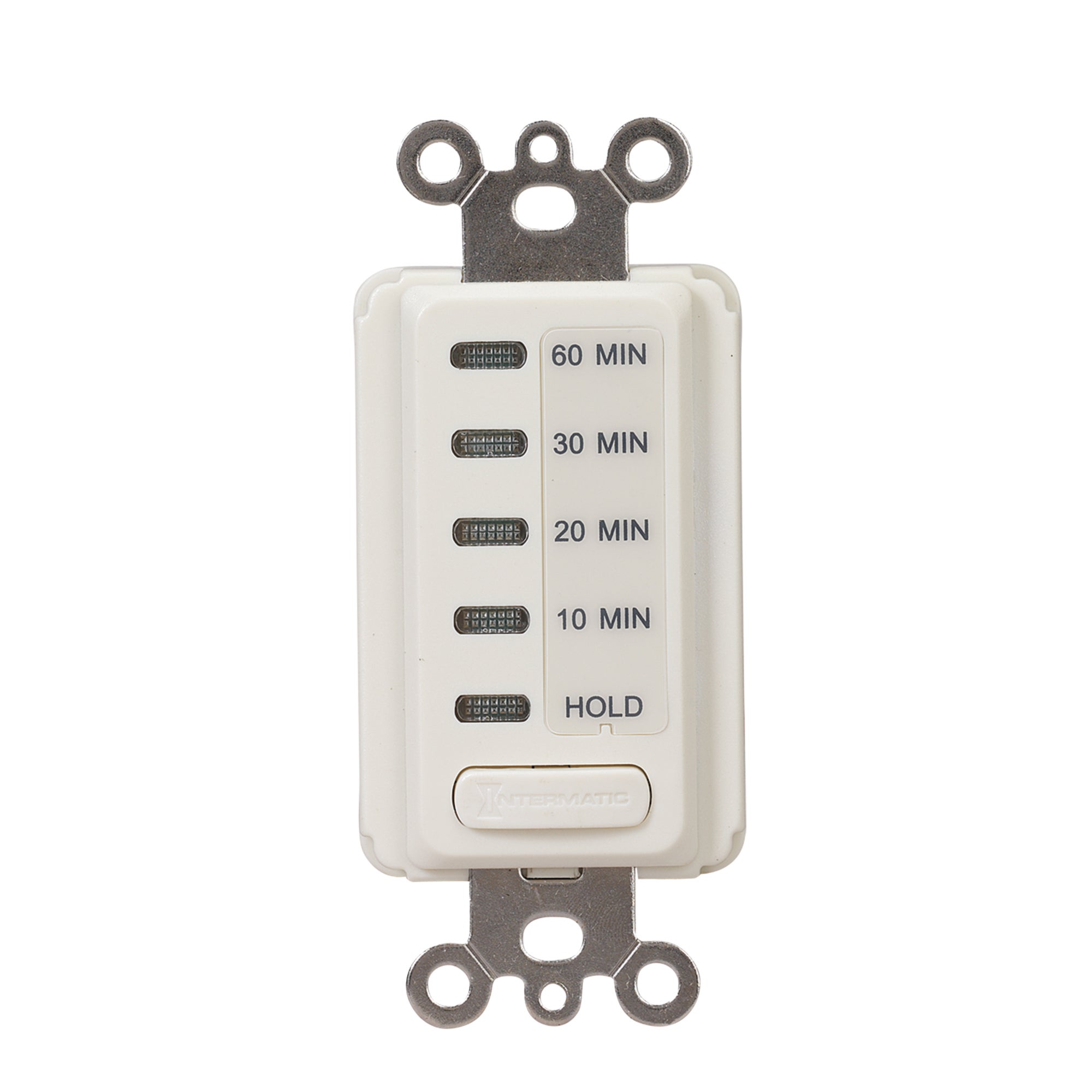

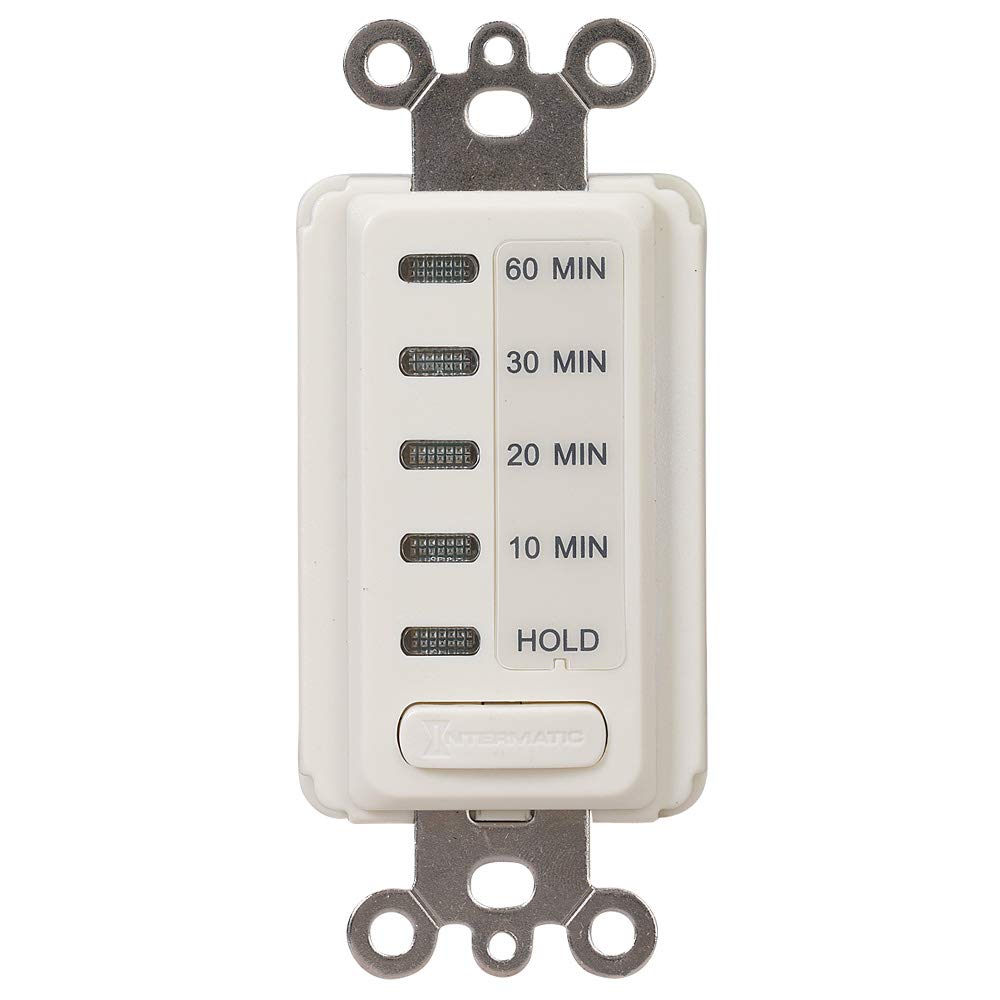

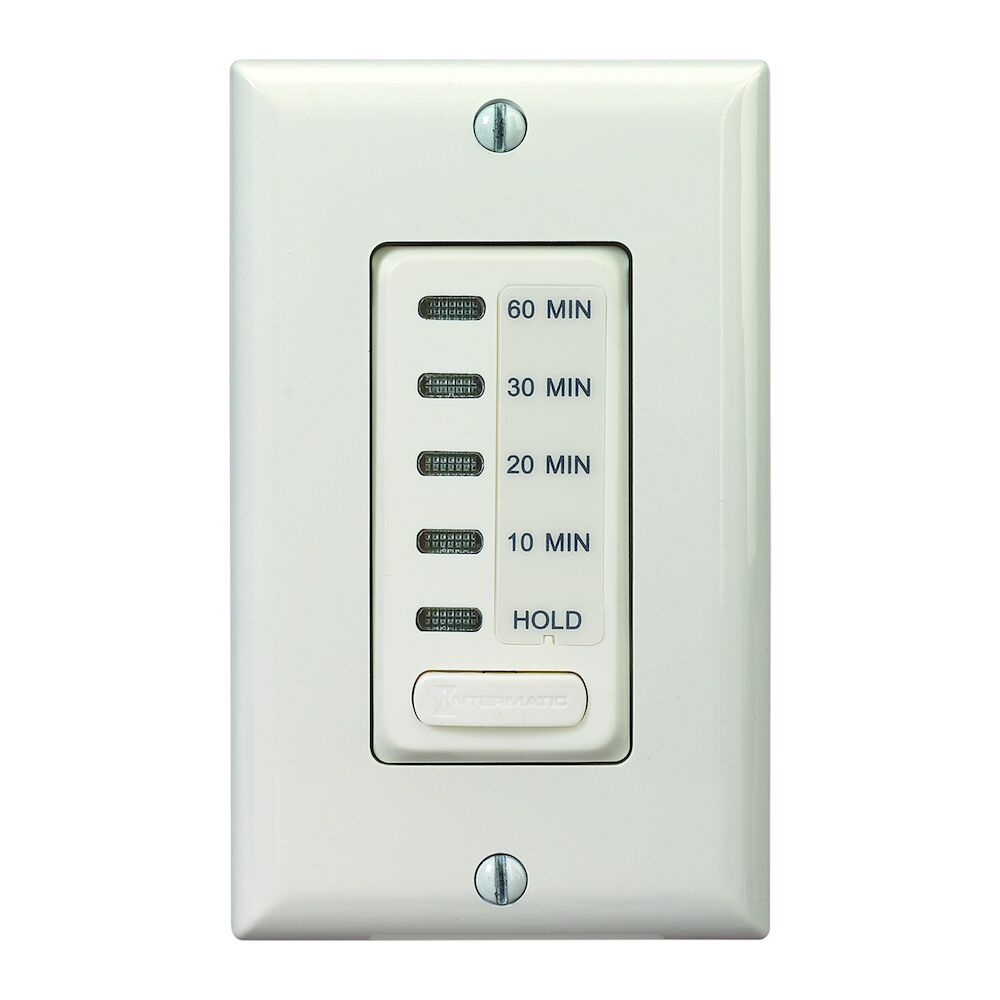

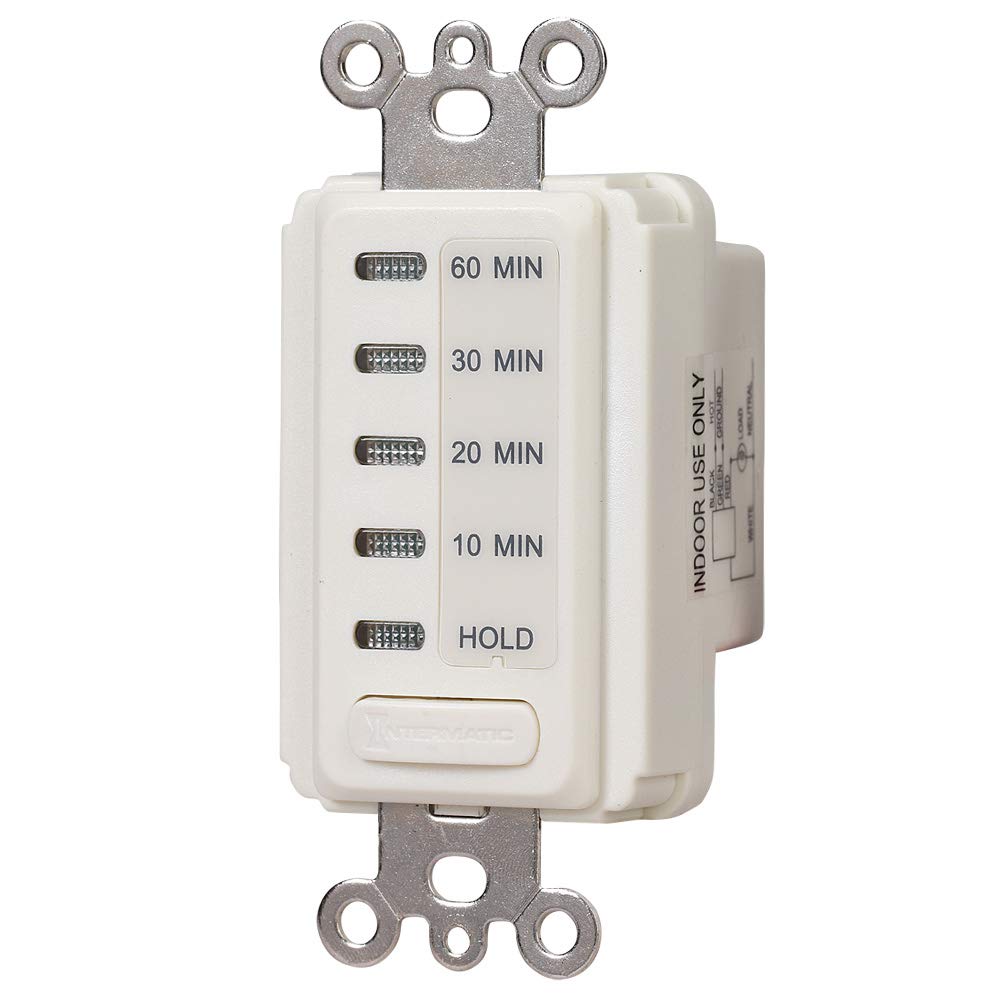

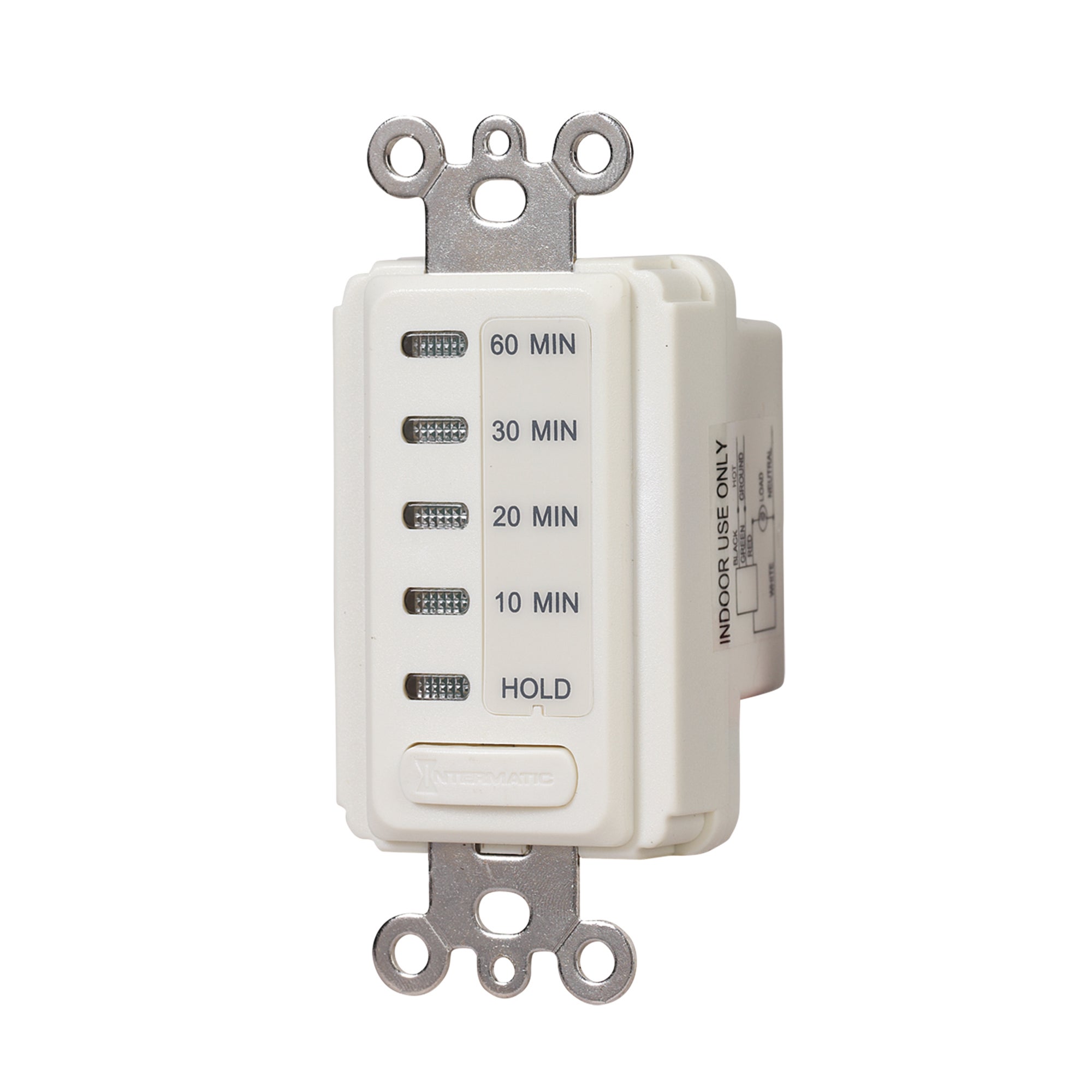

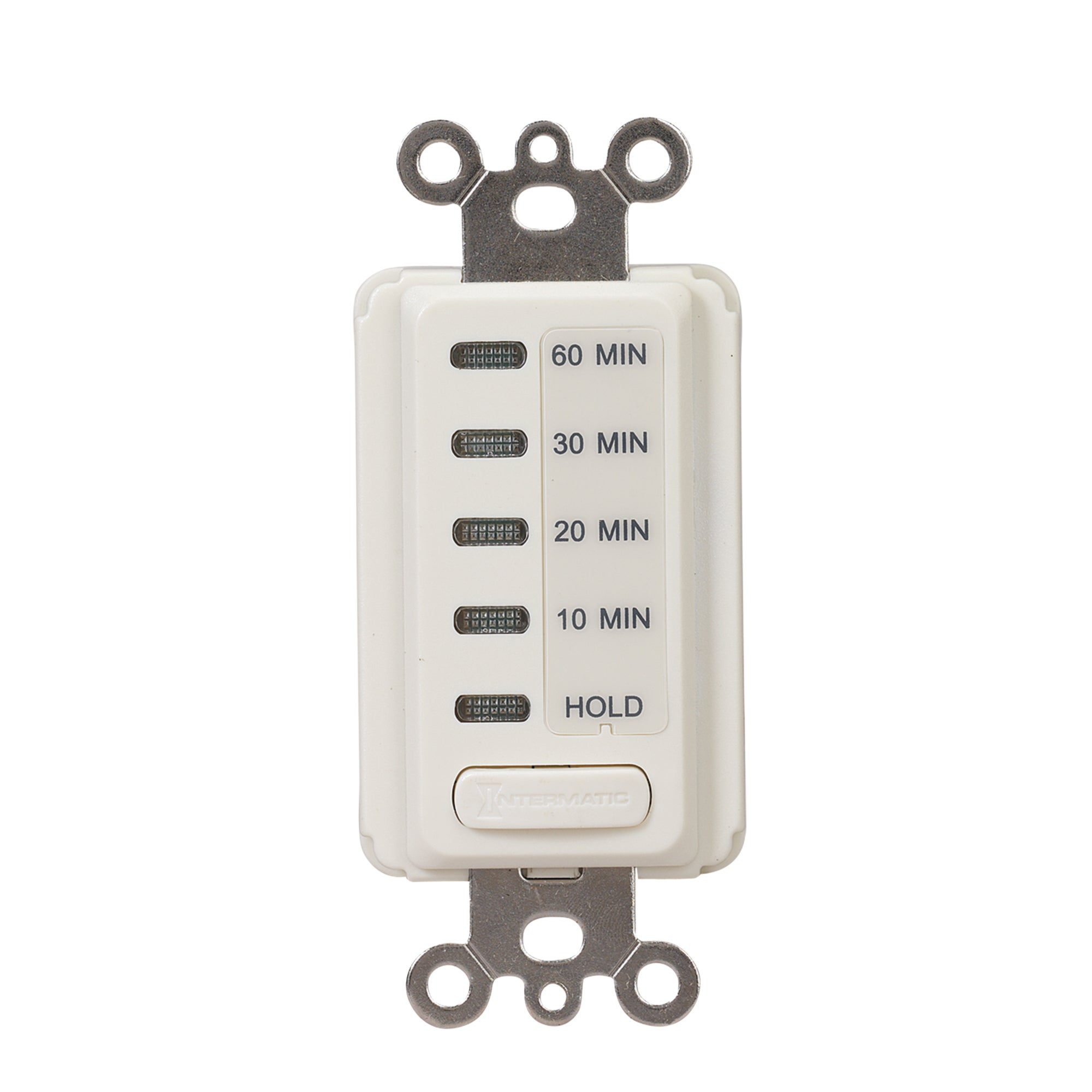

Intermatic EI210LA 10/20/30/60 Minute 120 VAC 60 Hz 1-Pole Electronic Auto-Off Timer with Hold

Product Description

The INTERMATIC EI210LA is an electronic auto-off timer designed for indoor applications. This 1-pole, 120 VAC, 15 Amp timer requires no programming, offering preset countdown times of 10, 20, 30, or 60 minutes activated by a single button. Its silent operation makes it suitable for environments where mechanical timer noise is a concern, supporting CFLs, LED lighting, fans, and HVACR systems. It is CULus Listed and operates within a temperature range of 32 to 122 degrees F.

• No programming required; preset countdown times are activated by pressing a single button.
• Provides silent operation in time ranges from 10 minutes to 1 hour.
• Single-button time selection, with some models having a HOLD mode, for continuous ON operation.

Product Highlights

Electronic auto-off timer with silent operation, single-button control, and 10/20/30/60 minute preset times, compatible with various lighting and fan loads.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: EI210LA
• Country of Origin: China

Technical Specifications

• Timer Type: Electronic Countdown Auto Shut-Off In-Wall
• Depth: 1.44 in (36.57 mm)
• Width: 1.75 in (44.45 mm)
• Switch Action: SPST-NO
• Height: 2.79 in (70.86 mm)
• Input Voltage: 120 Volt
• Wattage: 1800 Watt
• Amperage: 15 Amp
• Material: Plastic
• Certifications/Standards: CULus Listed, HVACR
• Frequency: 50/60 Hz
• Application: Indoor, CFLs Lighting, LED Lighting, Fans, HVACR, Bathroom Fans, Spas, Hot Tubs, Storage Closets and Garage Lights
• Mounting Type: Wall Mount
• Contact Rating: 8.3 A at 120 VAC (Tungsten-Incandescent), 8 A at 120 VAC (Ballast-Magnetic), 15 A at 120 VAC (Resistive-Heater), 1800 W, 500 VA
• Number of Poles: 1 Pole
• Operating Temperature Range: 32 - 122 degrees F (0 - 50 degrees C)
• Contact Configuration: 1NO/SPST
• Timing Range: 10/20/30/60 MIN
• Horsepower: 1/2 hp
• Series: EI200
• Number of Settings: 4
