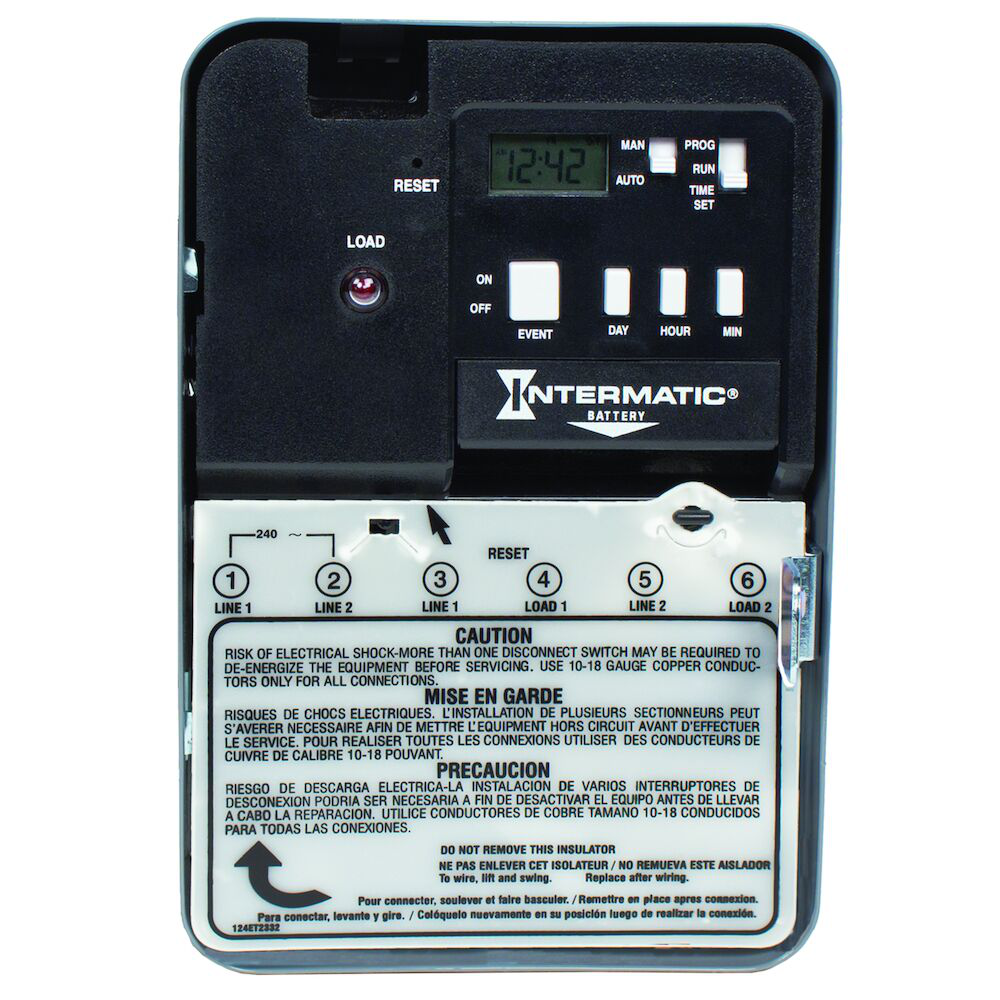

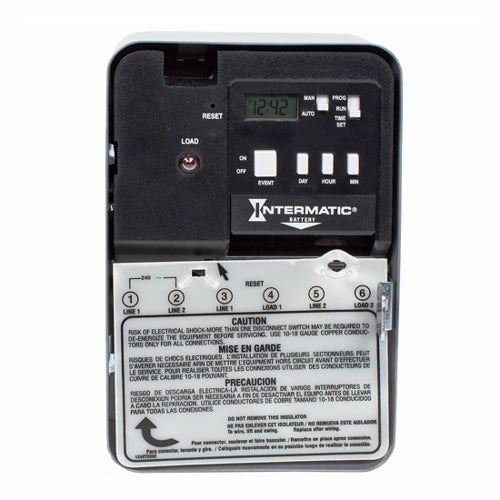

Intermatic EH40 NEMA 1 240 VAC 50/60 Hz 30 Amp DPST Electronic Water Heater Time Switch

Product Description

The Intermatic EH40 is an electronic water heater time switch designed for controlling electric water heaters. It operates at 240 VAC and features DPST technology for reliable performance. This timer allows precise programming and offers flexibility in scheduling to cut energy costs by using electricity during off-peak hours.

• 42 ON/OFF events programmable each week
• Supports 7-day scheduling for convenience
• Compatible with 240 VAC systems and rated for 30 Amps

Product Highlights

Ideal for residential and commercial applications, the EH40 is suitable for water heaters and HVAC systems, ensuring efficient energy use.

Product Information

Standard Information

• Catalog Number: EH40
• Manufacturer: Intermatic, Inc

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 30 Amps
• Horsepower: 1-1/4 hp
• Enclosure Type: NEMA 1
• Operating Temperature: -40 to 104 degrees F
• Dimensions: 7-3/4 height x 5 width x 3 depth inches
• Weight: 2.5 lbs
