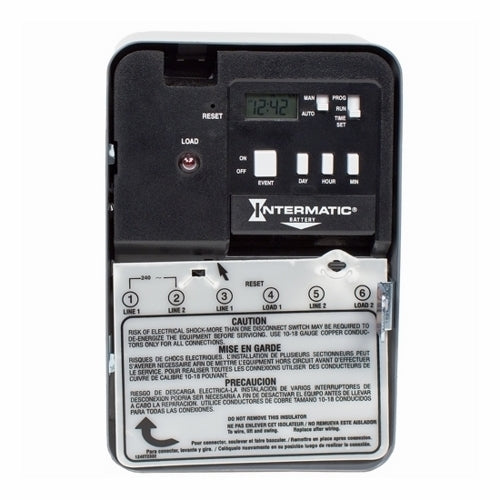

Intermatic EH40 Electronic Water Heater Time Switch 240V DPST 30 Amp

Product Description

Enhance the efficiency of your water heating systems with the Intermatic EH40 Electronic Time Switch. Offering precision control with to-the-minute accuracy, this device enables off-peak energy use, optimizing operational costs. Suitable for both 120V and 240V systems, it is versatile for different setups.

• Programmable for daily or weekly schedules to suit commercial and residential needs.
• Features DPST (double pole single throw) switching for robust operation.
• Equipped with a replaceable battery backup and LED load indicator for uninterrupted service.

Product Highlights

The Intermatic EH40 is designed with a user-friendly interface, offering 42 on/off events per week, which simplifies programming and enhances time-keeping accuracy. An external override switch allows for manual operations as needed.

Technical Specifications

Standard Information

• Amperage: 30 Amp
• Frequency: 50/60 Hz
• Temperature Range: -40 to 104 degrees Fahrenheit

Technical Details

• Enclosure Type: NEMA 1
• Mounting Type: Wall Mount
• Power Consumption: 3 Watts
• Voltage: 240V
• Switch Type: DPST
• Size: 7-3/4 inches height x 5 inches width x 3 inches depth
• Standard Certification: cCSAus Certified LR3730, HVACR
