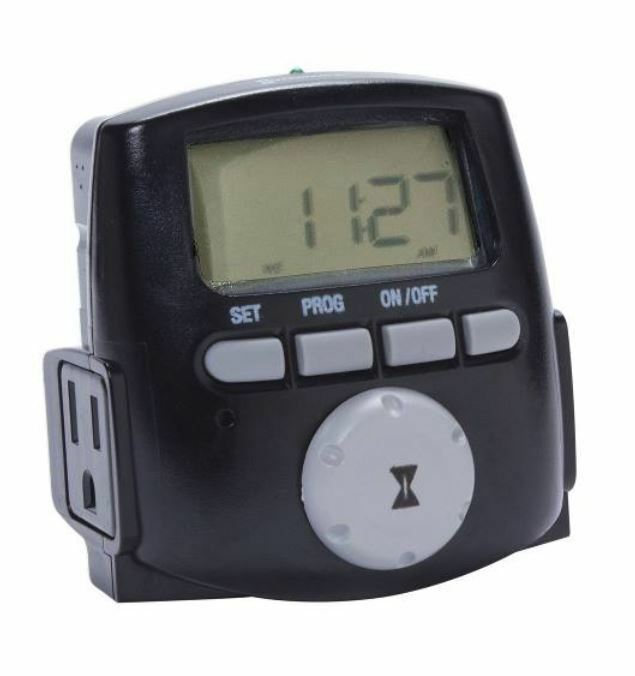

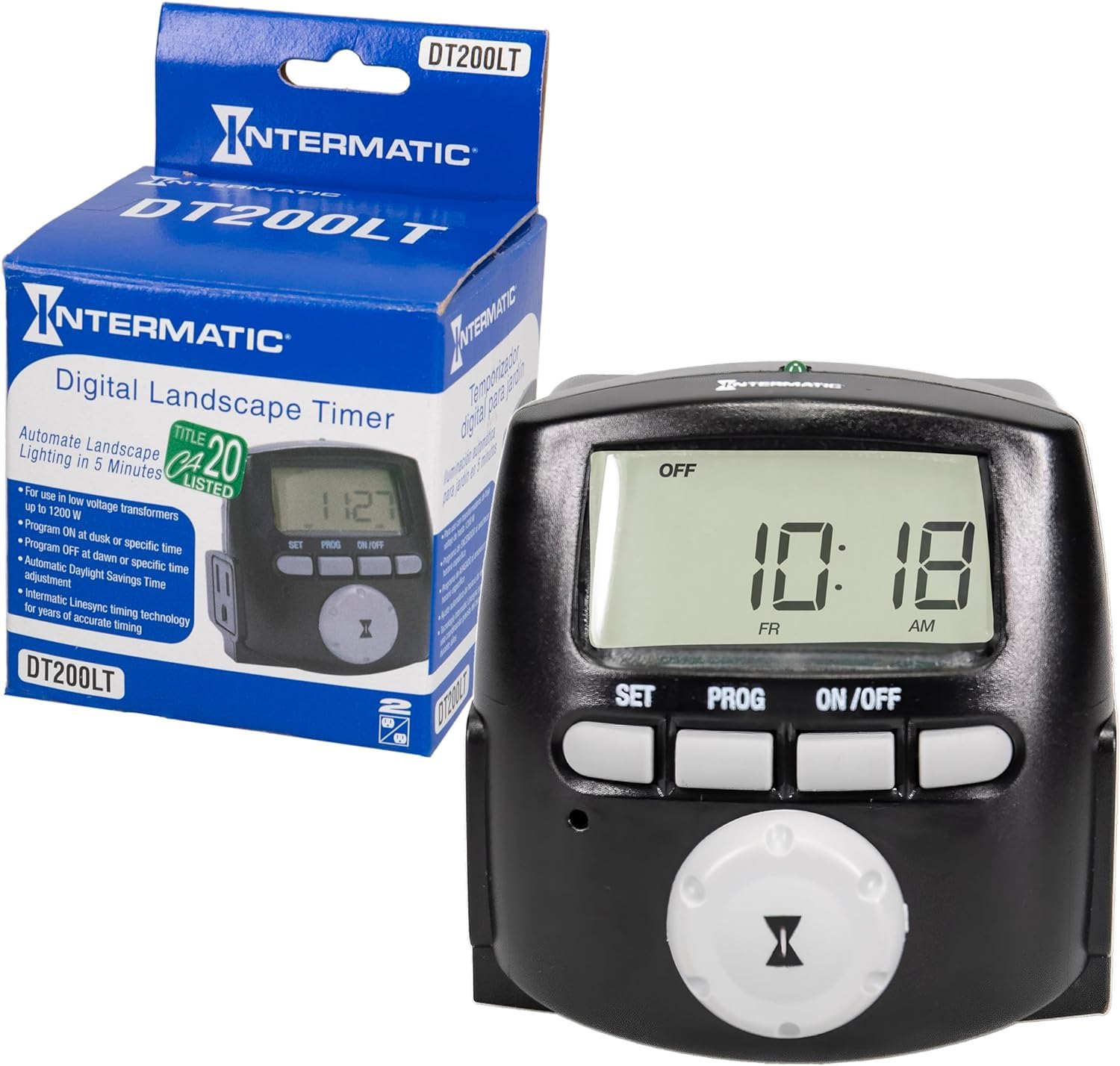

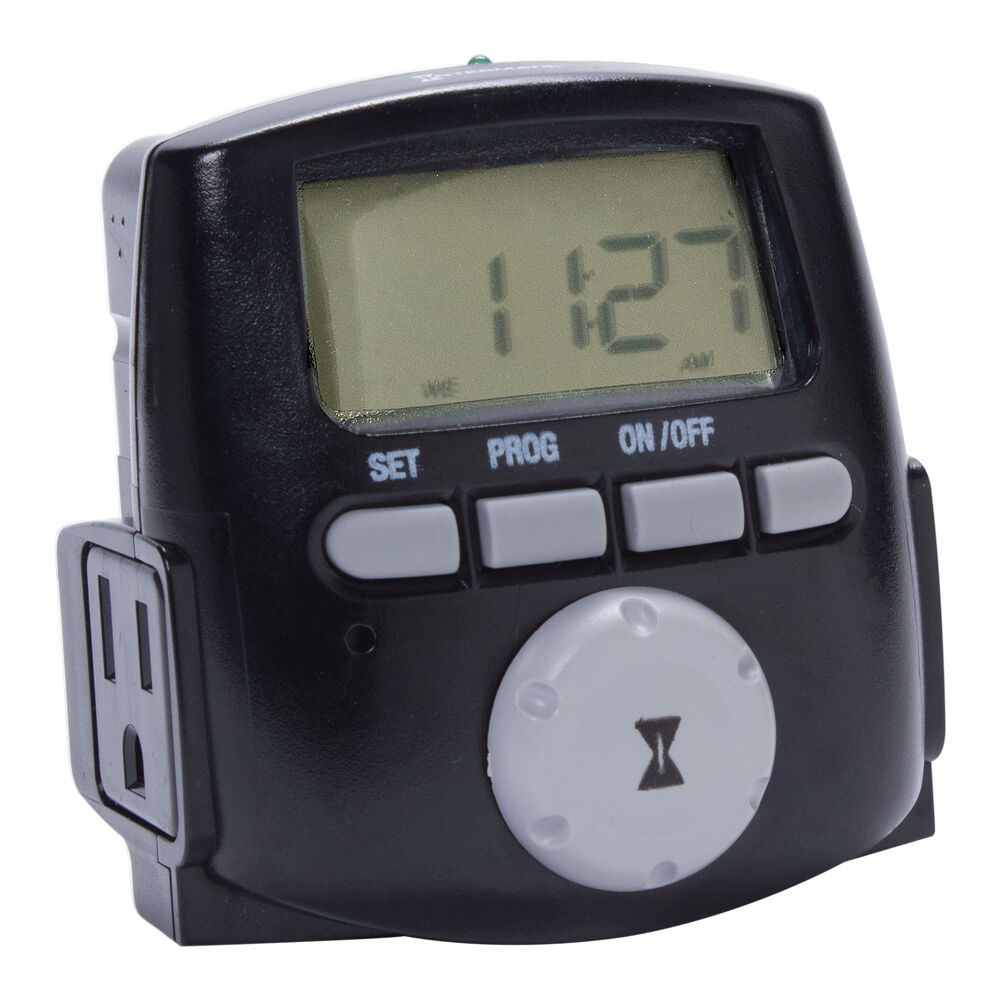

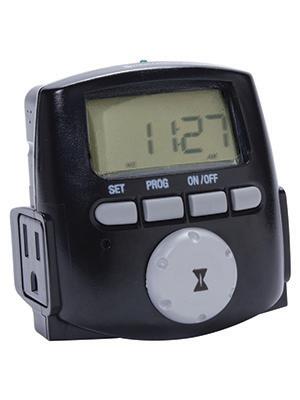

Intermatic DT200LT Int-Mat Digital Astronomic 1000 Watt 15 Amp 3 5/16 inch Width

Product Description

The INTERMATIC DT200LT is a digital 24-hour landscape timer designed for controlling low voltage transformers up to 1200W. This plug-in timer operates on 120 VAC, handles 15 Amp resistive loads, and features ON programming at Dusk or a predetermined time and OFF at Dawn or a predetermined time. It is suitable for indoor and outdoor lighting control, including landscape and water control applications.

• Rated for use in low voltage transformers up to 1200 W.
• Programs ON at dusk or a specific time and OFF at dawn or a specific time.
• Features automatic Daylight Saving Time adjustment.

Product Highlights

The INTERMATIC DT200LT provides precise 24-hour digital control for landscape and outdoor lighting, ensuring energy efficiency and convenience with astronomic features.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: DT200LT
• Country of Origin: Mexico

Technical Specifications

• Type: Plug-In Timer
• Product Depth: 2.224 Inch
• Product Width: 3 5/16 in
• Product Height: 3.188 Inch
• Input Voltage: 120 VAC
• Tungsten Wattage: 1000 Watt
• Resistive Amperage: 15 Amp
• Applications: Indoor Lighting Control, Landscape Water Control, Outdoor Lighting Control, Circulating Pumps, Low Voltage Transformer Control (up to 1200W)
• Operating Cycles: 7-day
• Operating Temperature: -40 to 122 °F
• Transformer Rating: 1200 W
• Battery Type: LR44
• Battery Backup Duration: 3 months
• Enclosure Rating: NEMA 3R
• Motor Horsepower: 1/2 hp
• Mechanism Type: Digital
• Certifications: cULus Listed, Title 20 Compliant
• Usage Environment: Outdoor
• Frequency: 60 Hz
• Inductive Amperage: 12 A
• Number of Plugs: 2
• Plug Configuration: 5-15
• Operation Features: Astronomic
• Material: Plastic
• Number of Settings: 5
• Smart Home Compatibility: Not Smart Home Compatible
• Screen Size: 2 Inches
• Power Consumption: 2.5W max
• Series: DT200LT
• Number of Outlets: 2
