Intermatic CT2000 Percentage Cycle Time Switch 120/240 VAC 60 Hz 20 Amp SPDT

Product Description

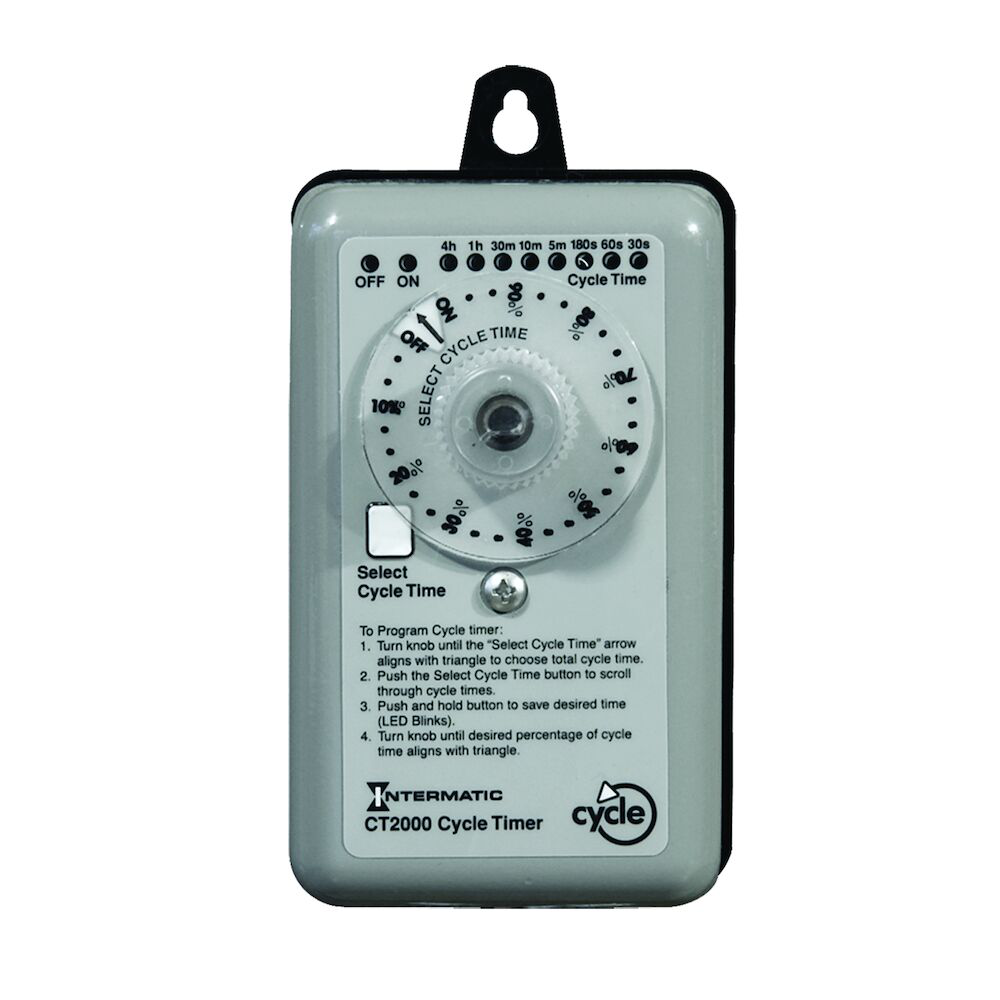

The Intermatic CT2000 Percentage Cycle Time Switch offers a robust solution for automating the on/off cycles of electrical devices in industrial and residential settings. Crafted with an aluminum NEMA 3R enclosure, it ensures durability and protection against environmental conditions. This timer is ideal for fans, misters, foggers, feeders, process equipment, oil pumps, irrigation systems, nurseries, and HVACR applications.

• Field-adjustable with multiple cycle duration options from 30 seconds to four hours.
• Equipped with a manual override function for flexible control.
• Designed for indoor and outdoor use with a weather-resistant casing.

Product Highlights

Intermatic's CT2000 is engineered for precision and reliability, providing users with extensive control over their systems. The upfront control button simplifies operation, and user settings are saved in non-volatile memory for consistency.

Technical Specifications

• Model: CT2000
• Type: Percentage Cycle
• Voltage: 120/240 VAC
• Amperage: 20 Amp
• Enclosure: NEMA 3R Aluminum
• Switch Type:: SPST
• Mounting Type:: Wall Mount
• Operating Temperature: 14 - 129 degrees F, -10 to 54 degrees C
