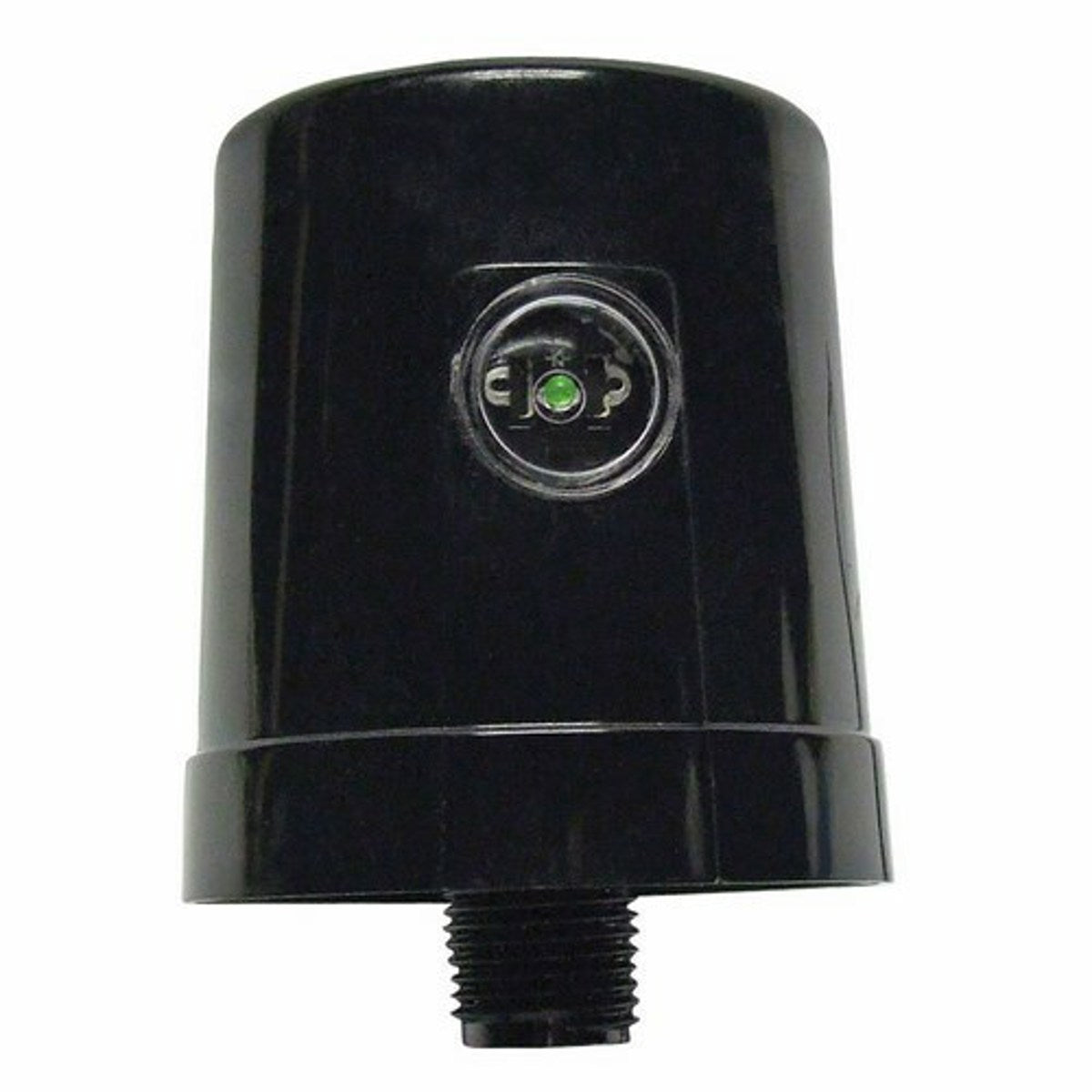

Intermatic AG6503C3 Surge Protective Device 347/600 VAC 3-Pole Surge Protection

Product Description

Intermatic AG6503C3 is a robust surge protective device engineered for both Type 1 and Type 2 applications, suitable for 347/600 VAC, 50/60 Hz, three-phase service. This device is designed to safeguard outdoor installations like utility meter cabinets and after service entrances, making it an essential component in maintaining system integrity and continuity.

• Utilizes TPMOV surge protection technology for safety and reliability.
• Equipped with a visual green LED indicator for protection status confirmation.
• Features a weatherproof NEMA 4X polycarbonate enclosure to withstand harsh environments.

Product Highlights

The Intermatic AG6503C3 offers six modes of protection, ensuring comprehensive coverage against surges. It is UL Listed to ANSI/UL 1449 3rd edition and CSA certified, making it a dependable choice for outdoor applications like HVACR controls, lighting, and motors.

Product Information

Standard Information

• Brand: Intermatic
• Series:
• Enclosure: NEMA 1/2/4/4X

Technical Specifications

• Electrical Rating: 347/600 VAC
• Frequency: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 4
• Operation Temperature Range: -13 to 140 degrees Fahrenheit
• Protection Modes: L-L/L-G/L-N
• Dimensions: 1/2 inch height
