Intermatic AG2083C3 DEVICE PROT SRG 120/208VAC 50/60HZ

Product Description

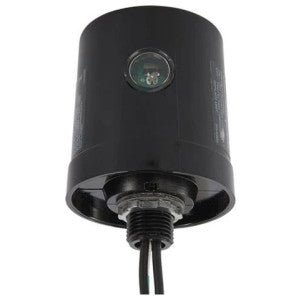

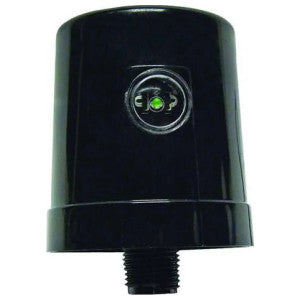

The Intermatic AG2083C3 is a surge protective device designed for 120/208 VAC applications. It operates at a frequency of 50/60 Hz and features three poles and four wires. This device is engineered to protect electrical systems against surges, ensuring the integrity of sensitive equipment.

• Six modes of protection
• TPMOV surge protection technology
• Green LED protection indicator

Product Highlights

The AG Series provides advanced surge protection, crucial for outdoor installations before service entrances and utility meter cabinets. It is suitable for various applications including irrigation equipment, farm equipment, pumps, and HVACR controls.

Product Information

Standard Information

• Brand: Intermatic
• MPN: AG2083C3

Technical Specifications

• Electrical Rating: 120/208 VAC
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 4
• Short Circuit Current Rating: 50 kA
• Nominal Discharge Current: 20 kA
• Operating Temperature Range: -13 to 140 degrees F
• Environmental Conditions: NEMA 1/2/4/4X enclosure, lead terminal
• Material: Polycarbonate
• Green LED Indicator: Yes
