Intellinet 716376 Vertical Wall Mount Rack Bracket for 19 inches Equipment, 6U

Product Description

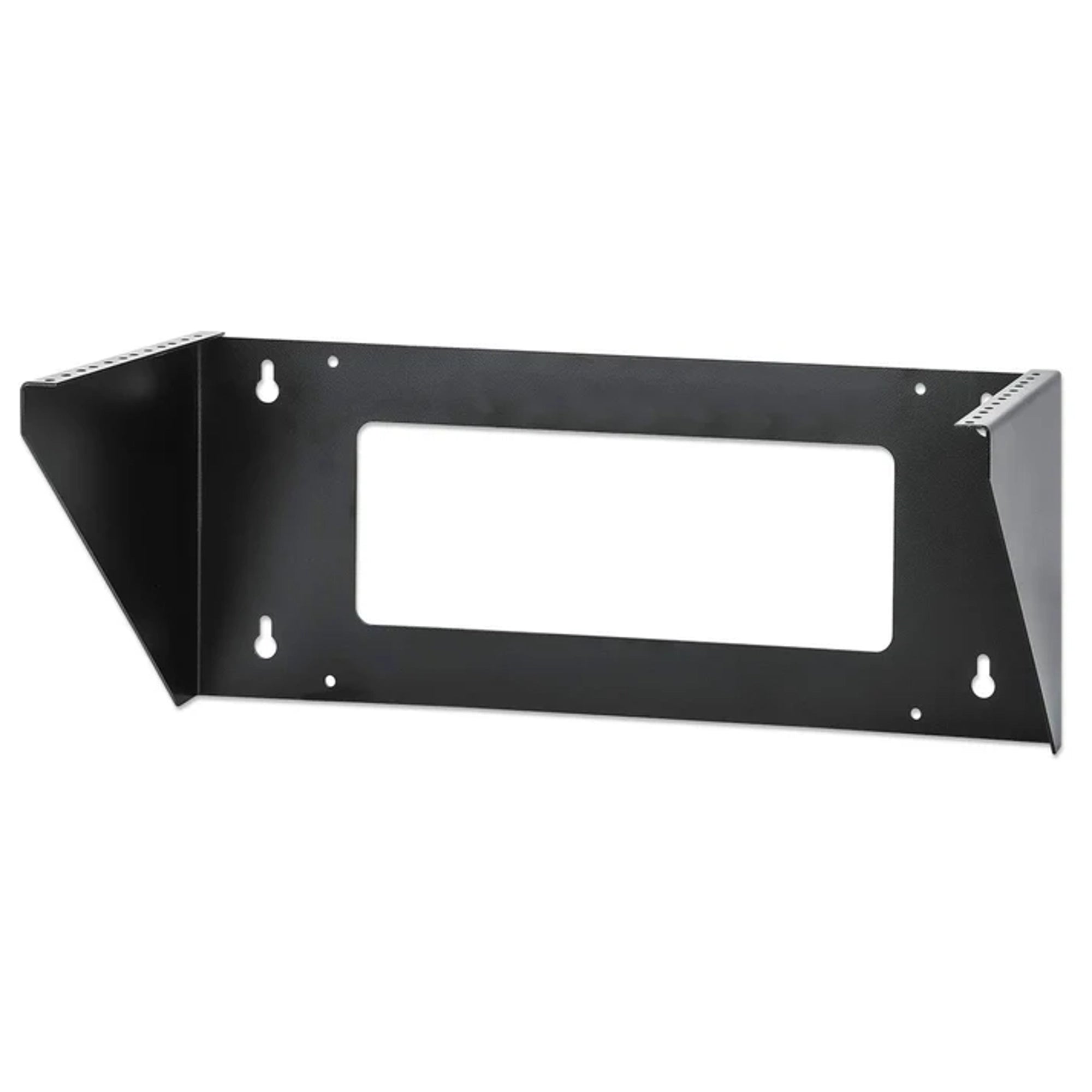

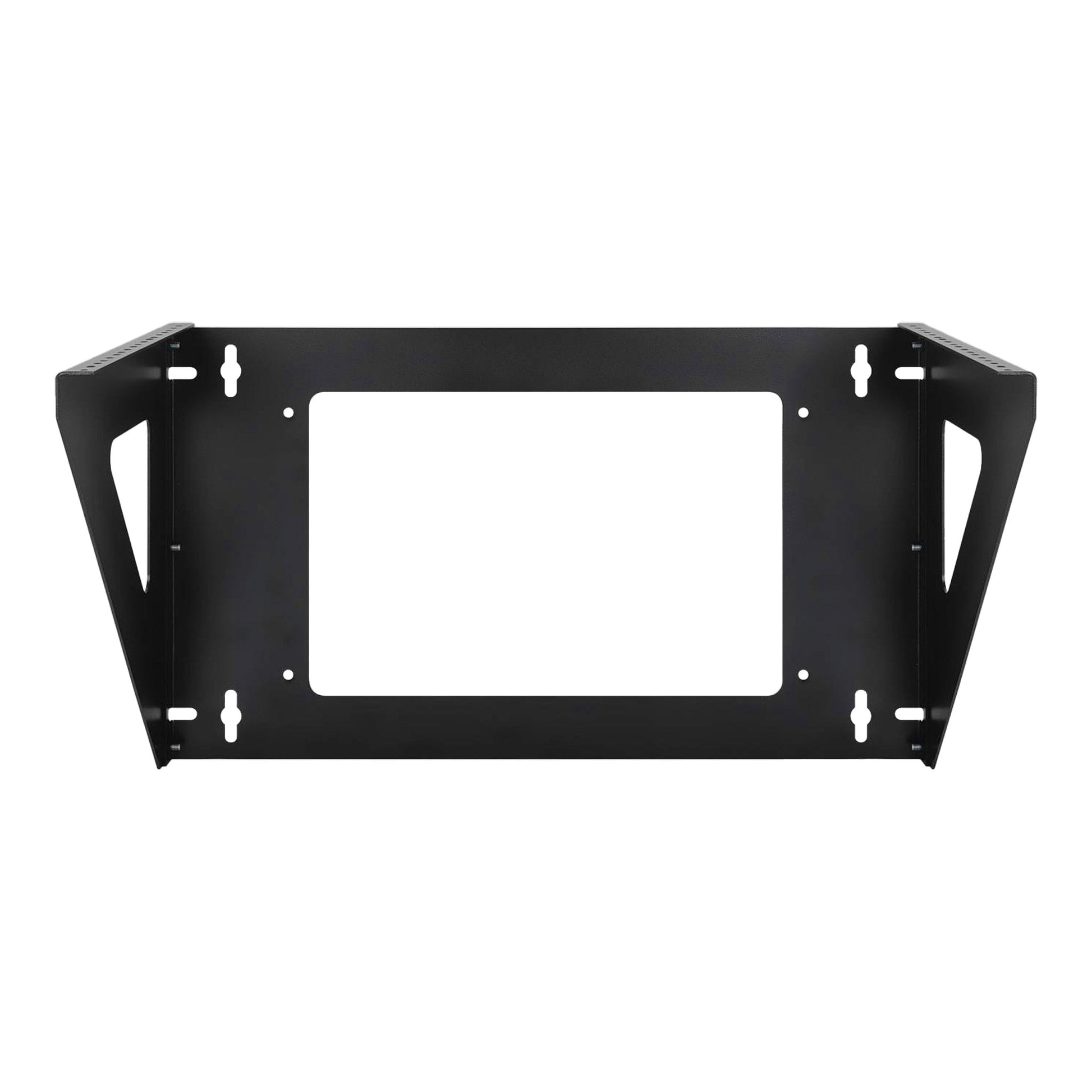

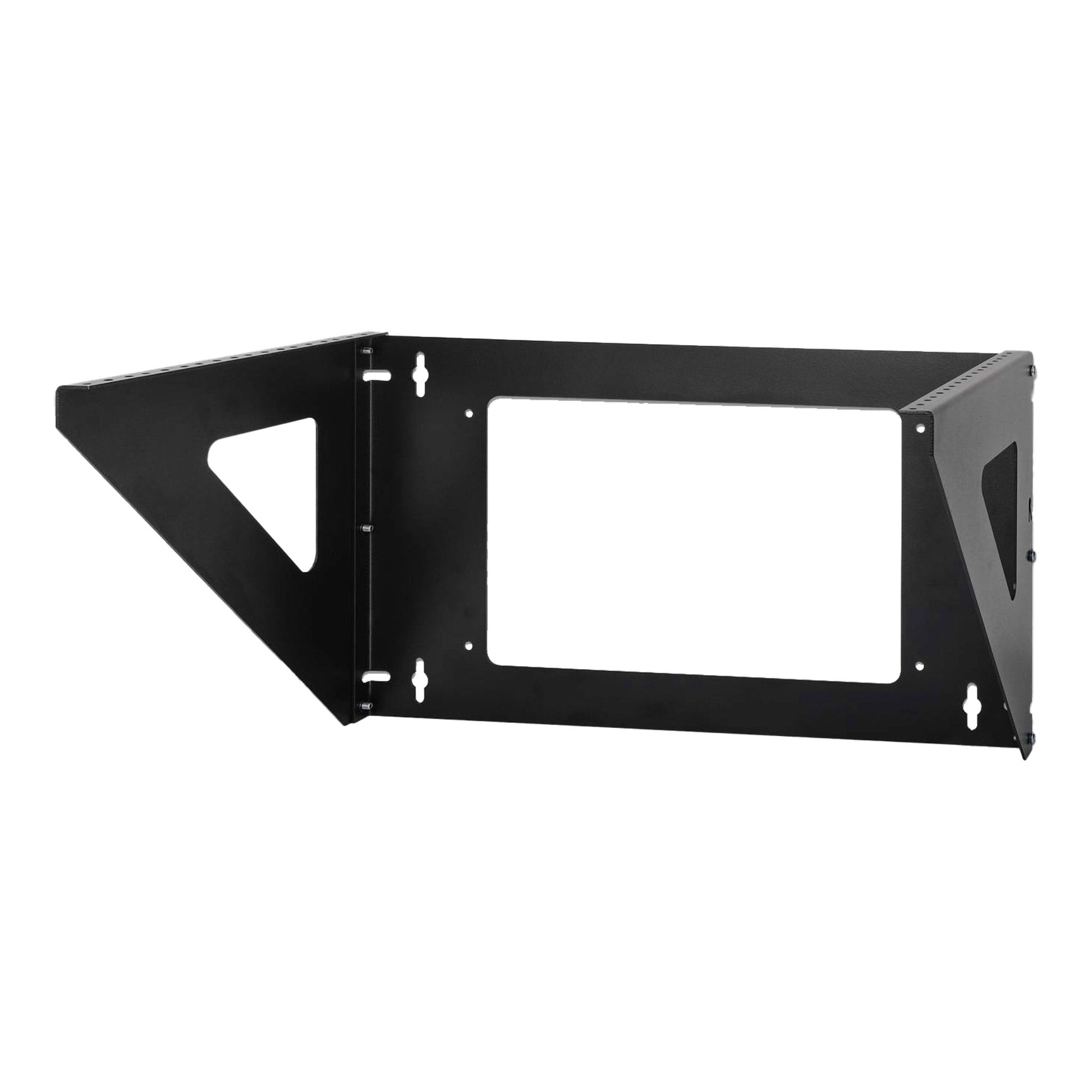

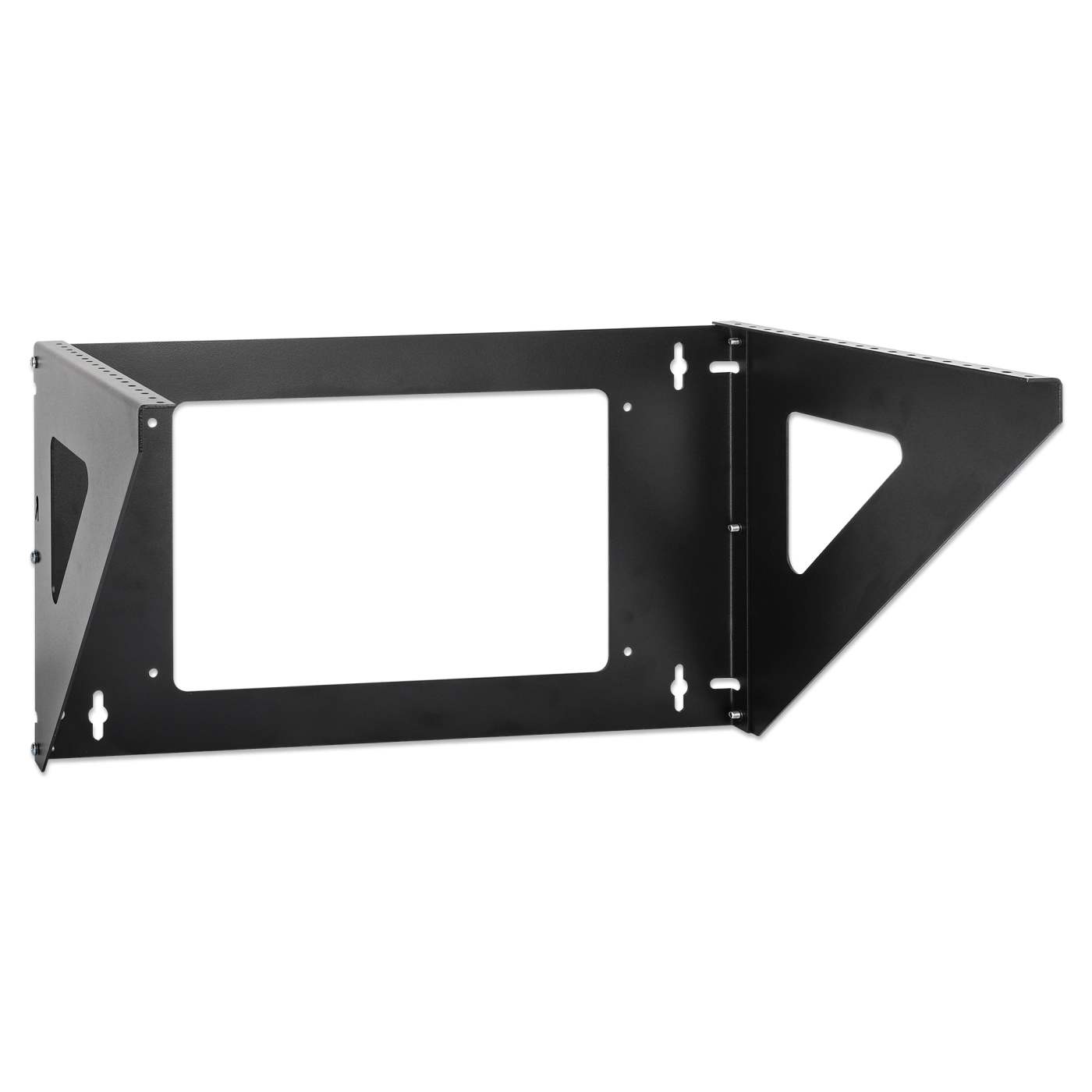

The INTELLINET 716376 19" Vertical Wall Mount Rack Bracket provides a rackmount solution for IT and AV equipment where space is limited. Mount network equipment such as PDUs, switches, and patch panels against the wall or horizontally under a desk. Constructed from heavy-duty cold-rolled steel, this bracket adheres to EIA-310 19in rack standards and supports up to 135 lbs.

• Allows space-saving vertical rackmount installations ideal for network equipment like patch panels, PDUs, switches, and more

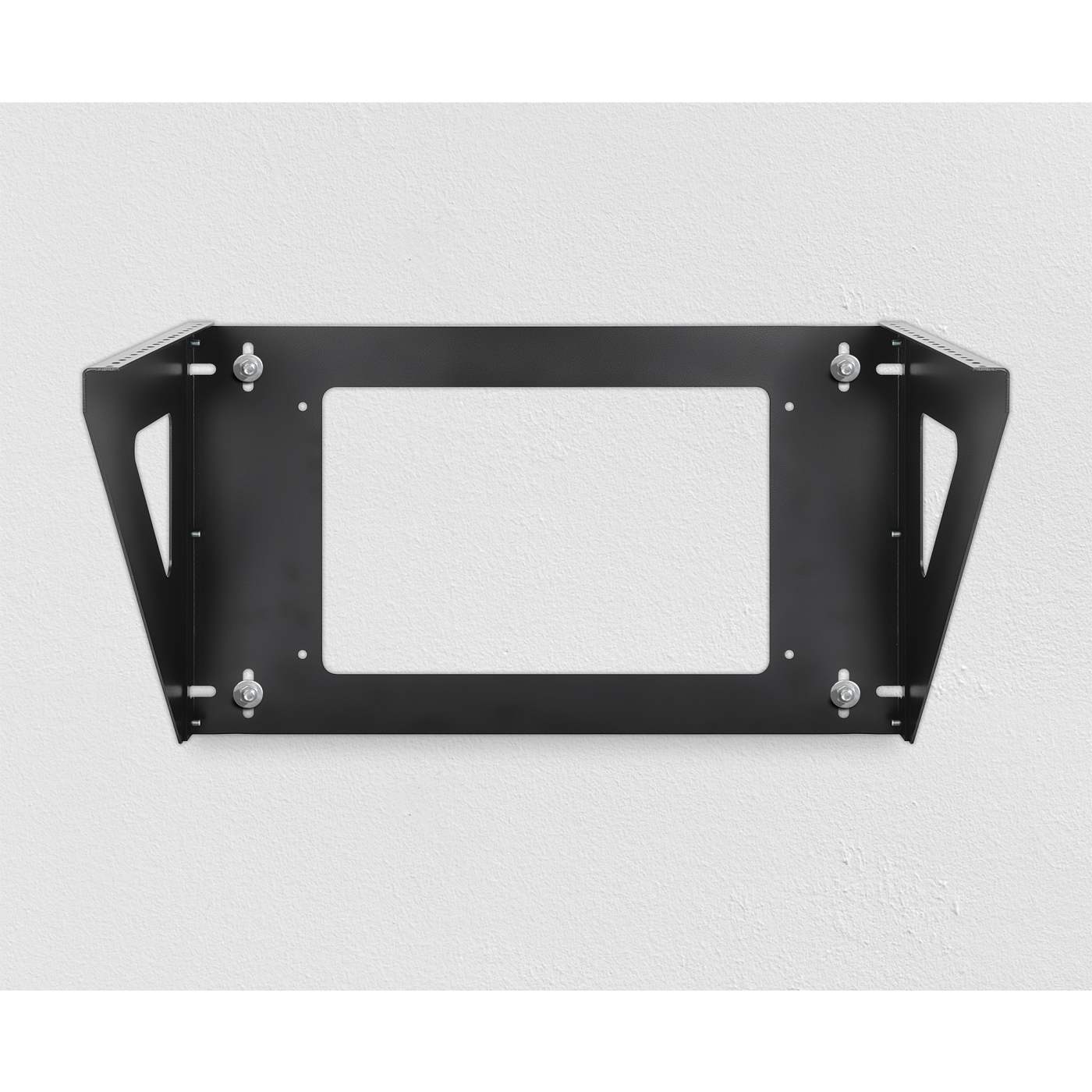

• Mountable flush with the wall, great for network areas with limited floor space (wall-mounting hardware included)
• Open frame for good airflow and easy access to equipment and cabling

Product Highlights

This cost-effective solution ships fully assembled and includes mounting screws. It is suitable for environments that do not require a lockable network cabinet.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 716376

Technical Specifications

• Standards and Certifications: ANSI/EIA 310-E, IEC 60297-3, RoHS
• Dimensions (D x W x H): 11.18 x 19.17 x 7.68 in. (284 x 487 x 195 mm); 6U
• Maximum load capacity: 135 lbs. (61 kg )
• Material: cold-rolled SPCC steel, 0.1 in. (2 mm)
• Rack Units: 6U
• Mounting: 19" EIA Compliant, Vertical Wall Mount or Horizontal Under-Desk
• Weight Capacity: 135 lbs (61 kg)
• Features: Open Frame, 16" stud spacing mounting holes
• Includes: Mounting Screws (#10-12)
• Type: Skeleton
• Vertical: Yes
• NDAA Compliance: Yes
• Width In Inches: 19"
• Spacing: 6U
• Width: 19.17 in. (486.92 mm)
• Depth: 7.68 in. (195.07 mm)
• Height: 11.18 in. (283.97 mm)
