Product Description

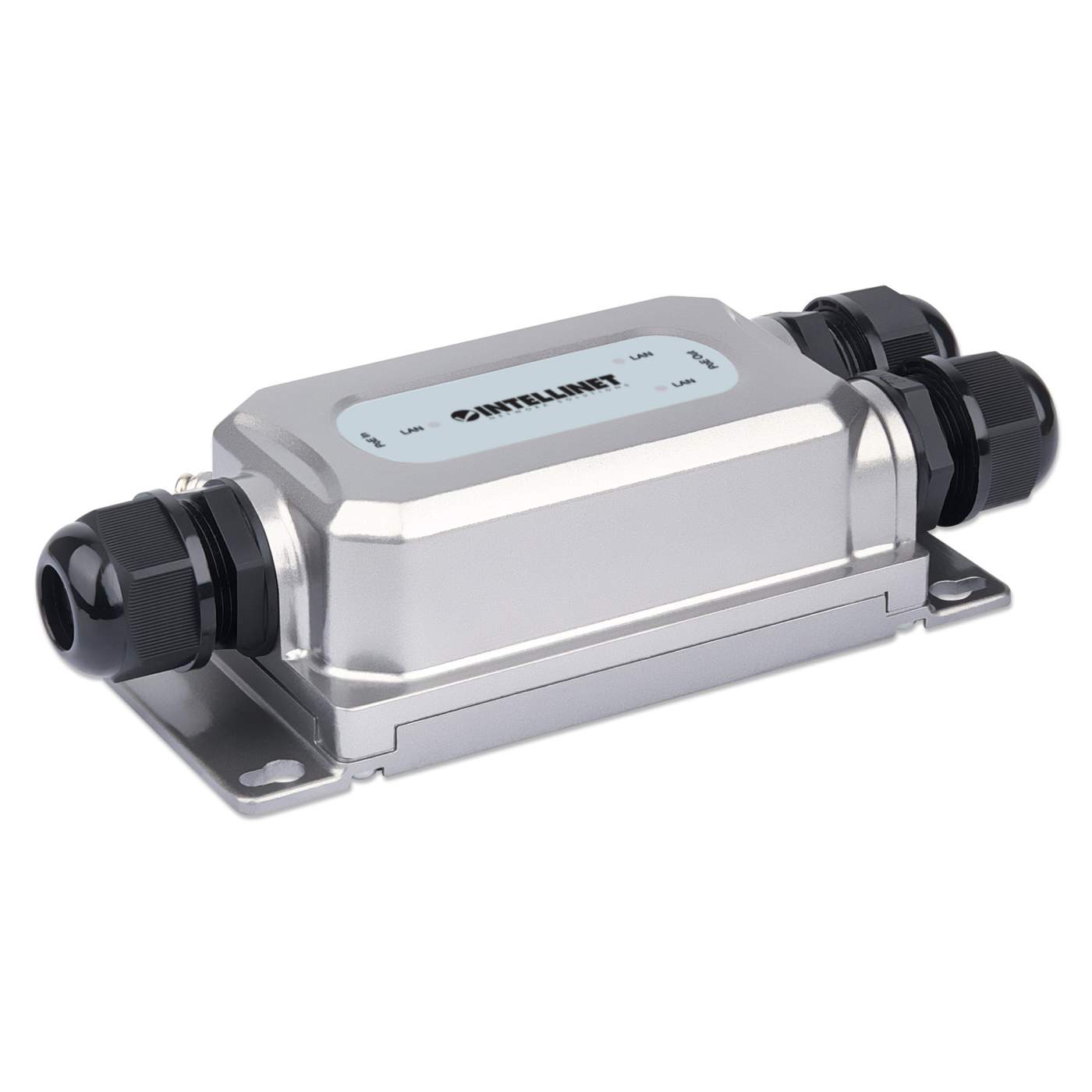

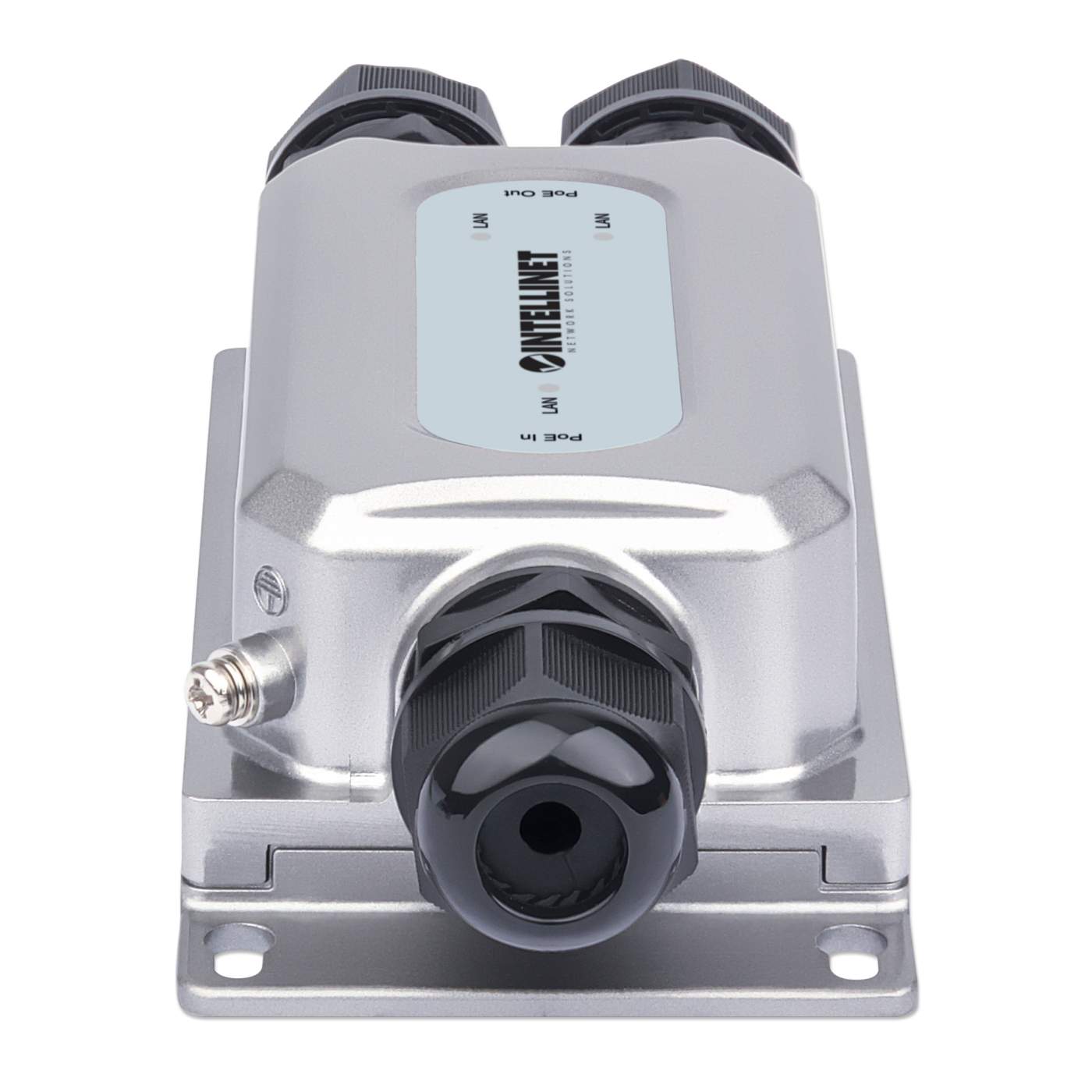

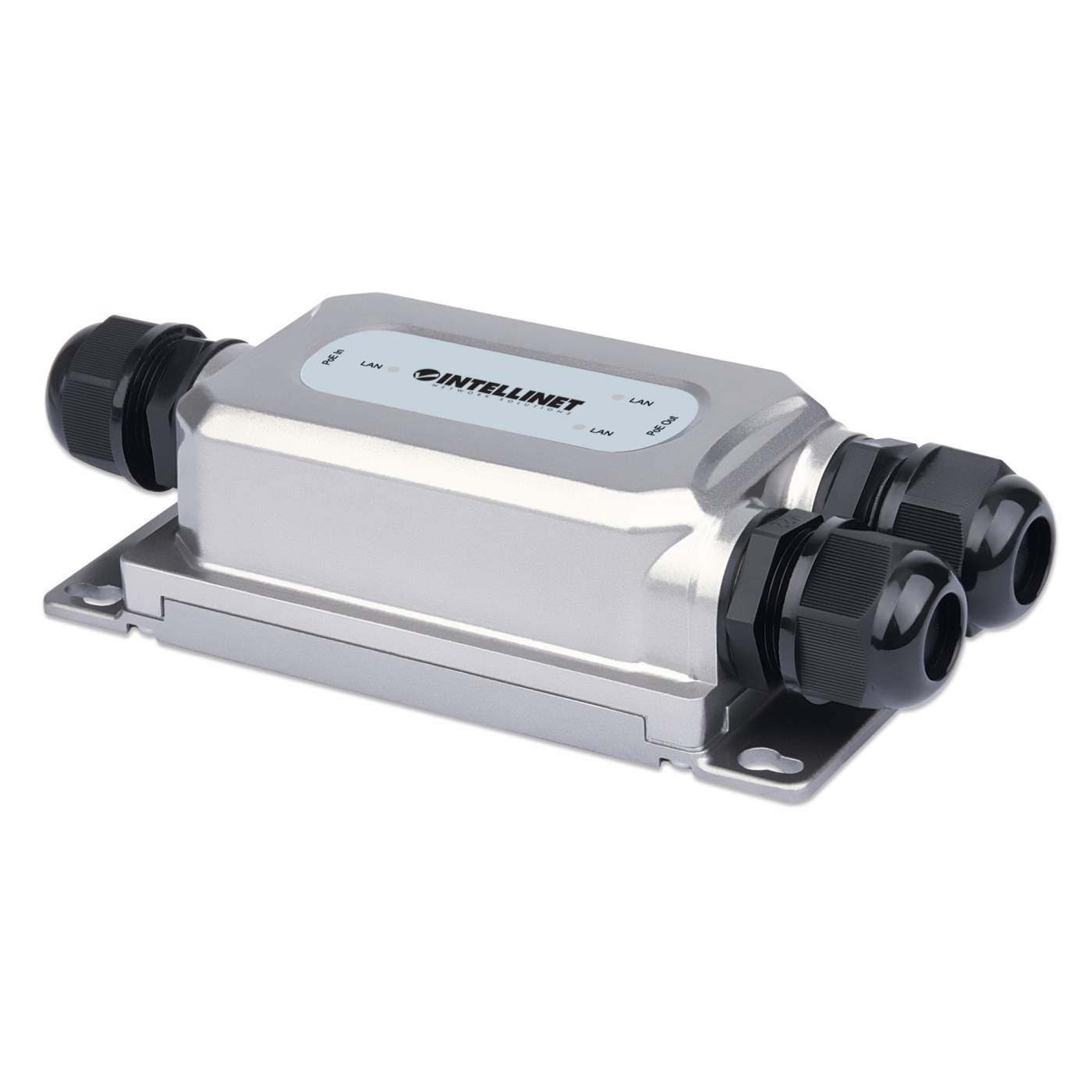

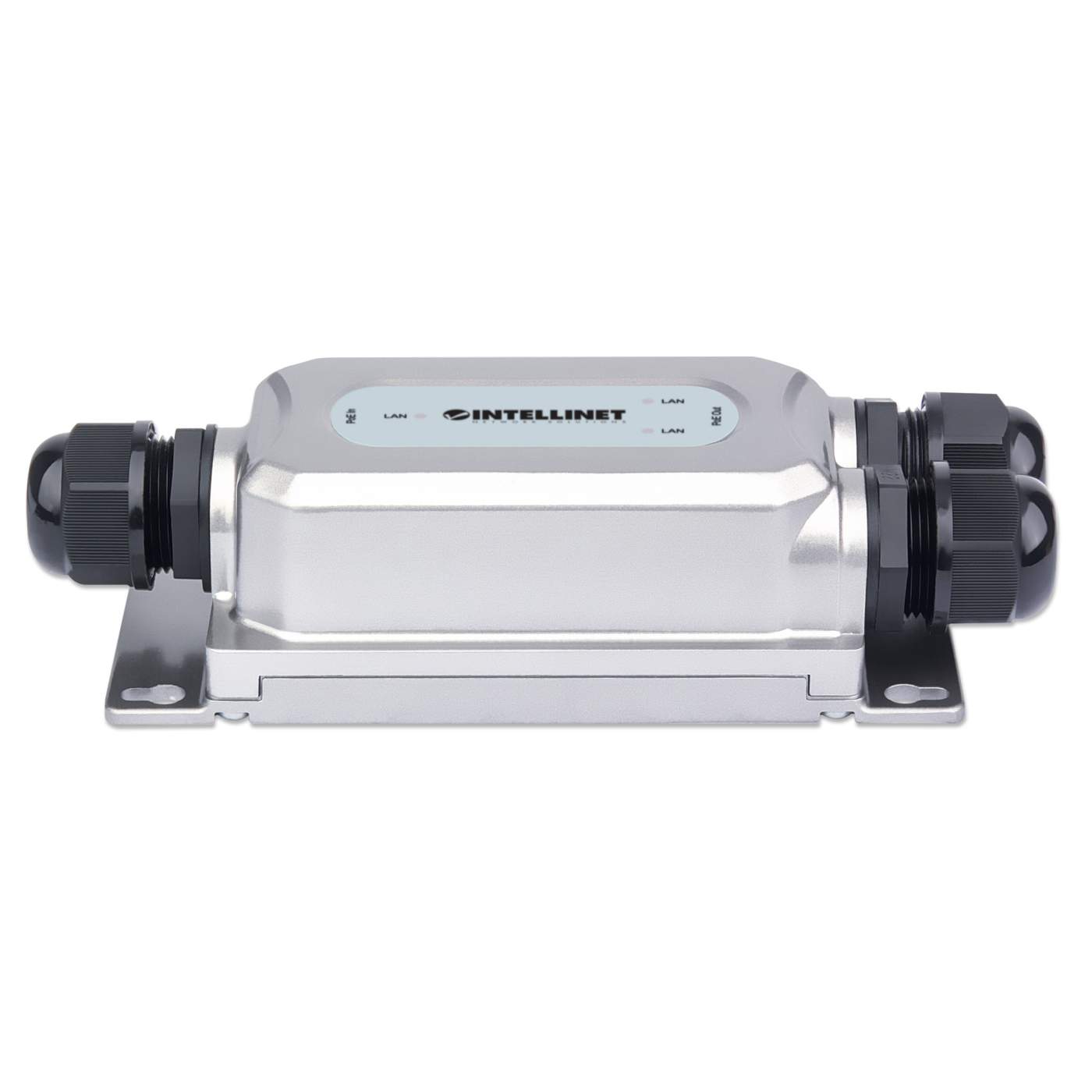

The Intellinet 561648 2-Port Outdoor Vandalproof Gigabit PoE++ Extender doubles the range of two Gigabit Power over Ethernet connections, even in harsh outdoor conditions. This extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to output devices via Cat5e or Cat6 cable. It supports the IEEE 802.3bt protocol and forwards data at Gigabit speeds.
- Doubles the range of two Gigabit Power over Ethernet connections
- Suitable for a wide variety of environments with weatherproof IP67 and vandal-proof IK10 rating
- Supports the IEEE 802.3bt protocol over four pairs (4PPoE)
Product Highlights
Extends PoE connections, supports Gigabit speeds, and is built for outdoor use with its vandal-proof and waterproof design.
Product Information
Standard Information
-
Brand: INTELLINET
-
Manufacturer Part Number: 561648
-
Country of Origin: China
Technical Specifications
-
Depth: 1.7"
-
Width: 2.9"
-
Height: 5.9"
-
Brand Name: Intellinet
-
Form Factor: Wall Mount
-
Input Ports: 1 x RJ-45
-
Manufacturer: IC INTRACOM
-
Output Ports: 2 x RJ-45
-
Product Type: PoE++ Extender
-
Input Voltage: 57V DC
-
ADI Part Number: 42-561648
-
Protection Type: Over Voltage, Short Circuit, Surge Protection
-
Maximum Output Power: 60 W
-
Manufacturer Part Number: 561648
-
Standards: IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3bt (Ultra PoE++/4PPoE Power over Ethernet)
IEEE 802.3i (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full duplex and flow control)
IEEE 802.3u (100Base-TX Fast Ethernet)
-
Media support: - 10Base-T Cat5e UTP/STP RJ45, 8 pin
- 100Base-TX Cat5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
-
Ports: - One RJ45 10/100/1000 Mbps input port
- Two RJ45 10/100/1000 Mbps PoE output ports
-
MAC address table: 2048 entries
-
Buffer memory: 256 kB
-
Backplane speed: 6 Gbps
-
Switch architecture: store and forward
-
Certifications: FCC Class A, CE, RoHS
-
PoE Pinout: - Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)
-
Max PD output power: 30 W per port, 44 - 55 VDC
-
Input power: IEEE 802.3bt/at/af compliant PSE, 95 W max., 44 - 57 VDC
-
IEC ratings: IP67 (weatherproof) and IK10 (vandalproof metal housing)
-
Suitable network cable diameter: 5.5 mm max.
-
Operating temperature: -20 - 60°C (-4 - 140°F)
-
Storage temperature: -40 - 80°C (-40 - 176°F)
-
Operating humidity: 10 - 90% RH, non-condensing
-
Storage humidity: 5 - 90% RH, non-condensing
-
Hardware Interface: Ethernet
-
Compatible Devices: Internet Protocol Camera
-
Data Link Protocol: Gigabit Ethernet, IEEE 802.3
-
Data Transfer Rate: 1000 Megabits Per Second
-
Max Range: 656 ft total link length
-
Housing: IK10-rated metal; IP67 waterproof/dustproof
-
Data Protection: Short-circuit, overload, high-voltage and surge protection (6 kV)
-
Operating Temp: –4 °F to 140 °F; Storage: –40 °F to 176 °F
-
Humidity: 10–90 % RH non-condensing (operating); 5–90 % (storage)
-
Mounting: Wall holes; earthing kit included
-
Mount Type: Wall Mount
-
Country of Origin: CN
-
Power Input: PoE++ up to 95 W (44–57 V DC)
-
Power Output: Up to 30 W per port, 60 W total
