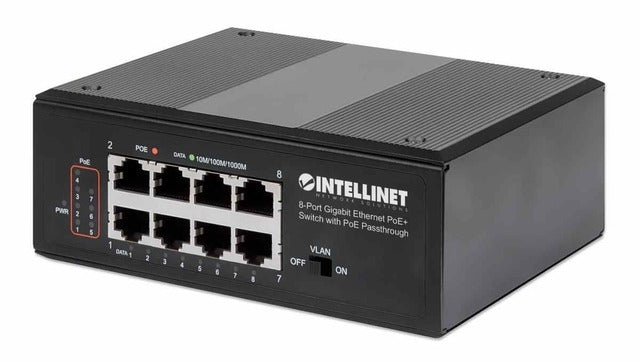

Intellinet 561624 8-port Gigabit Poe+ Switch 120W Din-rail

Product Description

The INTELLINET 561624 is an 8-port Gigabit Ethernet PoE+ switch designed for installations where a direct AC power source is unavailable or impractical. One PD (Powered Device) port accepts up to 95 watts of PoE power input from an upstream PSE switch or injector, eliminating the need for a local power adapter. The remaining seven ports operate as PSE (Power Sourcing Equipment) outputs, delivering PoE or PoE+ power to connected devices such as IP cameras, access points, and VoIP phones. Total PoE power budget reaches 120 watts across all downstream ports. The unit mounts on standard DIN rail, making it well suited for control panels, enclosures, and compact equipment rooms.

The 561624 is intended for commercial and light industrial network deployments where space is limited and daisy-chained PoE distribution is required. Typical applications include security camera systems, wireless access point distribution, and building automation networks. The DIN-rail form factor suits electrical panels and industrial enclosures where rack space is not available. Network technicians and low-voltage integrators are the primary installers for this type of switch.

Key Features

• PoE passthrough design: accepts up to 95W PoE input on one PD port, no local AC required
• Seven PSE PoE+ output ports for powering downstream IP devices
• 120W total PoE power budget across all downstream ports
• IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) compliant on all PSE ports
• All 8 ports support Gigabit Ethernet (10/100/1000 Mbps)
• DIN-rail mount for panel and enclosure installations

Compatibility

Designed as an OEM-style replacement or direct-fit unit for DIN-rail-mounted Gigabit PoE+ switch applications requiring PoE passthrough power input.

Installation Notes

Installation should be performed by a qualified low-voltage network technician or licensed electrician familiar with PoE infrastructure and NEC low-voltage wiring requirements. Before connecting or disconnecting ports, power down the upstream PSE source feeding the PD input port. Verify that the combined PoE draw of all downstream devices does not exceed the 120W power budget before commissioning. Secure the unit firmly to a grounded DIN rail and confirm adequate enclosure ventilation to prevent thermal buildup.

Technical Specifications

• Total Ports: 8
• Port Speed: Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input (PD Port): 95 watts maximum
• PoE Output Ports: 7 PSE ports
• PoE Power Budget: 120 watts
• PoE Standard: IEEE 802.3at (PoE+) and IEEE 802.3af (PoE)
• Mounting: DIN-Rail

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 561624
