INTELLINET 560672 5-Port Fast Ethernet Switch

Product Description

The INTELLINET 5-Port Fast Ethernet Switch 560672 connects up to five Ethernet devices. It supports speeds of 10 megabits per second to one hundred megabits per second. The switch features auto-sensing ports for efficient network performance. Each port includes Auto MDI/MDI-X crossover, eliminating the need for special uplink cables. This switch is designed for plug-and-play installation, requiring no setup.

• Five 10/100 Mbps auto-sensing ports.
• Auto MDI/MDI-X on all ports.
• Store and forward switching architecture.

Product Highlights

This device is essential for expanding your network. It is practical and easy to use, making it a good choice for network setups.

Product Information

Standard Information

• Brand: INTELLINET
• MPN: 560672

Technical Specifications

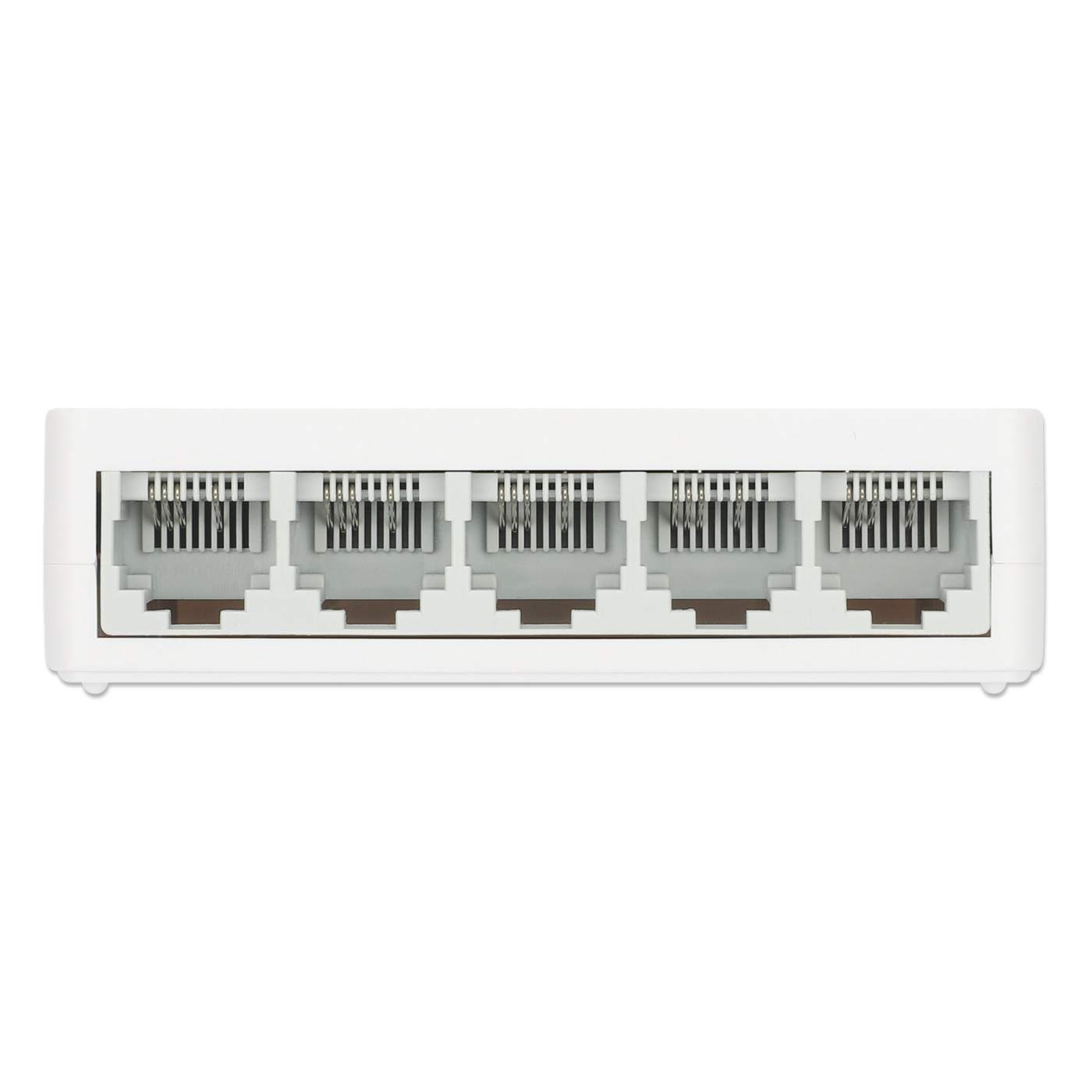

• Ports: 5 10/100 Mbps RJ-45 ports
• Cable Type: Cat3, 4, 5 UTP/STP
• Duplex Modes: Full/Half duplex
• Uplink: Auto MDI/MDI-X
• Switch Architecture: Store and forward
• Filter/Forward Rate: 14,880 pps (10BaseT), 148,800 pps (100Base-TX)
• MAC Address Table: 1024 entries
• Buffer Memory: 128 kBytes
