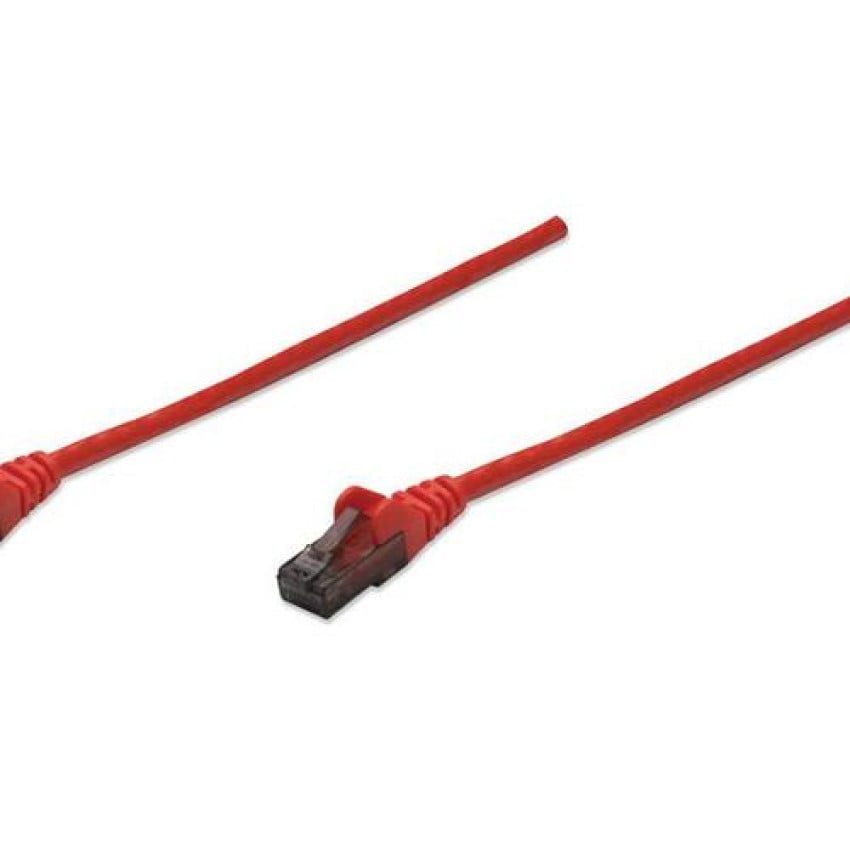

Intellinet 343329 network cable Cat6 UTP 1 ft

Product Description

The INTELLINET 343329 is a Category 6 UTP network patch cable with RJ-45 male connectors on both ends. This 1 ft cable supports up to 10 Gbps data transmissions with frequencies up to 250 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.

• Features booted, snagless, and strain relief design.
• Pure copper cable with gold-plated contacts for conductivity.
• Supports up to 10 Gbps data transmissions.

Product Highlights

This Intellinet Cat6 cable is ideal for high-performance network connections in data centers or server rooms.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 343329
• Country of Origin: Inquire

Technical Specifications

• Network Cable Type: Patch cable - CAT 6
• Technology: UTP
• Wires per Cable: 8 wires
• Pairs per Cable: 4 pairs
• Plated Connector: Gold
• Features: Booted, snagless, strain relief
• Length: 1 ft
• Connector: RJ-45 - male
• Connector (Second End): RJ-45 - male
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Contacts: 6 micro-inch gold-plated
• AWG: 24
• Shielding: U/UTP
• Jacket: PVC CM
• Wire: 100% pure bare copper (Cu)
• Jacket OD: 0.217 in.
• Conductor type: stranded
• Cable type: round
• Operating temperature: 0 – 45°C (32 – 113°F)
• Storage temperature: -10 – 70°C (14 – 158°F)
• Operating humidity (non-condensing): 10 – 90% RH
• Cable Type: Cat6
• Cable Design: Standard
