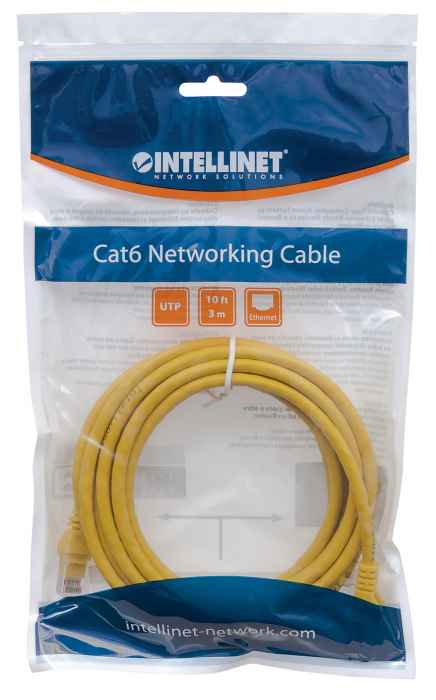

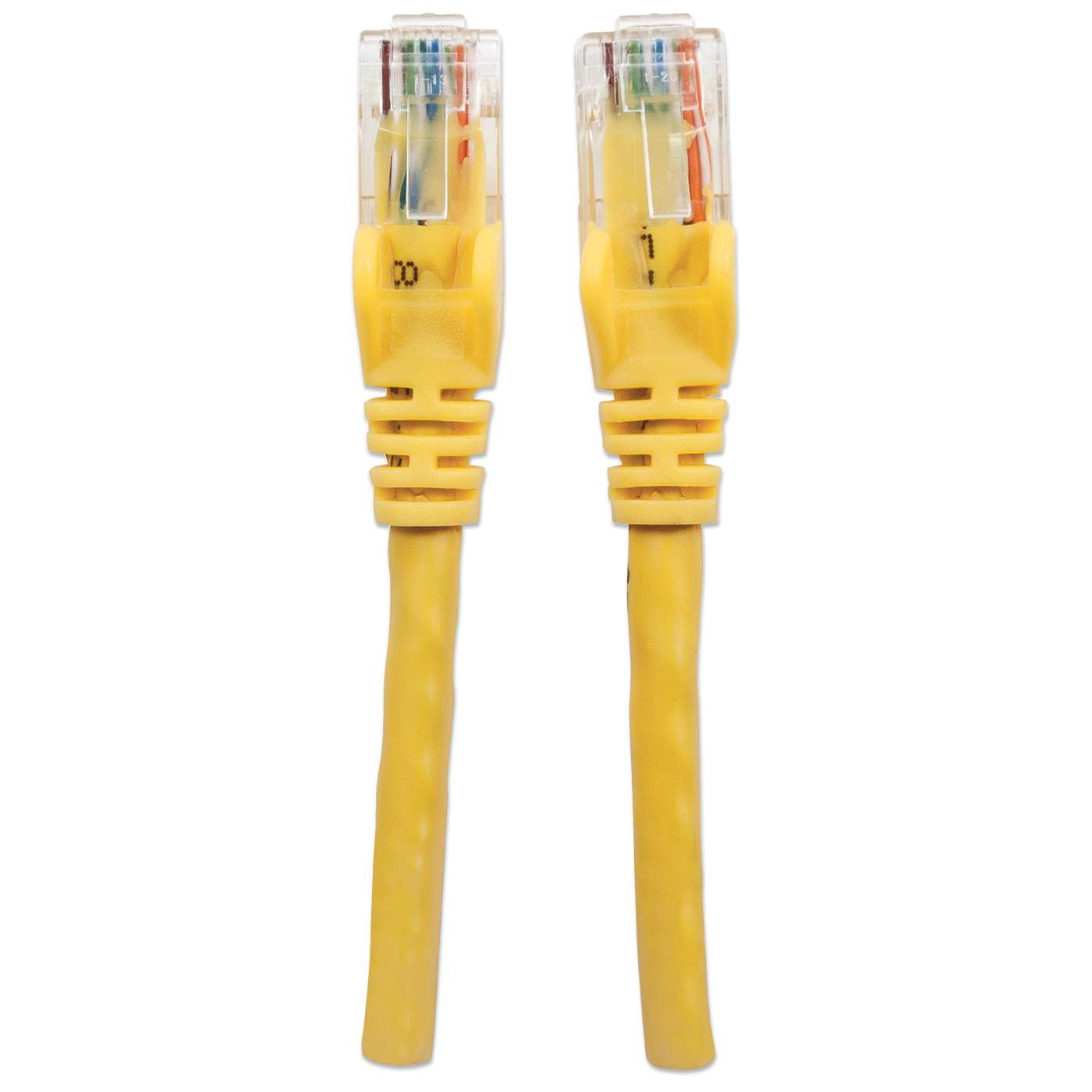

Intellinet 342452 Cat6 U/UTP Network Patch Cable 100 ft.

Product Description

The Intellinet 342452 Cat6 Network Patch Cable establishes high-performance network connections. It supports up to 10 Gbps data transmissions with frequencies up to 250 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Features pure copper cable with gold-plated contacts for conductivity.

• Supports up to 10 Gbps data transmissions with frequencies up to 250 MHz.
• Pure bare copper wire for maximum conductivity.
• Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors.

Product Highlights

This Cat6 U/UTP network patch cable ensures reliable connections for network devices, supporting high-speed data transfer and PoE applications.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342452

Technical Specifications

• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Contacts: 6 micro-inch gold-plated
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: 100% pure bare copper (Cu)
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Length: 100.00' (30.48m)
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
• Features: Molded Plugs
• Style: Cat6
• Wire Type: Cat6
• Side 1: Side 1 RJ-45 Male
• Side 2: Side 2 RJ-45 Male
• Connector Type: RJ45
• Cable Category: Cat6
• Data Transfer Rate: 10/100/1000 Mbps
• Sheath Material: PVC
• Standards Compliance: TIA/EIA standards
