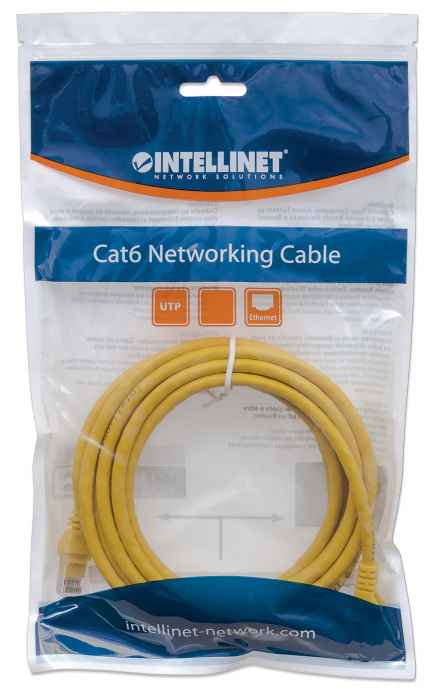

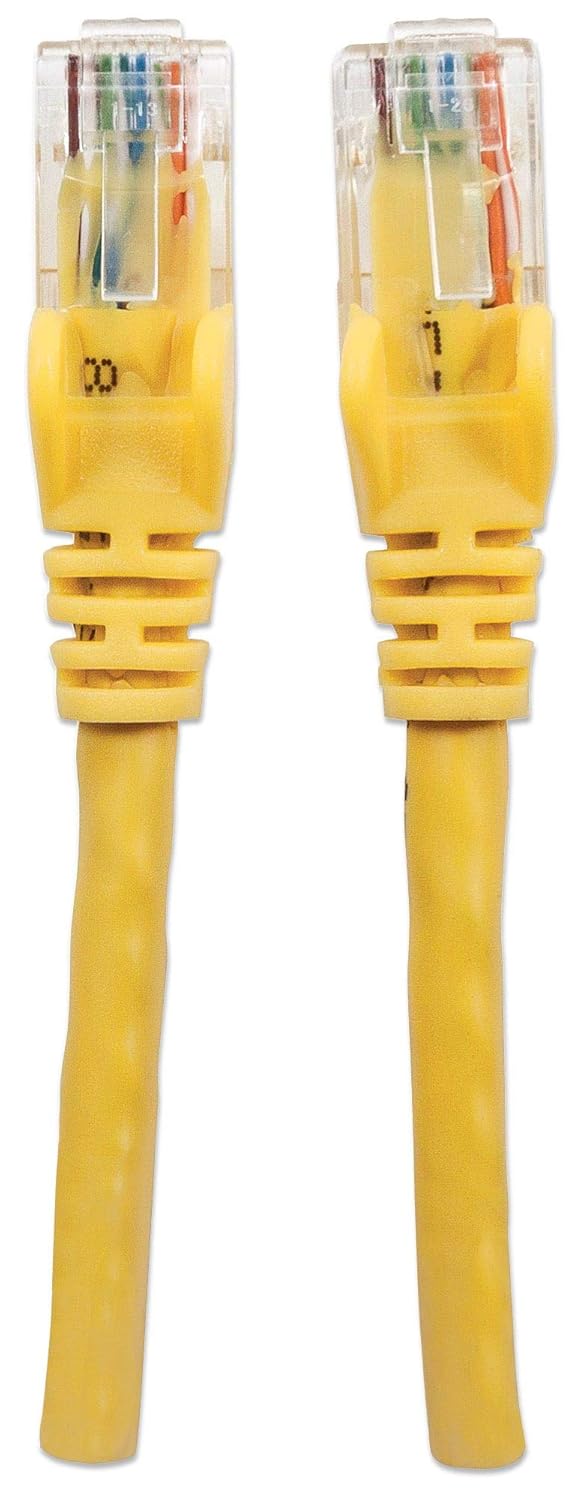

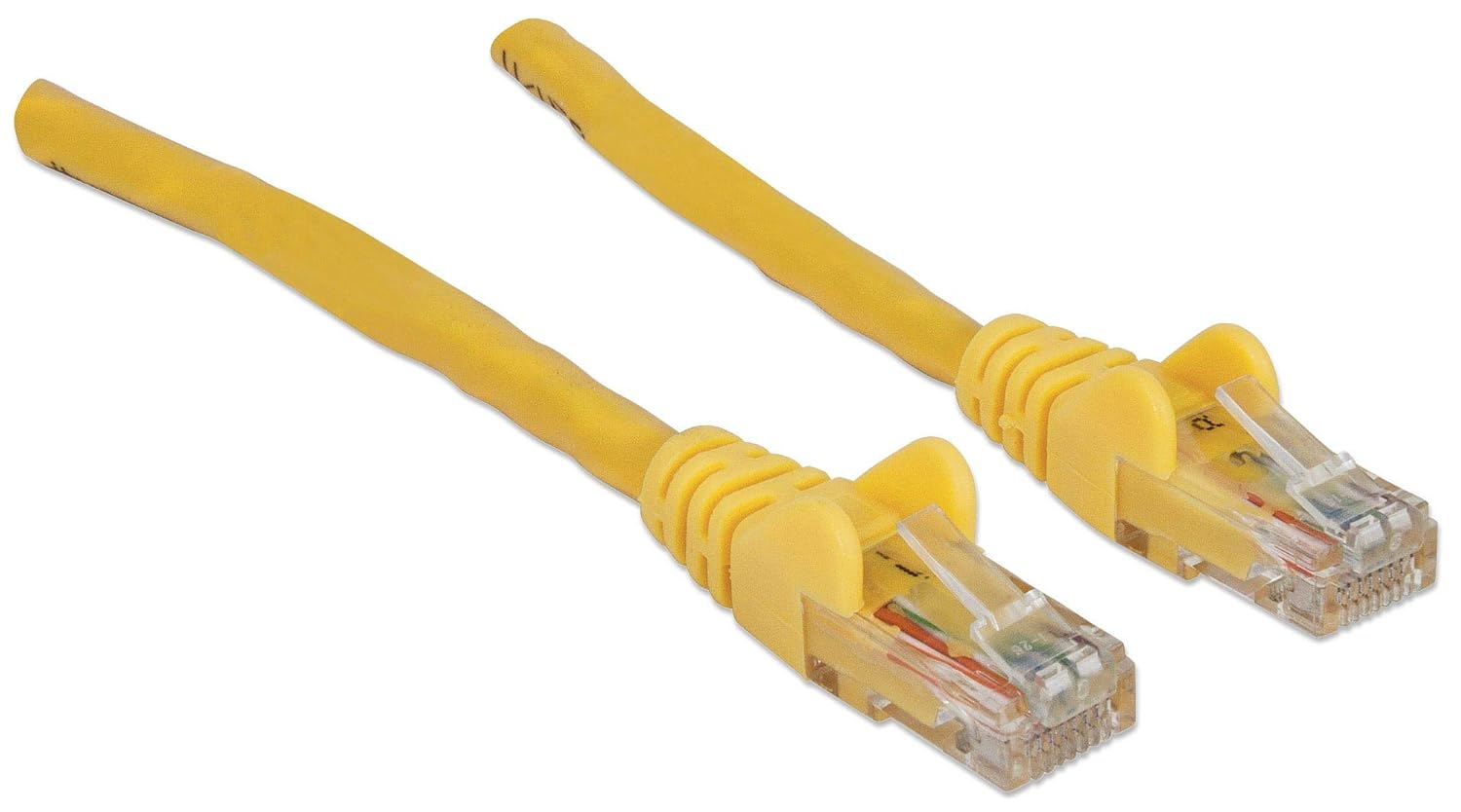

Intellinet 342391 Network Solutions Cat6 RJ-45 Male/RJ-45 Male UTP Network Patch Cable 25-Feet

Product Description

The Intellinet 342391 Cat6 RJ-45 Male/RJ-45 Male UTP Network Patch Cable supports up to 10 Gbps data transmissions with frequencies up to 250 MHz and all PoE applications up to IEEE802.3bt. It features gold-plated contacts and a snag-free boot design, ideal for high-density environments. This cable is compatible with routers, PCs, and modems.

• Supports up to 10 Gbps data transmissions with frequencies up to 250 MHz
• Features gold-plated contacts for corrosion-free connections
• Equipped with snag-free boots to prevent damage to RJ45 connectors

Product Highlights

Cat6 network patch cable with gold-plated contacts and snag-free design, supporting up to 10 Gbps.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342391
• Country of Origin: Taiwan

Technical Specifications

• Cable Type: RJ45 Network Cable
• Connector Type: RJ45
• Compatible Devices: Router, Personal Computer, Modem
• Brand: Intellinet
• Model: 342391
• Network Cable Type: Patch Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
• Length: 7.5 m (25 ft.)
• Manufacturer Stock No.: 342391
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Gold-plated contacts: 6 micro-inch
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Net weight: 173 g (0.38 lbs)
• Gross weight: 180 g (0.4 lbs.)
• Operating temperature: 0 – 45°C (32 – 113°F)
• Storage temperature: -10 – 70°C (14 – 158°F)
• Operating humidity (non-condensing): 10 – 90% RH
• Cable Design: Standard
