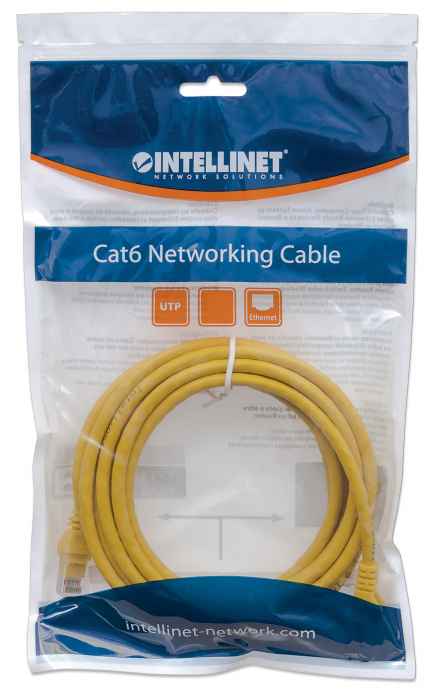

Intellinet 342339 Network Cable, Cat6, UTP 100% Copper, RJ45 Male / RJ45 Male, 0.5 m (1.5 ft.)

Product Description

The Intellinet 342339 Cat6 Patch Cable enables a reliable connection from a network device, such as a switch, modem, or router, to another or to the infrastructure. Designed to meet TIA/EIA standards and suitable for use in 10/100/1000BASE-T networks. The cable features a rugged PVC sheath and molded strain relief to help reduce cable damage and assure full data transfer rates.

• Gold-plated contacts for best connection
• PVC cable jacket for flexibility and durability
• Snag-free boots protect RJ45 connectors

Product Highlights

This Intellinet Cat6 patch cable supports up to 10 Gbps data transmissions with frequencies up to 250 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342339
• Country of Origin: Taiwan R.O.C.

Technical Specifications

• UPC/EAN Code: 766623342339
• Condition: New
• Brand: Intellinet
• NDAA Compliance: Yes
• Wire Type: CAT6
• Length: 1.5'
• Side 1: Side 1 RJ-45 Male
• Side 2: Side 2 RJ-45 Male
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Gold-plated contacts: 6 micro-inch
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• Cable Design: Standard
