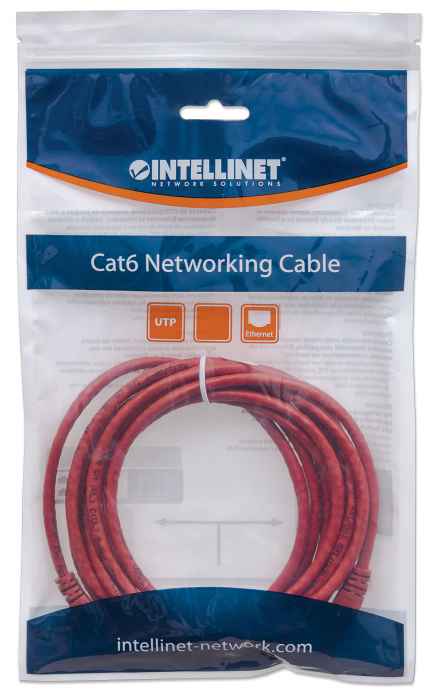

Intellinet 342223 Cat6 U/UTP Network Patch Cable, 30 m (100 ft.)

Product Description

The Intellinet Network Solutions Cat6 Network Patch Cable, MPN 342223, establishes high-performance network connections. It supports up to 10 Gbps data transmissions with frequencies up to 250 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Features pure copper cable with gold-plated contacts for conductivity.

• Supports up to 10 Gbps data transmissions with frequencies up to 250 MHz.
• Pure bare copper wire for maximum conductivity.
• Snag-free boot design for high-density environments.

Product Highlights

This Cat6 patch cable ensures reliable network performance with its robust construction and support for high-speed data transfer and PoE applications.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342223

Technical Specifications

• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Gold-plated contacts: 6 micro-inch
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: 100% pure bare copper (Cu)
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: Round Cable
• Length: 30 m (100 ft.)
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• Manufacturer: Intellinet
• MPN: ICI342223
• Model#: 342223
• UPC Code: 766623342223
• Network Cable Type: Network Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
• Mounting Type: Free Hanging (In-Line)
• Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
• Series: -
• Packaging: Retail Package
• Part Status: Active
• Features: Molded Plugs
• Style: Cat6
