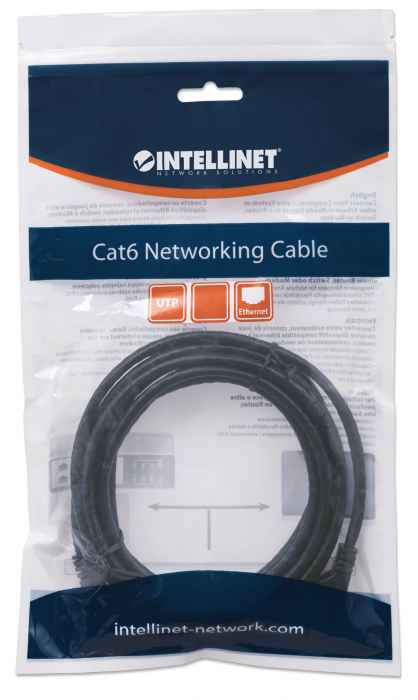

Intellinet 342094 Cat6 RJ-45 Male/RJ-45 Male UTP Network Patch Cable 25-Feet

Product Description

The Intellinet 342094 Cat6 RJ-45 Male/RJ-45 Male UTP Network Patch Cable supports up to 10 Gbps data transmissions with frequencies up to 250 MHz. Gold-plated contacts provide corrosion resistance. The snag-free boot design is ideal for high-density environments, and the cable plugs are equipped with strain relief and a molded boot for protection.

• Supports up to 10 Gbps data transmissions with frequencies up to 250 MHz
• Gold-plated contacts for corrosion-free connections
• Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors

Product Highlights

This Cat6 network patch cable is ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342094
• Country of Origin: Taiwan

Technical Specifications

• Color: Black
• Cable Type: RJ45 Network Cable
• Compatible Devices: Router, Personal Computer, Modem
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Contacts: 6 micro-inch gold-plated
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Length: 7.5 m (25 ft.)
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• MPN: ICI342094
• Model#: 342094
• UPC Code: 766623342094
• Network Cable Type: Patch Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
• Enclosure Color: Black
• Brand: Intellinet
• Manufacturer Stock No.: 342094
