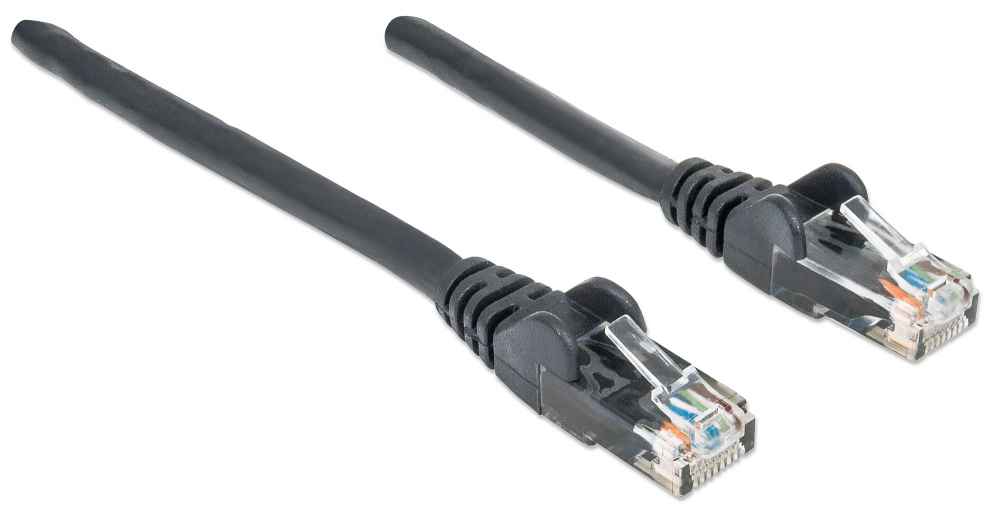

Intellinet 342056 Cat6 RJ-45 Male/RJ-45 Male UTP Network Patch Cable 5-Feet

Product Description

The INTELLINET 342056 Cat6 RJ-45 Male/RJ-45 Male UTP Network Patch Cable connects your computer, game system, or other Ethernet-ready device to a router, switch, or modem. It supports up to 10 Gbps data transmissions with frequencies up to 250 MHz and all PoE applications up to IEEE802.3bt. Gold-plated contacts ensure corrosion-free connections.

• Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, guaranteeing high-speed, error-free transmission
• Gold-Plated Contacts eliminates corrosion and provides maximum conductivity to ensure data integrity
• Unique PVC Jacket with exclusive polymer technology provides unsurpassed durability and flexibility

Product Highlights

This Cat6 UTP patch cable is ideal for HDBaseT and PoE applications, featuring snag-free boots and heavy-duty strain relief for secure and reliable network connections.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342056
• Country of Origin: Taiwan

Technical Specifications

• Brand: Manhattan
• Connector type: RJ45
• Cable type: Ethernet
• Compatible devices: Modem, Personal Computer, Router
• Special feature: High Speed
• Item model number: 342056
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Contacts: 6 micro-inch gold-plated
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Length: 1.5 m (5 ft.)
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• Network Cable Type: Patch Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
