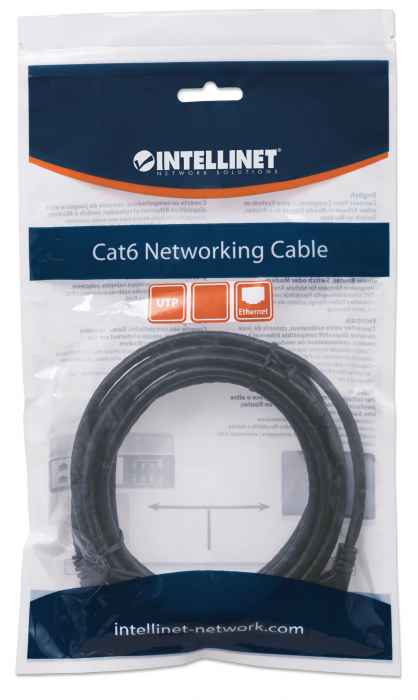

Intellinet 342049 Cat6 U/UTP Network Patch Cable, 1 m (3 ft.)

Product Description

The Intellinet 342049 Cat6 U/UTP Network Patch Cable supports up to 10 Gbps data transmissions with frequencies up to 250 MHz. Supports all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Features gold-plated contacts for conductivity and a snag-free boot design for high-density environments.

• Supports up to 10 Gbps data transmissions with frequencies up to 250 MHz
• Gold-plated contacts for corrosion-free connections
• Snag-free boots to smoothly and easily pull the cable without damaging the RJ45 connectors

Product Highlights

Cat6 cable supports up to 10 Gbps, features gold-plated contacts, and snag-free design.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342049
• Country of Origin: Taiwan

Technical Specifications

• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Contacts: 6 micro-inch gold-plated
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Length: 3.281 feet
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• Manufacturer: Intellinet
• MPN: ICI342049
• Model#: 342049
• UPC Code: 766623342049
• Information: Network Cable Type: Patch Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
• Enclosure Color: Black
• Brand: Intellinet
• Manufacturer Stock No.: 342049
• Cat: 6
• Cable Features: Booted
• Cable Characteristic: Patch Cable
