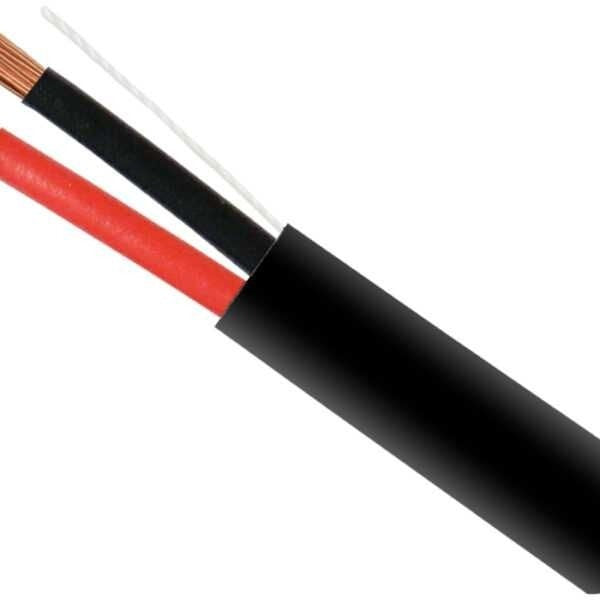

Intellinet 209-2328/db 18/2 Direct Burial Audio Cable 500 Ft

Product Description

The INTELLINET 209-2328/db is an 18 AWG two-conductor stranded audio cable built for direct burial applications. It ships on a 500-foot spool and is designed for long-term outdoor performance in demanding environments. Oxygen-free copper conductors with a high strand count deliver reliable, low-loss signal transmission over extended runs. A durable jacket resists moisture, soil contact, and UV exposure, allowing installation directly underground without the need for conduit. The cable is ETL listed and RoHS compliant, meeting professional installation standards for low-voltage audio and control wiring.

This cable is suited for residential and light commercial outdoor audio installations including landscape speaker systems, outdoor distributed audio, intercom wiring, and low-voltage control circuits. The 500-foot spool length supports large property runs without mid-run splices. Installers working on irrigation-adjacent zones, pathway lighting systems, or multi-zone outdoor audio layouts will find the direct burial rating and spool length practical for continuous underground pulls.

Key Features

• 18 AWG two-conductor stranded construction for flexible handling and reliable signal transfer
• Oxygen-free copper conductors minimize signal loss over long cable runs
• Direct burial rated jacket resists moisture, UV exposure, and soil contact without conduit
• 500-foot spool reduces splicing needs on large outdoor installations
• ETL listed and RoHS compliant for professional low-voltage installations

Compatibility

Designed as a direct burial replacement or new-installation cable for 18 AWG two-conductor low-voltage applications including landscape speakers, outdoor intercom systems, and control circuits.

Installation Notes

Installation should be performed by a qualified low-voltage technician following local codes and NEC low-voltage wiring requirements. Verify burial depth requirements per local jurisdiction before trenching, as minimum depth standards vary for direct burial cable. Terminate connections in weatherproof junction boxes where cable exits the ground to prevent moisture intrusion at splice points. Do not exceed the cable's rated pulling tension during installation to avoid conductor damage.

Technical Specifications

• Conductor Gauge: 18 AWG
• Number of Conductors: 2
• Conductor Type: Stranded, oxygen-free copper
• Cable Length: 500 feet
• Installation Type: Direct burial
• Certifications: ETL listed, RoHS compliant

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 209-2328/db
