Inovate Building Products Dryerbox-480 Model DB-480

Product Description

The INOVATE BUILDING PRODUCTS DRYERBOX-480 Model DB-480 has a larger receiving area to safely collect exhaust hose whether it's entering the wall at floor level or higher up on a pedestal. The uniform corner design allows for venting the recessed connection up or down.

• Most Versatile Model
• Accommodates stand-alone dryers or dryers on a pedestal

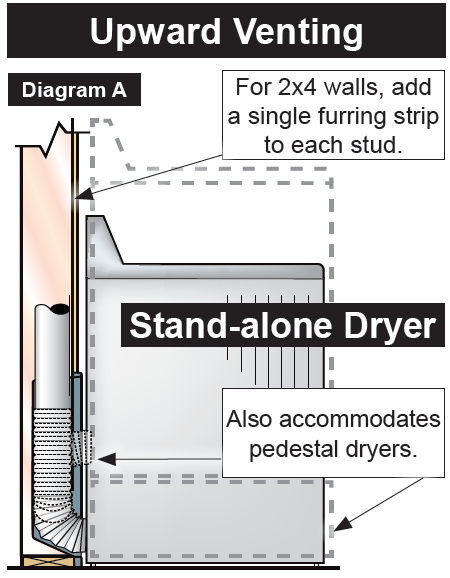

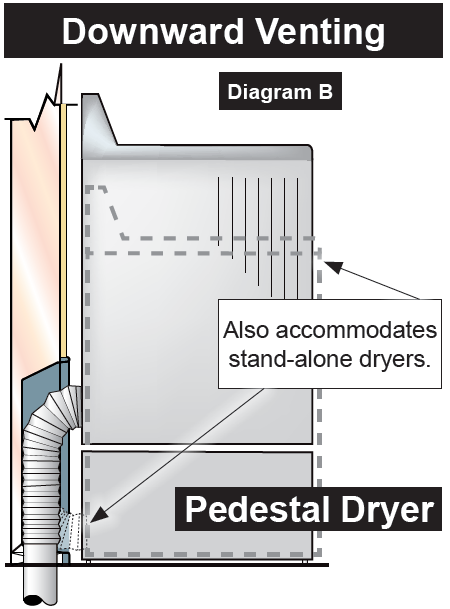

• Uniform corner design allows for venting the recessed connection up or down

Product Highlights

This dryer box is constructed from 22 gauge aluminized steel and measures 23 1/2" h x 17 3/8" w x 5 1/8" deep overall.

Product Information

Standard Information

• Brand: INOVATE BUILDING PRODUCTS
• Manufacturer Part Number: DRYERBOX-480
• Country of Origin: USA

Technical Specifications

• Material: 22 gauge aluminized steel
• Distance from nailing flange to rear of box: 4 1/4"
• Overall measurements: 23 1/2" h x 17 3/8" w x 5 1/8" deep
• Inside measures: 14" wide x 20 1/2" tall
