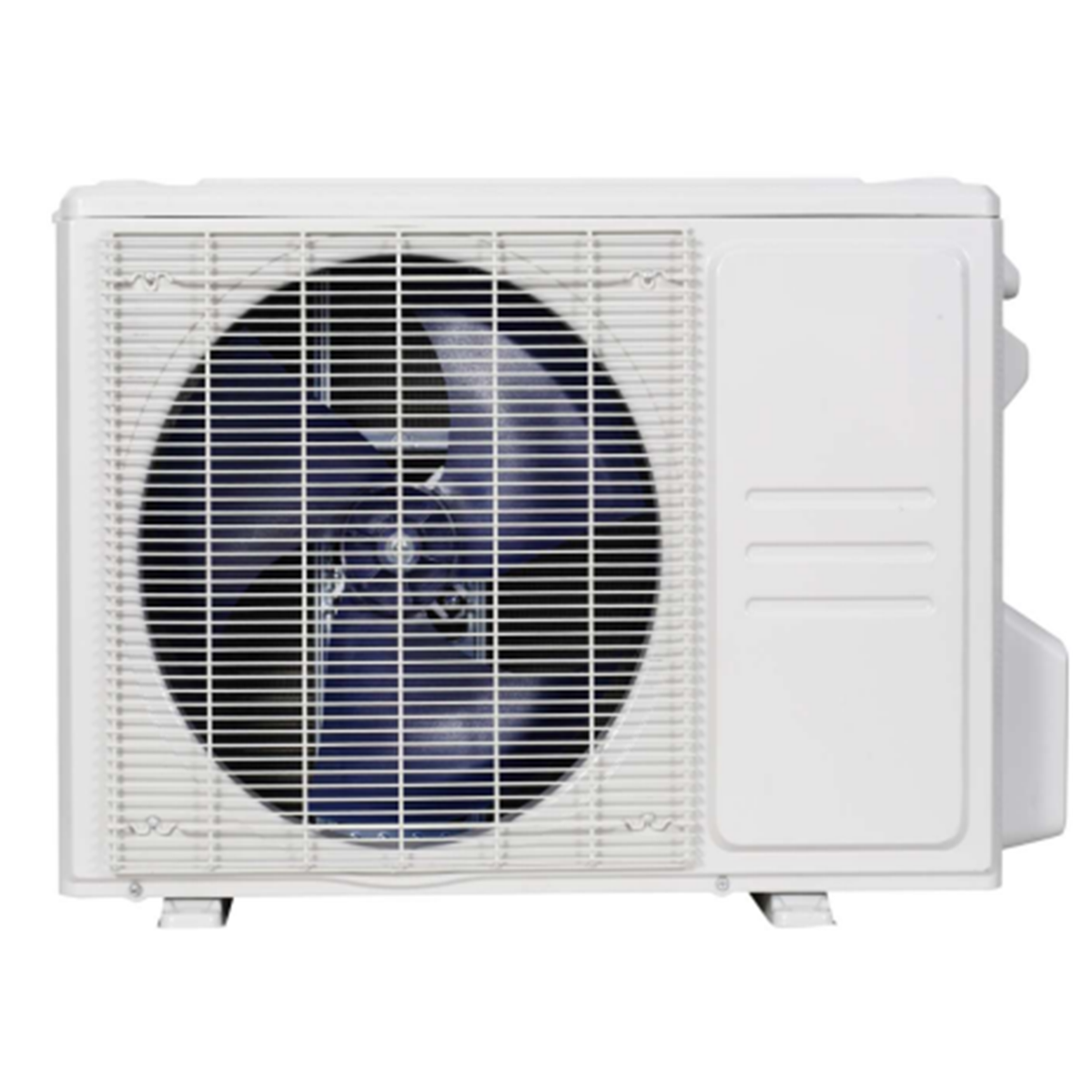

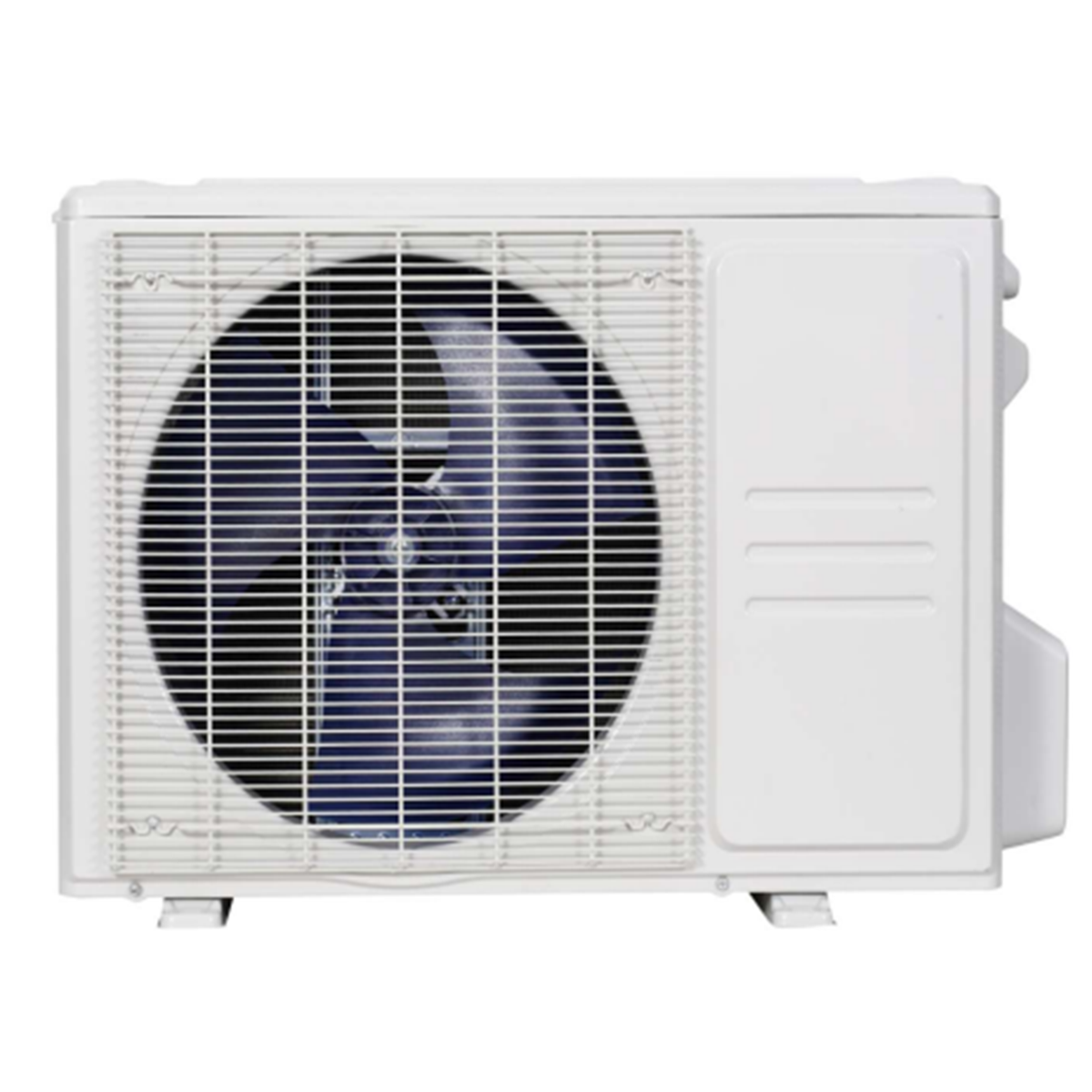

Innovair SOV48H2BA SLIM4 4T HP condenser SD 240v

Product Description

The INNOVAIR SOV48H2BA is a 4-ton SLIM4 Series heat pump condenser designed for efficient heating and cooling applications. Operating on 208/230 V and 1 phase, it utilizes R-454B refrigerant and features a rotary compressor. This unit provides 50000 Btu/hr heating capacity with a 16.5 SEER and 9.5 HSPF rating, suitable for various residential or commercial installations.

• Low GWP and environmentally friendly R-454B refrigerant.
• High Efficiency Inverter Technology for efficient and quiet operation.
• Compatible with most 24 VAC thermostats and AHRI/Energy Star Certified.

Product Highlights

The INNOVAIR SOV48H2BA heat pump condenser offers high efficiency, environmental benefits, and flexible installation with its slim design.

Product Information

Standard Information

• Brand: INNOVAIR
• Manufacturer Part Number: SOV48H2BA

Technical Specifications

• Amperage: 38 A
• Compressor Type: Rotary
• Connection Type: Flared
• EER Rating: 10.5
• Frequency: 60 Hz
• Fuse Amperage: 40 A
• HSPF Rating: 9.5
• Heating BTU Rating: 50000 Btu/hr
• Heating CFM Rating: 3037.1 cfm
• Heating Operating Temperature: -22 to 75 deg F
• Heating Sound Level: 65 dBA
• Liquid Line Size: 3/8 in
• Phase: 1 ph
• Refrigerant Type: R-454B
• SEER Rating: 16.5
• Series: SLIM4 Series
• Suction Line Size: 3/4 in
• Tonnage: 4 ton
• Voltage: 208/230 V
