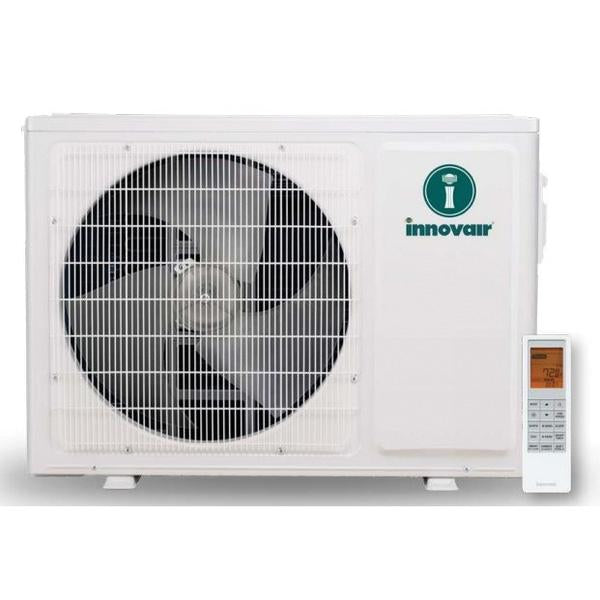

INNOVAIR QOS24H2BM5A High Wall Heat Pump Outdoor Unit 24000 Btu/hr

Product Description

The INNOVAIR QOS24H2BM5A is a high wall heat pump outdoor unit, designed for effective heating and cooling. Operating on 208-230 V, it provides a cooling and heating capacity of 24000 Btu/hr. This unit features an inverter rotary compressor and makes use of environmentally friendly R-454B refrigerant. It is suitable for wall mounting and can operate efficiently even in extreme weather.

• Uses R-454B refrigerant for minimal environmental impact.
• Features advanced inverter technology for enhanced energy efficiency.
• Comes with 4-in-1 filters, including HEPA and Vitamin C options.

Product Highlights

This high wall heat pump is ideal for HVAC applications requiring reliable performance.

Product Information

Standard Information

• Cooling BTU Rating: 24000 Btu/hr
• Heating BTU Rating: 24000 Btu/hr

Technical Specifications

• Amperage Rating: 22 A
• Compressor Type: Inverter, Rotary
• Cooling CFM Rating: 706 cfm
• Cooling Operating Temperature: 5 to 115 deg F
• Cooling Sound Level: 48 dBA
• EER Rating: 12.25
• Frequency Rating: 60 Hz
• Fuse Rating: 35 A
• HSPF Rating: 9.5
• Heating Operating Temperature: -13 to 75 deg F
• Heating Sound Level: 61 dBA
• Liquid Line Size: 1/4 in
• Mounting Type: Wall
• Overall Height: 25.5 in
• Overall Length: 12.25 in
• Overall Width: 34 in
• Phase: 1 ph
• Power Rating: 1954 W
• Refrigerant Type: R-454B
• SEER Rating: 22.5
• Series: Q4 Series
• Suction Line Size: 5/8 in
• Voltage Rating: 208-230 V
